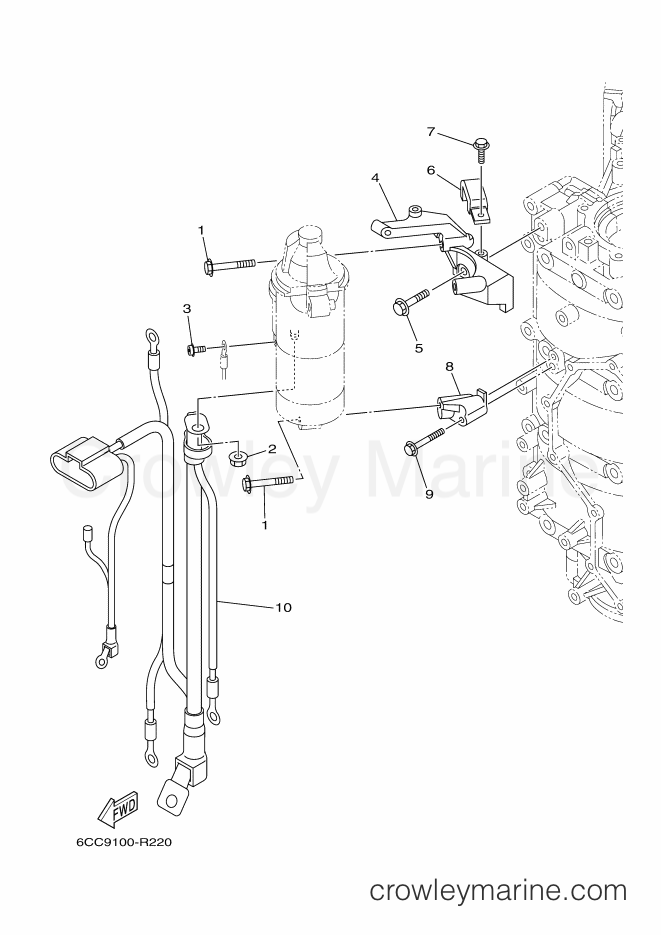

2017 International 250hp - LF250XB-2017 (6HE2) [020] ELECTRICAL 5 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LF250XB-2017 (6HE2) [020] - ELECTRICAL 5
Change View:
Bolt with Washer
1
Yamaha Motors
Bolt with Washer97513-08545-00
Required: 3
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Nut
2
Yamaha Motors
Nut90179-08003-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Screw With Washer
3
Yamaha Motors
Screw With Washer97985-04308-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
Starting Motor Bracket
4
Yamaha Motors
Starting Motor Bracket6CB-81822-02-00
Required: 1
BRACKET, STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$128.50
$102.95
You save $25.55
More details
Lead Clamp
6
Yamaha Motors
Lead Clamp6CB-81443-00-00
Required: 1
CLAMP, LEAD 1
Cross Ship
Leaves in 2-5 days
$11.55
$9.82
You save $1.73
More details
Starting Motor Stay
8
Yamaha Motors
Starting Motor Stay6CB-81823-A0-00
Required: 1
STAY, STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$105.25
$88.95
You save $16.30
More details
Flange Bolt
9
Yamaha Motors
Flange Bolt90105-06151-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
WIRE HARNESS ASSEMBLY
10
Yamaha Motors
WIRE HARNESS ASSEMBLY6CB-8259M-10-00
Required: 1
WIRE HARNESS ASSY 2
Cross Ship
Leaves in 2-5 days
$139.85
$118.87
You save $20.98
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
