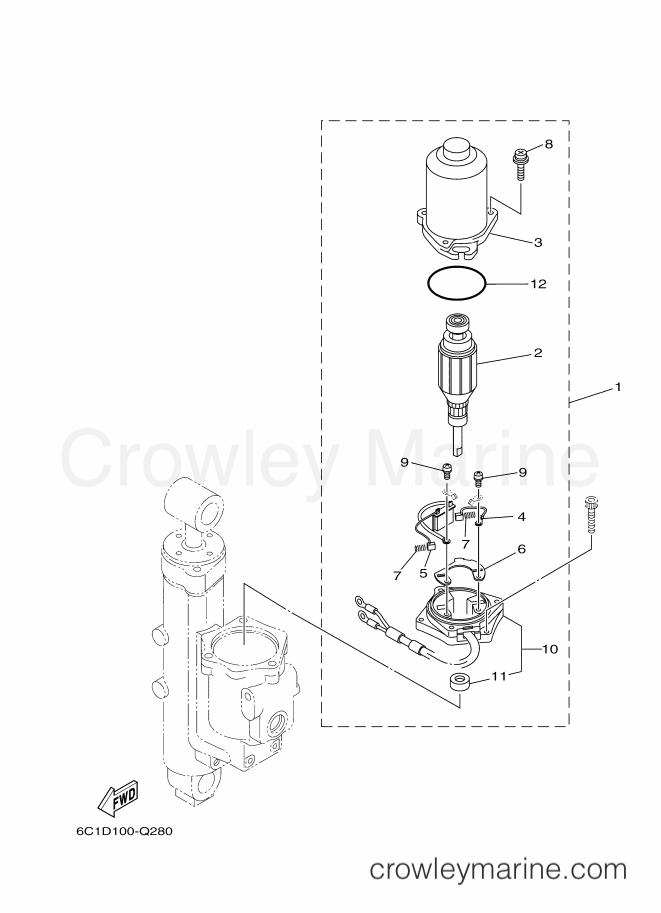

2017 International 50hp - F50HETL (6C1E) [400] COMPONER Y PODER VARILLA 2 diagram
1
Yamaha Motors
MOTOR ASSY6CJ-43880-13-00
Required: 1
MOTOR COMPL.
Supersedes: 6CJ-43880-12-00
$274.59
You save $48.46

2
Yamaha Motors
Armature Assembly6CJ-43805-11-00
Required: 1
. INDUCIDO COMPL.
Supersedes: 6CJ-43805-10-00
$102.94
You save $18.17
In stock
Only 1 remaining
$151.30
You save $26.70

4
Yamaha Motors
Brush6EK-43892-00-00
Required: 1
. ESCOBILLA 2
$4.93
You save $0.87

5
Yamaha Motors
Circuit Breaker Comp6CJ-82181-10-00
Required: 1
. RUPTOR DE CIRCUITO COMPL
$64.90
You save $11.45
$6.25
You save $1.10

7
Yamaha Motors
Brush Spring62X-4386K-00-00
Required: 2
. RESORTE, ESCOBILLA
$5.44
You save $0.96

8
Yamaha Motors
Screw With Washer6CJ-43879-10-00
Required: 3
. TORNILLO CON RONDANA
$2.29
You save $0.41

9
Yamaha Motors
Pan Head Screw With Washer97602-04316-00
Required: 2
. TORNILLO CON RONDONA
$1.74
You save $0.31

10
Yamaha Motors
END FRAME6CJ-43881-10-00
Required: 1
. CUADRO EXTERMO
$153.21
You save $27.04

11
Yamaha Motors
Oil Seal6EK-43882-00-00
Required: 1
. . SELLO ACEITE
$4.29
You save $0.76

12
Yamaha Motors
O-Ring6CJ-43862-10-00
Required: 1
. ANILLO EN O 2
$3.65
You save $0.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



![Yamaha Motors F50HETL (6C1E) [400] - COMPONER Y PODER VARILLA 2](https://cdn.crowleymarine.com/yamaha/IwsxbvUg.png)
