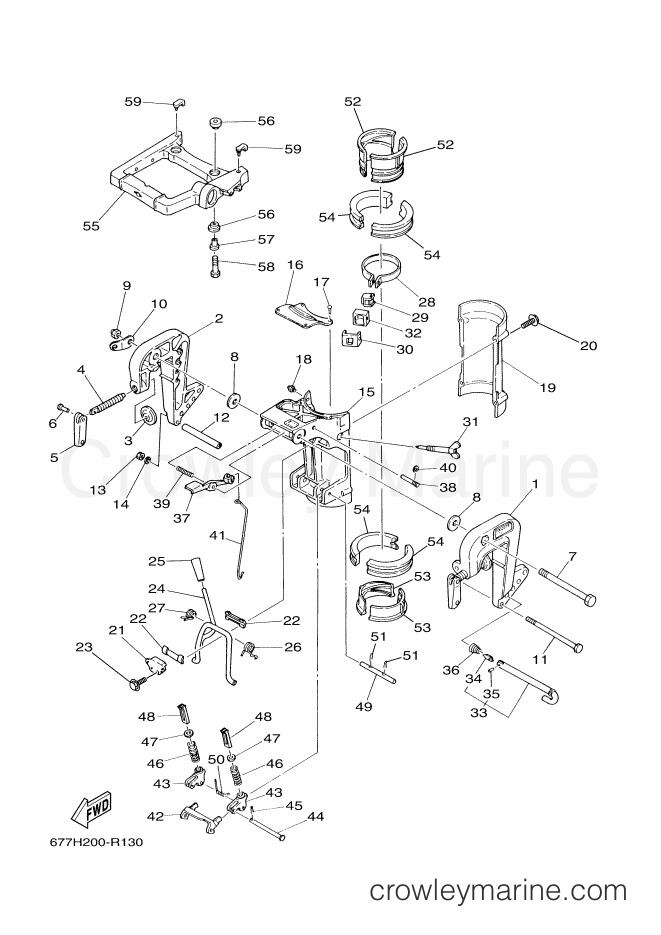

2017 International 8hp - E8DMH (677H) [040] BRACKET diagram
![Yamaha Motors E8DMH (677H) [040] - BRACKET](https://cdn.crowleymarine.com/yamaha/vzITZy5t.png)
1
Required: 1
BRACKET, CLAMP 1
Price unavailable
2
Required: 1
BRACKET, CLAMP 2
Price unavailable
3
Yamaha Motors
Transom Clamp Pad648-43114-01-00
Required: 2
PAD, TRANSOM CLAMP
Supersedes: 620-43114-00-00
In stock
Only 2 remaining
$12.07
You save $2.13
4
Yamaha Motors
Transom Clamp Screw677-43116-01-00
Required: 2
SCREW, TRANSOM CLAMP
$18.66
You save $3.29
5
Yamaha Motors
Transom Clamp Handle663-43118-01-8D
Required: 2
HANDLE, TRANSOM CLAMP
$14.53
You save $2.56
$5.44
You save $0.96
7
Required: 1
BOLT
Price unavailable
8
Required: 2
WASHER, PLATE
Price unavailable
9
Yamaha Motors
Self-Locking Nut90185-10027-00
Required: 1
NUT, SELF-LOCKING
In stock
5+ in stock
$2.04
You save $0.36
10
Yamaha Motors
Clamp Bracket Plate6E7-43113-01-00
Required: 1
PLATE, CLAMP BRACKET
$7.31
You save $1.29
11
Required: 1
BOLT
Price unavailable
$11.26
You save $1.99
In stock
5+ in stock
$4.08
You save $0.72
14
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
15
Required: 1
BRACKET, SWIVEL 1
Price unavailable
16
Required: 1
COVER
Price unavailable
$2.72
You save $0.48
18
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
19
Required: 1
BRACKET, SWIVEL 2
Price unavailable
20
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06540-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97595-06540-00
$1.49
You save $0.26
21
Required: 1
BRACKET, SWIVEL 3
Price unavailable
$11.47
You save $2.03
23
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06525-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06525-00
$0.85
You save $0.15
24
Required: 1
LEVER, TILT STOP 1
Price unavailable
25
Required: 1
KNOB, TILT
Price unavailable
26
Yamaha Motors
Torsion Spring90508-16021-00
Required: 1
SPRING, TORSION
$7.31
You save $1.29
27
Yamaha Motors
Torsion Spring90508-16020-00
Required: 1
SPRING, TORSION
In stock
Only 1 remaining
$7.31
You save $1.29
28
Required: 1
PLATE, FRICTION
Price unavailable
29
Required: 1
PLATE, FRICTION
Price unavailable
30
Required: 1
PLATE, FRICTION
Price unavailable
31
Required: 1
SCREW, FRICTION PIECE
Price unavailable
32
Required: 1
COVER
Price unavailable
33
Required: 1
TILT ROD ASSY
Price unavailable
34
Yamaha Motors
Tilt Lock Plate689-43165-00-00
Required: 1
. PLATE, TILT LOCK
$6.54
You save $1.16
35
Yamaha Motors
Spring Pin91690-30008-00
Required: 1
. PIN, SPRING
$8.92
You save $1.57
36
Yamaha Motors
Conical Spring90502-10M07-00
Required: 1
SPRING, CONICAL
$3.02
You save $0.53
37
Required: 1
TILT LEVER ASSY
Price unavailable
38
Required: 1
PIN
Price unavailable
39
Required: 1
SPRING, COMPRESSION
Price unavailable
40
Yamaha Motors
Clip99080-04600-00
Required: 1
CIRCLIP
Supersedes: 99001-04600-00
In stock
Only 3 remaining
$1.69
You save $0.30
41
Required: 1
ROD, TILT LOCK
Price unavailable
42
Required: 1
PLATE, TILT LOCK
Price unavailable
43
Required: 2
PLATE, TILT LOCK
Price unavailable
44
Required: 1
PIN, CLEVIS
Price unavailable
$6.08
You save $1.07
46
Required: 2
SPRING, COMPRESSION
Price unavailable
47
Required: 2
STOPPER
Price unavailable
48
Required: 2
ARM, TILT LOCK
Price unavailable
49
Required: 1
SHAFT, REVERSE LOCK
Price unavailable
50
Required: 1
SPRING, TORSION
Price unavailable
$2.46
You save $0.44
52
Required: 2
BUSHING, PIVOT SHAFT
Price unavailable
53
Required: 2
BUSHING, PIVOT SHAFT
Price unavailable
54
Required: 4
BUSHING, PIVOT SHAFT
Price unavailable
55
Required: 1
BRACKET, STEERING
Price unavailable
56
Required: 4
DAMPER
Price unavailable
57
Required: 2
PIPE
Price unavailable
58
Yamaha Motors
Bolt97095-08035-00
Required: 2
BOLT
Supersedes: 97075-08035-00
In stock
5+ in stock
$4.67
You save $0.82
59
Yamaha Motors
Friction Spacer647-42523-00-00
Required: 2
SPACER, FRICTION
$5.61
You save $0.99
