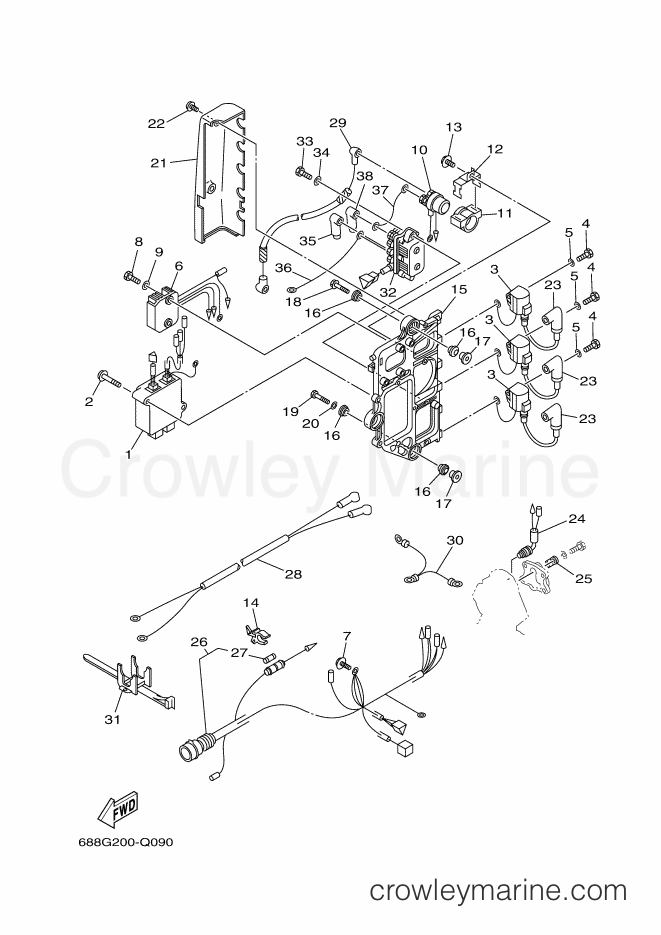

2016 International 85hp - 85AEHDL (688G) [370] ELECTRICAL 1 diagram
![Yamaha Motors 85AEHDL (688G) [370] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/LrTARpzx.png)
1
Yamaha Motors
C.D.I. UNIT Assembly688-85540-00-00
Required: 1
C.D.I. UNIT ASSY
$507.45
You save $89.55
2
Required: 2
SCREW, WITH WASHER
Price unavailable
3
Yamaha Motors
Ignition Coil Assembly697-85570-00-00
Required: 3
IGNITION COIL ASSY
In stock
5+ in stock
$79.95
You save $20.55
4
Yamaha Motors
Bolt97080-06020-00
Required: 3
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.60
You save $0.90
5
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
6
Yamaha Motors
Rectifier & Regulator Assembly6H0-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
$133.83
You save $23.62
-50%
7
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.03
You save $1.03
8
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.60
You save $0.90
9
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
10
Yamaha Motors
Starter Relay6G1-81941-10-00
Required: 1
STARTER RELAY ASSY
In stock
5+ in stock
$70.44
You save $17.61
11
Yamaha Motors
HOLDER, RELAY6G1-81952-01-00
Required: 1
HOLDER, RELAY
Supersedes: 6G1-81952-00-00
$11.36
You save $2.84
12
Yamaha Motors
Switch Fitting Plate6E9-81945-70-00
Required: 1
PLATE, SWITCH FITTING
$36.17
You save $6.38
13
Yamaha Motors
Bolt with Washer97513-06516-00
Required: 1
BOLT, WITH WASHER
$2.54
You save $-0.59
$6.08
You save $1.07
15
Required: 1
BRACKET
Price unavailable
$6.08
You save $1.07
$8.32
You save $2.08
-50%
18
Yamaha Motors
Bolt with Washer90119-06293-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06M75-00
In stock
Only 1 remaining
$2.10
You save $2.10
$1.91
You save $0.34
20
Yamaha Motors
Plate Washer90201-06M31-00
Required: 1
WASHER, PLATE
In stock
Only 5 remaining
$2.76
You save $0.69
21
Yamaha Motors
Terminal Cover6H1-81916-00-00
Required: 1
COVER, TERMINAL
In stock
Only 1 remaining
$14.00
You save $3.50
22
Yamaha Motors
Screw With Washer90159-06M11-00
Required: 2
SCREW, WITH WASHER
In stock
Only 4 remaining
$2.56
You save $0.64
In stock
Only 3 remaining
$28.52
You save $7.13
In stock
5+ in stock
$12.52
You save $3.13
24
Yamaha Motors
Thermo Switch Assembly688-82560-10-00
Required: 1
THERMO SWITCH ASSY
In stock
5+ in stock
$39.08
You save $9.77
$8.59
You save $1.52
26
Required: 1
WIRE HARNESS ASSY (7P)
Price unavailable
26
Required: 1
WIRE HARNESS ASSY (10P)
Price unavailable
26
Yamaha Motors
WIRE HARNESS ASSY688-82590-1A-00
Required: 1
WIRE HARNESS ASSY (10P)
Supersedes: 688-82590-17-00
$225.59
You save $39.81
27
Yamaha Motors
Fuse (12V/10A)682-82151-01-00
Required: 1
. FUSE (12V-20A)
Supersedes: 663-82151-00-00
$3.15
You save $-0.60
28
Required: 1
BATTERY CABLE
Price unavailable
29
Yamaha Motors
WIRE LEAD6H0-82117-01-00
Required: 1
WIRE, LEAD
Supersedes: 6H0-82117-00-00
$34.30
You save $6.05
30
Yamaha Motors
Earth Lead Wire697-82519-00-00
Required: 1
WIRE, EARTH LEAD
$12.07
You save $2.13
$9.82
You save $1.73
32
Yamaha Motors
Relay Assembly61A-81950-01-00
Required: 1
RELAY ASSY
Supersedes: 61A-81950-00-00
In stock
Only 3 remaining
$215.95
You save $54.30
$2.85
You save $0.50
34
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
-50%
35
Yamaha Motors
Lead Wire Cover6G5-82119-10-00
Required: 2
COVER, LEAD WIRE
Supersedes: 682-82119-01-00
In stock
Only 2 remaining
$5.20
You save $5.20
36
Yamaha Motors
LEAD WIRE6H2-81949-12-00
Required: 1
WIRE, LEAD
Supersedes: 6H0-81949-10-00
$15.38
You save $2.71
37
Yamaha Motors
Lead Wire6H2-81949-01-00
Required: 1
WIRE, LEAD
Supersedes: 6H0-81949-01-00
$9.95
You save $1.76
-50%
38
Yamaha Motors
Lead Wire Cover6G5-82119-10-00
Required: 1
COVER, LEAD WIRE
Supersedes: 682-82119-01-00
In stock
Only 2 remaining
$5.20
You save $5.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
