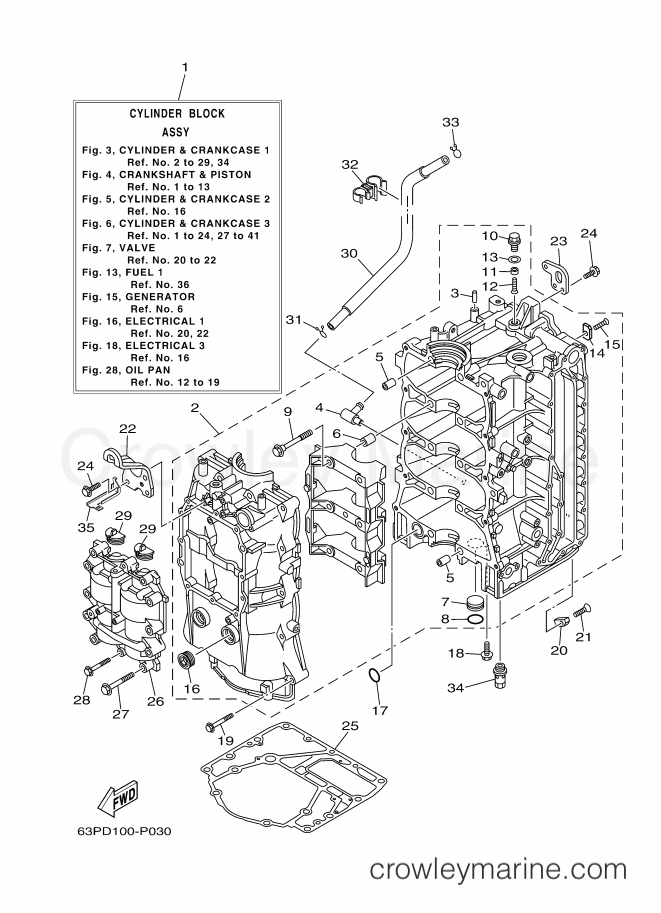

2015 International 150hp - F150B (63PD) [310] CYLINDER & CRANKCASE 1 diagram

1
Yamaha Motors
CYLINDER BLOCK ASSY63P-W009B-16-9S
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 63P-W009B-12-9S
$7452.21
You save $1315.10
$3394.18
You save $598.97

3
Yamaha Motors
Dowel Pin93606-12019-00
Required: 1
. PIN, DOWEL
In stock
5+ in stock
$3.91
You save $0.69

4
Yamaha Motors
Hose Nipple63P-11372-00-00
Required: 1
. NIPPLE, HOSE
$30.68
You save $5.42

5
Yamaha Motors
Dowel Pin91814-18002-00
Required: 4
. PIN, DOWEL
$3.74
You save $0.66

6
Yamaha Motors
Dowel Pin91814-18002-00
Required: 6
. PIN, DOWEL
$3.74
You save $0.66
$10.45
You save $1.85
$3.10
You save $0.55

9
Yamaha Motors
Flange Bolt90105-10071-00
Required: 10
. BOLT, FLANGE
$12.03
You save $2.12

10
Yamaha Motors
Blind Plug63P-11197-00-00
Required: 1
. PLUG, BLIND
Supersedes: 63P-11197-A0-00
In stock
Only 2 remaining
$23.08
You save $4.07
In stock
Only 1 remaining
$8.97
You save $1.58

12
Yamaha Motors
Flat Head Screw98780-05016-00
Required: 1
. SCREW, FLAT HEAD
In stock
5+ in stock
$2.72
You save $0.48
In stock
Only 2 remaining
$2.55
You save $0.45
In stock
5+ in stock
$8.97
You save $1.58

15
Yamaha Motors
Countersunk Screw90151-06M02-00
Required: 4
. SCREW, COUNTERSUNK
$3.02
You save $0.53

16
Yamaha Motors
Straight Screw Plug90340-27129-00
Required: 2
. PLUG, STRAIGHT SCREW
$4.76
You save $0.84
In stock
5+ in stock
$12.32
You save $2.17

18
Yamaha Motors
Bolt with Washer90119-06276-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06M81-00
In stock
Only 4 remaining
$5.23
You save $0.92

19
Yamaha Motors
Bolt w/ Washer90119-08M66-00
Required: 10
BOLT, WITH WASHER
In stock
Only 3 remaining
$3.10
You save $0.55
In stock
Only 5 remaining
$8.97
You save $1.58

21
Yamaha Motors
Countersunk Screw90151-06M02-00
Required: 1
SCREW, COUNTERSUNK
$3.02
You save $0.53

22
Yamaha Motors
Engine Hanger63P-11119-00-00
Required: 1
HANGER, ENGINE
$57.50
You save $10.15

23
Yamaha Motors
Engine Hanger63P-11119-10-00
Required: 1
HANGER, ENGINE
In stock
Only 1 remaining
$9.82
You save $1.73

24
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 5
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48

25
Yamaha Motors
GASKET, CYLINDER63P-11351-04-00
Required: 1
GASKET, CYLINDER
Supersedes: 63P-11351-02-00
In stock
Only 3 remaining
$112.71
You save $19.89
In stock
5+ in stock
$461.89
You save $81.51

27
Yamaha Motors
Bolt w/ Washer90119-08M66-00
Required: 10
BOLT, WITH WASHER
In stock
Only 3 remaining
$3.10
You save $0.55

28
Yamaha Motors
Bolt with Washer90119-06MA6-00
Required: 2
BOLT, WITH WASHER
In stock
Only 2 remaining
$3.91
You save $0.69

29
Yamaha Motors
Crank Cover Seal63P-11512-00-00
Required: 2
SEAL, CRANK COVER
$7.31
You save $1.29
$34.55
You save $6.10
$2.93
You save $0.52
$5.74
You save $1.01
$2.93
You save $0.52
34
Yamaha Motors
Relief Valve Assembly63P-13490-00-00
Required: 1
RELIEF VALVE ASSY
$137.96
You save $24.34
$6.46
You save $1.14
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
