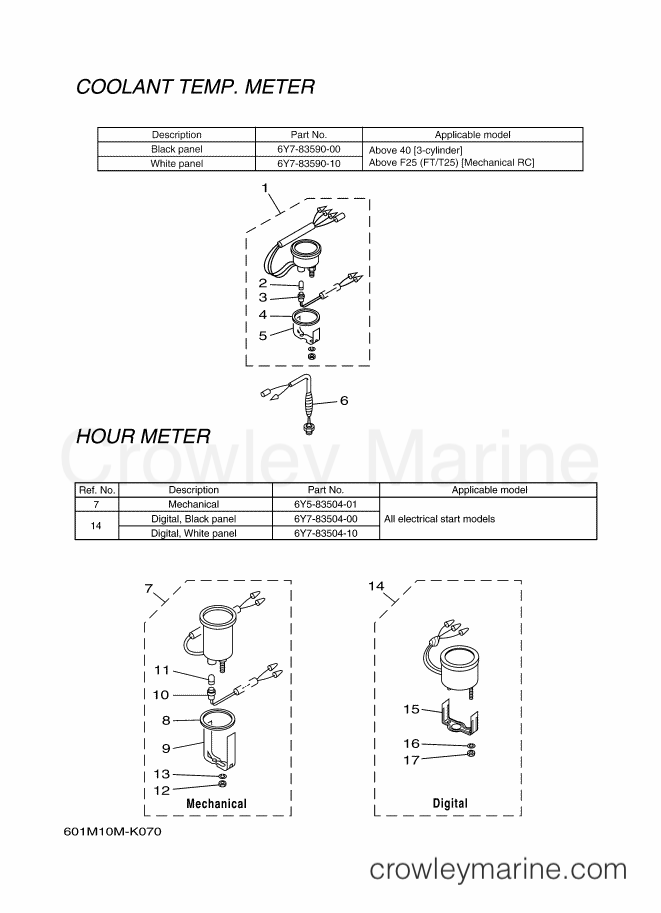

2013 International RIGGING - RIGGING METER 2013 (601M) [010] METER 7 diagram

1
Yamaha Motors
PRO SERIES II WTR TEMP (WHT)6Y7-83590-11-00
Required: 1
WATER TEMPERATURE ASSY
Supersedes: 6Y7-83590-10-00
$84.15
You save $14.85

1
Yamaha Motors
PRO SERIES II WTR TEMP (BLK)6Y7-83590-01-00
Required: 1
WATER TEMPERATURE ASSY
Supersedes: 6Y7-83590-00-00
$84.15
You save $14.85

2
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 1
. BULB (12V-1.7W T6.5)
Supersedes: 6Y5-83518-00-00
$8.07
You save $1.42

3
Yamaha Motors
Meter Socket6Y5-83536-00-00
Required: 1
. SOCKET, METER
$11.47
You save $2.03
$5.61
You save $0.99

5
Yamaha Motors
Fitting Plate6Y5-83544-00-00
Required: 1
. PLATE, FITTING
$11.94
You save $2.11
$67.15
You save $11.85

7
Yamaha Motors
Hour Meter Assembly6Y5-83504-01-00
Required: 1
HOUR METER ASSY
$155.55
You save $27.45
$5.61
You save $0.99

9
Yamaha Motors
Fitting Plate6Y5-83577-00-00
Required: 1
. PLATE, FITTING
$9.78
You save $1.72

10
Yamaha Motors
Meter Socket6Y5-83536-00-00
Required: 1
. SOCKET, METER
$11.47
You save $2.03

11
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 1
. BULB (12V-1.7W T6.5)
Supersedes: 6Y5-83518-00-00
$8.07
You save $1.42
In stock
Only 4 remaining
$4.04
You save $0.71

13
Yamaha Motors
Spring Washer92990-04100-00
Required: 2
. WASHER, SPRING
In stock
5+ in stock
$0.81
You save $0.14
$128.35
You save $22.65
In stock
Only 1 remaining
$128.35
You save $22.65

15
Yamaha Motors
Meter Bracket6Y5-8355X-H0-00
Required: 1
. BRACKET, METER 1
$12.54
You save $2.21

16
Yamaha Motors
Spring Washer92990-04100-00
Required: 2
. WASHER, SPRING
In stock
5+ in stock
$0.81
You save $0.14

17
Yamaha Motors
Nut95303-04600-00
Required: 2
. NUT
Supersedes: 95380-04600-00
In stock
Only 4 remaining
$4.04
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



![Yamaha Motors RIGGING METER 2013 (601M) [010] - METER 7](https://cdn.crowleymarine.com/yamaha/xgWfkfXy.png)
