All diagrams for this model

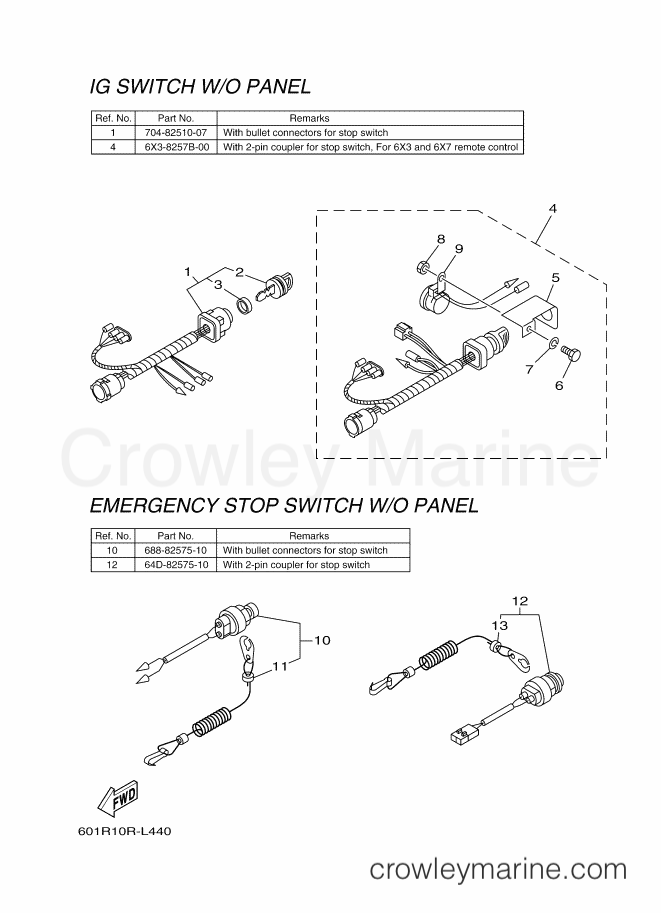

2012 International RIGGING - RIGGING REMOCON-2012 (601R) [010] SWITCH & PANEL 19 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RIGGING REMOCON-2012 (601R) [010] - SWITCH & PANEL 19
Change View:
Main Switch Assembly TE, TP
1
Yamaha Motors
Main Switch Assembly TE, TP704-82510-0B-00
Required: 1
MAIN SWITCH ASSY
Supersedes: 704-82510-07-00
Cross Ship
Leaves in 2-5 days
$213.40
$181.39
You save $32.01
More details
MAIN SWITCH W DUPLEX CON
4
Yamaha Motors
MAIN SWITCH W DUPLEX CON6X3-8257B-02-00
Required: 1
PANEL SWITCH COMP.
Supersedes: 6X3-8257B-00-00
Cross Ship
Leaves in 2-5 days
$139.00
$118.15
You save $20.85
More details
Cord Clamp Stator Assembly
5
Yamaha Motors
Cord Clamp Stator Assembly64D-82581-00-00
Required: 1
. STAY, CORD CLAMP
Cross Ship
Leaves in 2-5 days
$25.00
$21.25
You save $3.75
More details
BOLT
6
Yamaha Motors
BOLT97080-05012-00
Required: 1
. BOLT
Supersedes: 97303-05012-00
Cross Ship
Leaves in 2-5 days
$0.90
$0.76
You save $0.14
More details
Buzzer
9
Yamaha Motors
Buzzer6R5-83383-00-00
Required: 1
. BUZZER
Cross Ship
Leaves in 2-5 days
$56.25
$47.81
You save $8.44
More details
Engine Stop Switch Assembly
10
Yamaha Motors
Engine Stop Switch Assembly688-82575-12-00
Required: 1
ENGINE STOP SWITCH ASSY
Supersedes: 688-82575-10-00
Cross Ship
Leaves in 2-5 days
$50.10
$42.59
You save $7.52
More details
ENGINE STOP SWITCH ASSY
12
Yamaha Motors
ENGINE STOP SWITCH ASSY64D-82575-11-00
Required: 1
ENGINE STOP SWITCH ASSY
Supersedes: 64D-82575-10-00
Cross Ship
Leaves in 2-5 days
$56.00
$47.60
You save $8.40
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
