2012 International 60hp - E60HMHD (69DB) [020] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

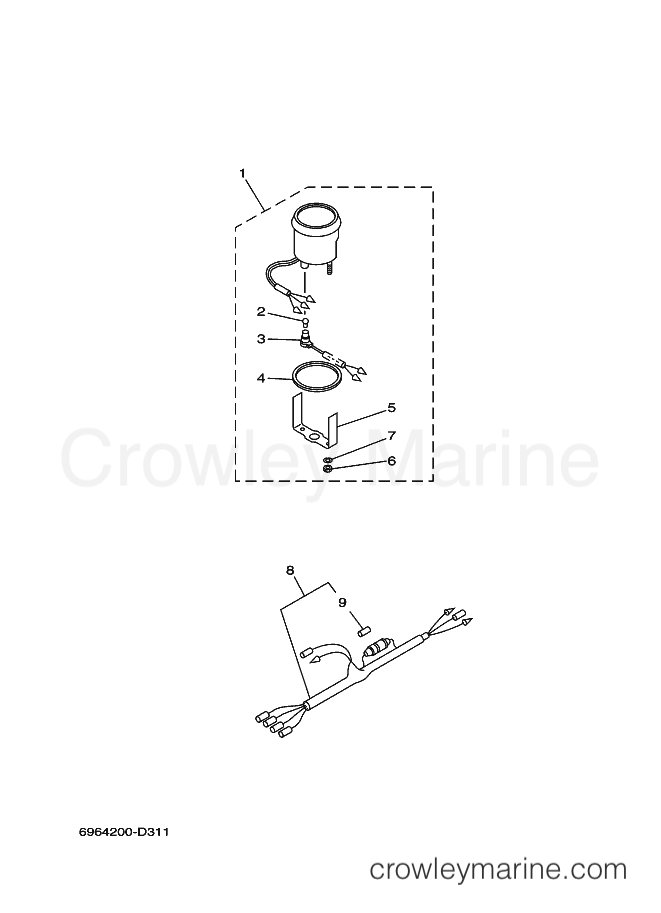

Yamaha Motors E60HMHD (69DB) [020] - METER

Change View:

Yamaha Motors

TACHOMETER ASSY6Y7-W835A-22-00

Required: 1

TACHOMETER ASSY

Supersedes: 6Y7-83540-20-00

~~$348.00~~

$295.80

You save $52.20

More details

Yamaha Motors

Obsolete Yamaha Part3GM-83517-00-00

Required: 1

. BULB (T10, 12V-1.7W)

Supersedes: 6Y5-83517-00-00

~~$8.49~~

$7.22

You save $1.27

More details

Yamaha Motors

Meter Socket6Y5-83536-40-00

Required: 1

. SOCKET, METER

~~$12.30~~

$10.45

You save $1.85

More details

Yamaha Motors

Damper6Y5-83523-00-00

Required: 1

. DAMPER

~~$9.10~~

$7.73

You save $1.37

More details

Yamaha Motors

Fitting Plate6Y5-83514-00-00

Required: 1

. PLATE, FITTING

~~$17.50~~

$14.88

You save $2.63

. NUT

In stock

Only 5 remaining

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

Spring Washer92990-05100-00

Required: 2

. WASHER, SPRING

In stock

Only 5 remaining

~~$0.35~~

$0.30

You save $0.05

More details

Yamaha Motors

WIRE, LEAD (L=2.5M)6Y5-83553-01-00

Required: 1

WIRE, LEAD (L=2.5M)

Supersedes: 6Y5-83553-00-00

In stock

Only 1 remaining

~~$66.00~~

$56.10

You save $9.90

More details

Yamaha Motors

Fuse (10A)1E6-82151-00-00

Required: 1

. FUSE (10A)

~~$8.49~~

$7.22

You save $1.27

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
