All diagrams for this model

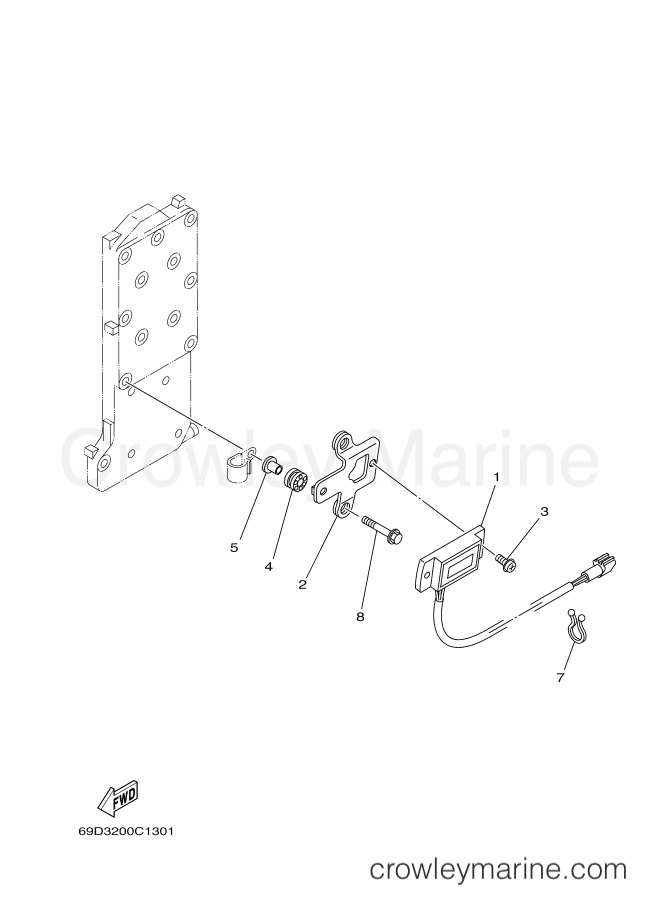

2012 International 60hp - E60HMHDL (69DB) [070] ELECTRICAL 5 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors E60HMHDL (69DB) [070] - ELECTRICAL 5
Change View:
1
Required: 1
HOUR METER ASSY
Price unavailable
2
Required: 1
BRACKET, METER
Price unavailable
Screw With Washer
3
Yamaha Motors
Screw With Washer90159-05M13-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Spacer
4
Yamaha Motors
Spacer64J-85516-01-00
Required: 2
SPACER
Supersedes: 64J-85516-00-00
Cross Ship
Leaves in 2-5 days
$1.65
$1.40
You save $0.25
More details
5
Required: 2
COLLAR
Price unavailable
Clamp
7
Yamaha Motors
Clamp90464-15M11-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.52
$2.14
You save $0.38
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
