2012 International 15hp - E15DMH (6B49) [230] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

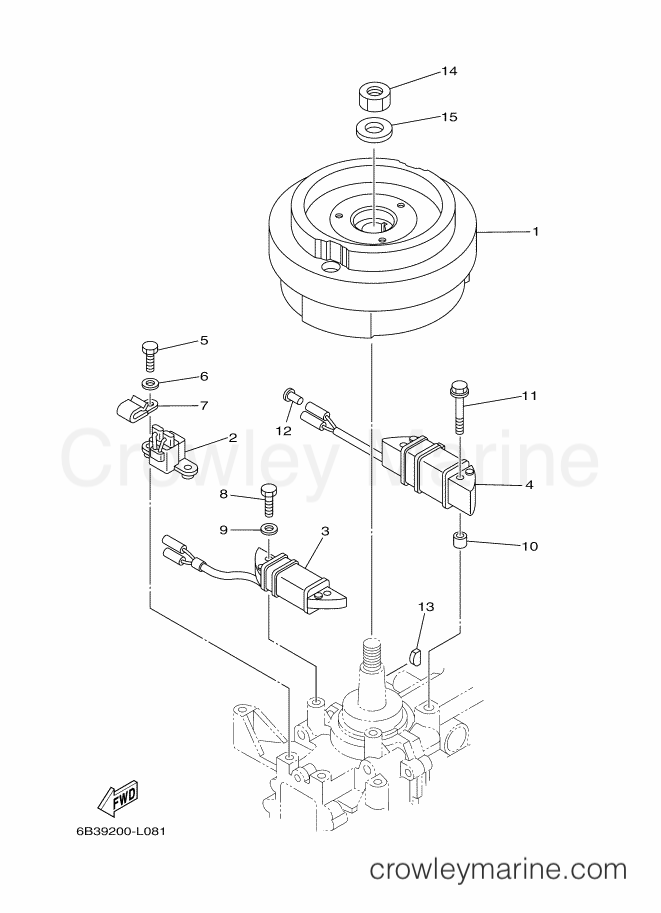

Yamaha Motors E15DMH (6B49) [230] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
COIL, PULSER
Price unavailable
3
Required: 1
COIL, CHARGE
Price unavailable
BOLT, HEXAGON DEEP RECESS
5
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.21
You save $0.55
More details
Clamp
7
Yamaha Motors
Clamp90465-06M90-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Collar
10
Yamaha Motors
Collar90387-06M24-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
Lead Wire Cover
12
Yamaha Motors
Lead Wire Cover703-82119-00-00
Required: 2
COVER, LEAD WIRE
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Woodruff Key
13
Yamaha Motors
Woodruff Key90280-05001-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-05013-00
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
Nut
14
Yamaha Motors
Nut90170-12066-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.05
$7.69
You save $1.36
More details
Plate Washer
15
Yamaha Motors
Plate Washer90201-126A7-00
Required: 1
WASHER, PLATE
Supersedes: 90201-12472-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
