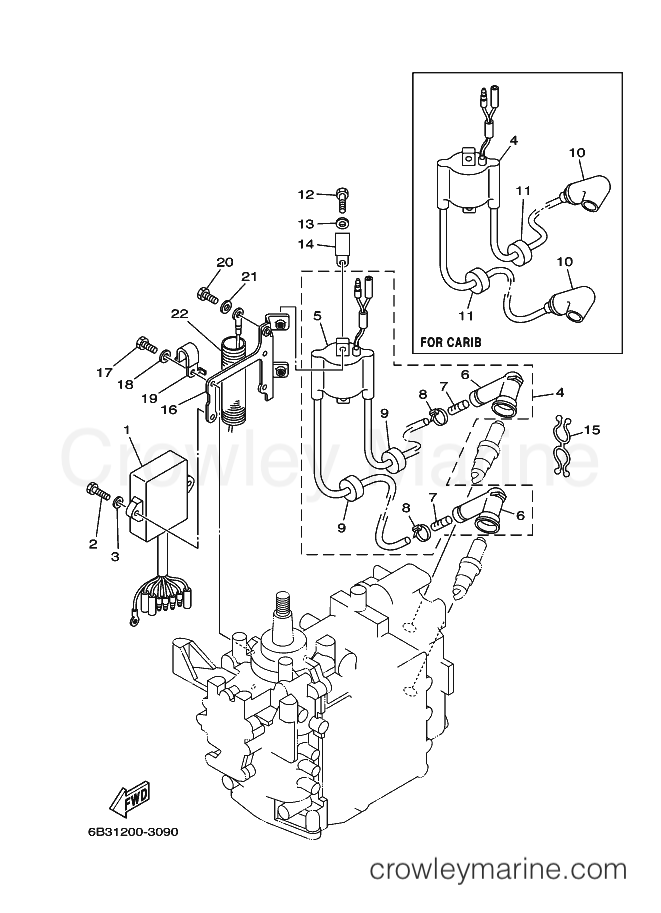

2003 International 9.9hp - E9.9D (6B31) [060] ELECTRICAL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors E9.9D (6B31) [060] - ELECTRICAL
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
4
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Required: 1
IGNITION COIL ASSY
Price unavailable
5
Required: 1
. IGNITION COIL ASSY
Price unavailable
PLUG CAP
6
Yamaha Motors
PLUG CAP62E-82371-11-00
Required: 2
. CAP, PLUG
Cross Ship
Leaves in 2-5 days
$42.99
$36.54
You save $6.45
More details
7
Required: 2
. TERMINAL 1
Price unavailable
BOLT, HEXAGON DEEP RECESS
12
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Clamp
14
Yamaha Motors
Clamp90465-06M90-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Clamp
15
Yamaha Motors
Clamp90464-08M02-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$7.60
$6.46
You save $1.14
More details
16
Required: 1
BRACKET, IGNITION COIL
Price unavailable
BOLT
20
Yamaha Motors
BOLT97095-06010-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Tube
22
Yamaha Motors
Tube6N7-83557-00-00
Required: 1
TUBE (I.DIA:22MM)
Cross Ship
Leaves in 2-5 days
$7.45
$6.33
You save $1.12
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
