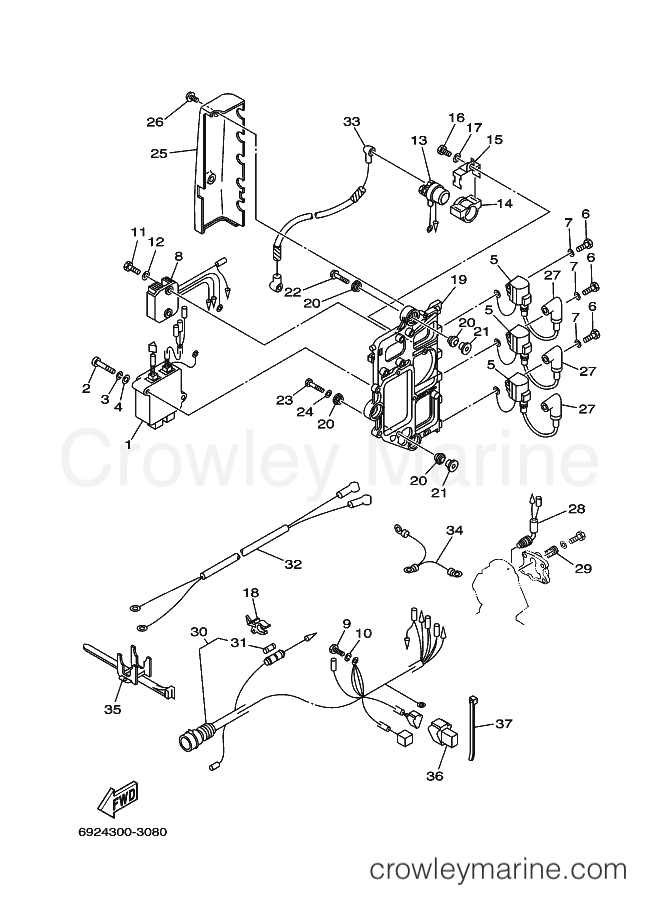

2003 International 75hp - 75AEDL (6924) [040] ELECTRICAL diagram
![Yamaha Motors 75AEDL (6924) [040] - ELECTRICAL](https://cdn.crowleymarine.com/yamaha/OkLyHt5D.png)
1
Yamaha Motors
C.D.I. UNIT Assembly688-85540-00-00
Required: 1
C.D.I. UNIT ASSY
$507.45
You save $89.55
2
Yamaha Motors
Pan Head Screw98580-06540-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97880-06040-00
$1.74
You save $0.31
3
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.76
You save $0.69
4
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
5
Yamaha Motors
Ignition Coil Assembly697-85570-00-00
Required: 3
IGNITION COIL ASSY
In stock
5+ in stock
$79.95
You save $20.55
6
Yamaha Motors
Bolt97080-06020-00
Required: 3
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.60
You save $0.90
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
8
Yamaha Motors
Rectifier & Regulator Assembly6H0-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
$133.83
You save $23.62
$2.54
You save $0.45
10
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
11
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.60
You save $0.90
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
13
Yamaha Motors
Starter Relay6G1-81941-10-00
Required: 1
STARTER RELAY ASSY
In stock
5+ in stock
$70.44
You save $17.61
14
Yamaha Motors
HOLDER, RELAY6G1-81952-01-00
Required: 1
HOLDER, RELAY
Supersedes: 6G1-81952-00-00
$11.36
You save $2.84
15
Yamaha Motors
Switch Fitting Plate6E9-81945-70-00
Required: 1
PLATE, SWITCH FITTING
$36.17
You save $6.38
$2.21
You save $0.55
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.28
You save $0.57
$6.08
You save $1.07
19
Yamaha Motors
Bracket6H1-85542-00-00
Required: 1
BRACKET
Supersedes: 6H1-85542-00-94
$51.42
You save $9.08
$6.08
You save $1.07
$8.32
You save $2.08
-50%
22
Yamaha Motors
Bolt with Washer90119-06293-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06M75-00
In stock
Only 1 remaining
$2.10
You save $2.10
$1.91
You save $0.34
24
Yamaha Motors
Plate Washer90201-06M31-00
Required: 1
WASHER, PLATE
In stock
Only 5 remaining
$2.76
You save $0.69
25
Yamaha Motors
Terminal Cover6H1-81916-00-00
Required: 1
COVER, TERMINAL
In stock
Only 1 remaining
$14.00
You save $3.50
26
Yamaha Motors
Screw With Washer90159-06M11-00
Required: 2
SCREW, WITH WASHER
In stock
Only 4 remaining
$2.56
You save $0.64
In stock
Only 3 remaining
$28.52
You save $7.13
28
Yamaha Motors
Thermo Switch Assembly688-82560-10-00
Required: 1
THERMO SWITCH ASSY
In stock
5+ in stock
$39.08
You save $9.77
$8.59
You save $1.52
30
Yamaha Motors
WIRE HARNESS ASSY688-82590-1A-00
Required: 1
WIRE HARNESS ASSY
Supersedes: 688-82590-17-00
$225.59
You save $39.81
31
Yamaha Motors
Fuse (12V/10A)682-82151-01-00
Required: 1
. FUSE (12V-20A)
Supersedes: 663-82151-00-00
$3.15
You save $-0.60
32
Yamaha Motors
BATTERY CABLE6H0-82105-J3-00
Required: 1
WIRE HARNESS
Supersedes: 6H0-82105-02-00
$205.36
You save $36.24
33
Yamaha Motors
WIRE LEAD6H0-82117-01-00
Required: 1
WIRE, LEAD
Supersedes: 6H0-82117-00-00
$34.30
You save $6.05
34
Yamaha Motors
Earth Lead Wire697-82519-00-00
Required: 1
WIRE, EARTH LEAD
$12.07
You save $2.13
$9.82
You save $1.73
36
Yamaha Motors
Wire Harness Cover6N6-82582-00-00
Required: 1
COVER, WIRE HARNESS
$26.27
You save $4.64
37
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
