All diagrams for this model

2002 International 8hp - T8MHA (69G2) [080] FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

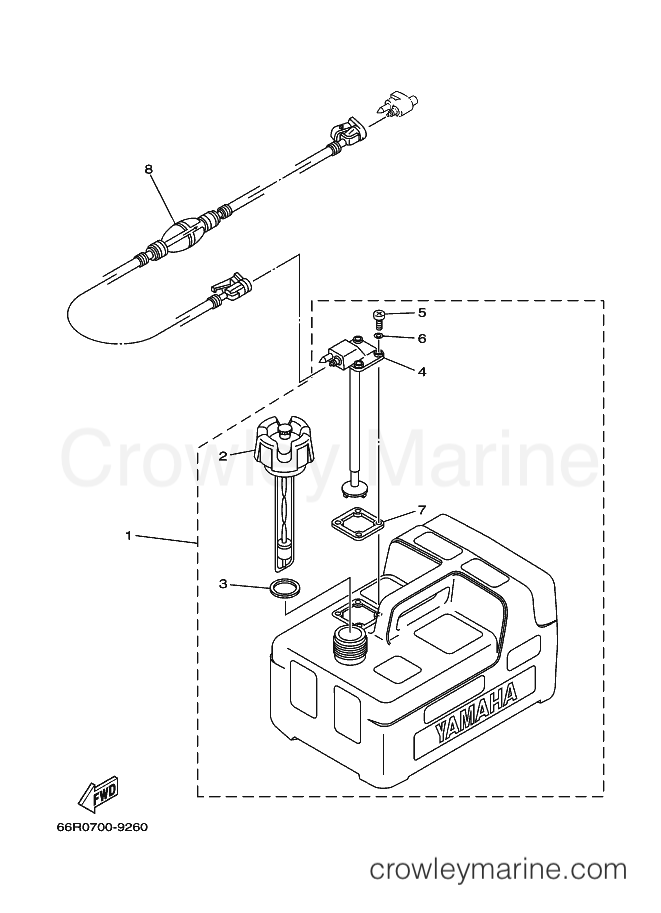

Yamaha Motors T8MHA (69G2) [080] - FUEL TANK
Change View:
1
Required: 1
FUEL TANK ASSY (12L)
Price unavailable
Fuel Meter Assembly
4
Yamaha Motors
Fuel Meter Assembly6YL-24260-01-00
Required: 1
. FUEL METER ASSY
Cross Ship
Leaves in 2-5 days
$100.35
$85.30
You save $15.05
More details
Pan Head Screw
5
Yamaha Motors
Pan Head Screw90157-05M16-00
Required: 4
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.65
$3.10
You save $0.55
More details
Shift Bracket Seal
6
Yamaha Motors
Shift Bracket Seal6YL-24329-00-00
Required: 4
. SEAL
Cross Ship
Leaves in 2-5 days
$3.15
$2.68
You save $0.47
More details
Fuel Meter Gasket
7
Yamaha Motors
Fuel Meter Gasket6YL-24268-01-00
Required: 1
. GASKET, FUEL METER
Cross Ship
Leaves in 2-5 days
$12.55
$10.67
You save $1.88
More details
8
Required: 1
FUEL PIPE COMP. 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
