2002 International 40hp - E40X (66T2) [430] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

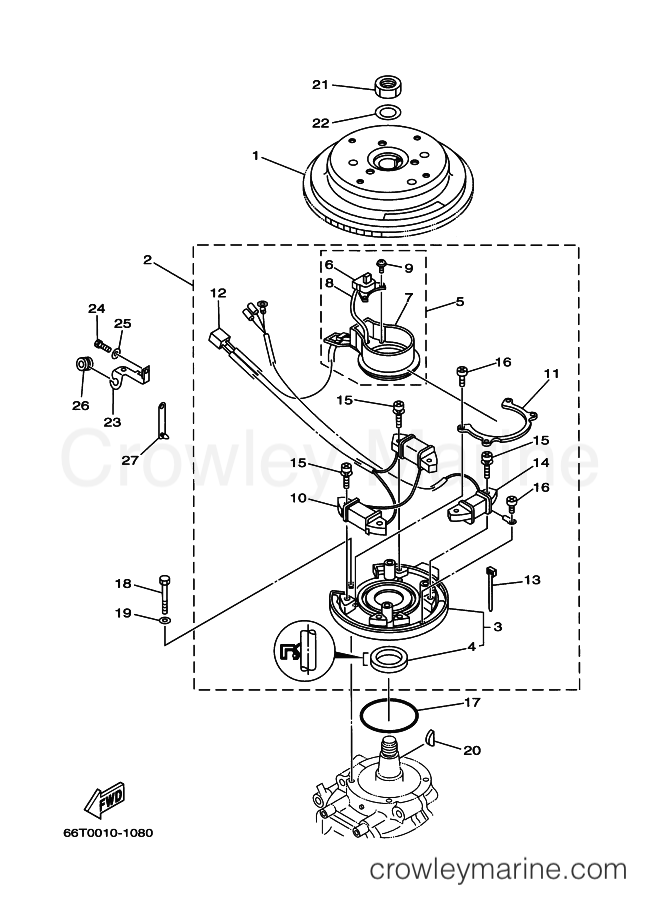

Yamaha Motors E40X (66T2) [430] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
BASE ASSY
Price unavailable
2
Required: 1
BASE ASSY
Price unavailable
3
Required: 1
. BASE, MAGNETO
Price unavailable
4
Required: 1
. . OIL SEAL
Price unavailable
5
Required: 1
. PULSER COIL ASSY
Price unavailable
6
Required: 1
. . COIL, PULSER 1
Price unavailable
7
Required: 1
. . ATTACHMENT, PULSER
Price unavailable
8
Required: 1
. . LEAD WIRE ASSY
Price unavailable
9
Required: 2
. . SCREW, WITH WASHER
Price unavailable
10
Required: 1
. COIL, CHARGE
Price unavailable
11
Required: 1
. RETAINER, MAGNETO BASE
Price unavailable
12
Required: 1
. CONNECTOR
Price unavailable
Clamp
13
Yamaha Motors
Clamp66T-81328-00-00
Required: 1
. CLAMP
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
14
Required: 1
. COIL, LIGHTING
Price unavailable
Pan Head Screw
15
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 4
. SCREW, WITH WASHER
Supersedes: 97902-06125-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
Pan Head Screw
15
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 6
. SCREW, WITH WASHER
Supersedes: 97902-06125-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
Pan Head Screw
16
Yamaha Motors
Pan Head Screw98517-04006-00
Required: 5
. SCREW, PAN HEAD
Supersedes: 97802-04006-00
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
Pan Head Screw
16
Yamaha Motors
Pan Head Screw98517-04006-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 97802-04006-00
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
O-Ring
17
Yamaha Motors
O-Ring93210-75M51-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$1.86
$1.58
You save $0.28
More details
Nut
21
Yamaha Motors
Nut90170-20137-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Plate Washer
22
Yamaha Motors
Plate Washer90201-21M18-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$7.30
$6.21
You save $1.10
More details
23
Required: 1
CLAMP
Price unavailable
BOLT, HEXAGON DEEP RECESS
24
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
26
Required: 1
GROMMET
Price unavailable
Clamp
27
Yamaha Motors
Clamp90464-12158-00
Required: 1
CLAMP
Supersedes: 90464-12M00-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
