All diagrams for this model

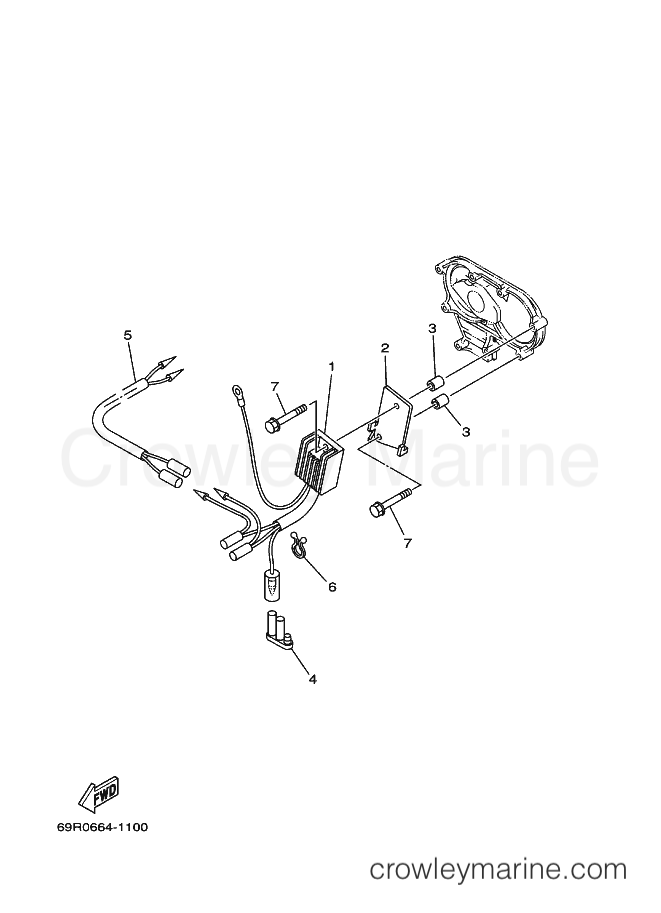

2002 International 25hp - 25B (69R2) [160] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 25B (69R2) [160] - ELECTRICAL 2
Change View:
Rectifier & Regulator Assembly
1
Yamaha Motors
Rectifier & Regulator Assembly6J8-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$121.50
$102.95
You save $18.55
More details
2
Required: 1
PLATE, REGULATOR FITTING
Price unavailable
Collar
3
Yamaha Motors
Collar90387-06504-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$7.90
$6.71
You save $1.19
More details
Wire Harness Cover
4
Yamaha Motors
Wire Harness Cover6E5-82582-00-00
Required: 1
COVER, WIRE HARNESS
Cross Ship
Leaves in 2-5 days
$6.15
$5.23
You save $0.92
More details
5
Required: 1
EXTENSION, WIRE LEAD
Price unavailable
Clamp
6
Yamaha Motors
Clamp90465-18147-00
Required: 1
CLAMP
Supersedes: 90464-08M07-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
7
Required: 2
BOLT, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
