All diagrams for this model

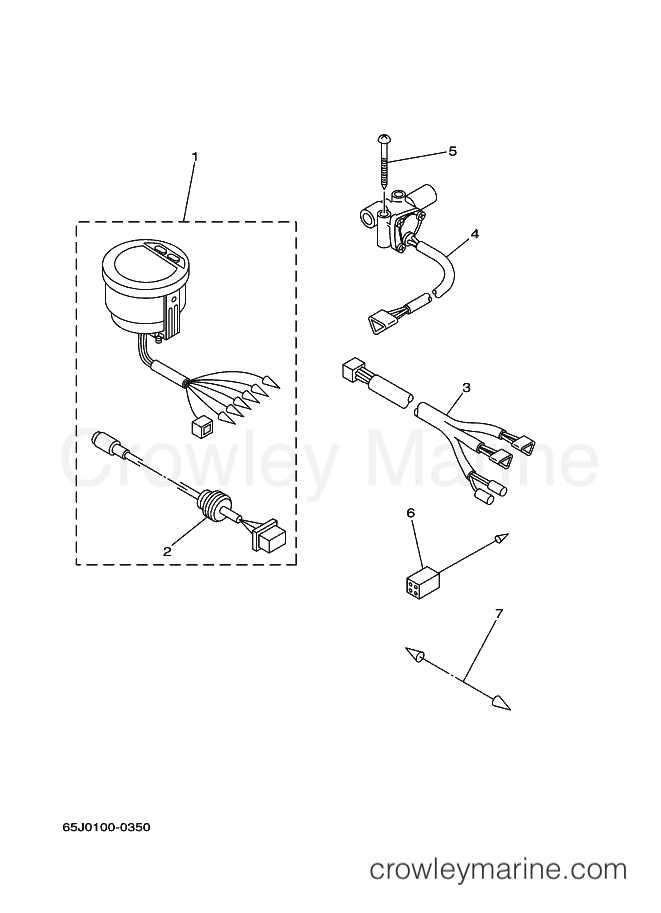

2000 International 250hp - SX250TXR (65L) [050] METER 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SX250TXR (65L) [050] - METER 3
Change View:
FUEL METER MOVEMENT ASSY
1
Yamaha Motors
FUEL METER MOVEMENT ASSY6Y5-8350F-B4-00
Required: 1
FUEL MANAGEMENT METER
Supersedes: 6Y5-83500-F2-00
Cross Ship
Leaves in 2-5 days
$402.00
$341.70
You save $60.30
More details
Cord Assembly
2
Yamaha Motors
Cord Assembly6Y5-87122-S0-00
Required: 1
. CORD ASSY 1
Cross Ship
Leaves in 2-5 days
$21.80
$18.53
You save $3.27
More details
WIRE, LEAD (L=8.0M)
3
Yamaha Motors
WIRE, LEAD (L=8.0M)6Y5-83553-F2-00
Required: 1
WIRE, LEAD
Supersedes: 6Y5-83553-F1-00
Cross Ship
Leaves in 2-5 days
$96.00
$81.60
You save $14.40
More details
Sender Unit Assembly
4
Yamaha Motors
Sender Unit Assembly6Y5-85752-02-00
Required: 2
SENDER UNIT ASSY, FUEL METER
Supersedes: 6Y5-85752-00-00
Cross Ship
Leaves in 2-5 days
$351.00
$298.35
You save $52.65
More details
Round Tapping Screw
5
Yamaha Motors
Round Tapping Screw90160-06M00-00
Required: 4
SCREW, ROUND TAPPING
Cross Ship
Leaves in 2-5 days
$6.55
$5.57
You save $0.98
More details
Lead Wire
7
Yamaha Motors
Lead Wire703-82531-00-00
Required: 1
WIRE, LEAD
Cross Ship
Leaves in 2-5 days
$7.75
$6.59
You save $1.16
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
