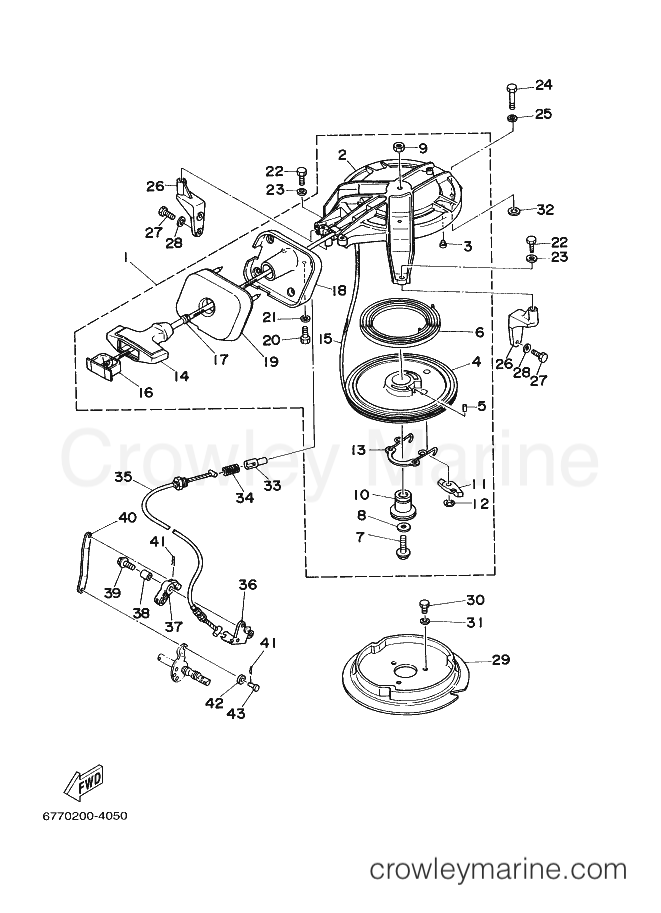

1999 International 8hp - E8D (677) [030] STARTER diagram
![Yamaha Motors E8D (677) [030] - STARTER](https://cdn.crowleymarine.com/yamaha/amnRmxPi.png)
1
Required: 1
STARTER ASSY
Price unavailable
2
Yamaha Motors
STARTER CASE682-15711-71-00
Required: 1
CASE, STARTER
Supersedes: 682-15711-71-94
$61.24
You save $10.81
$4.04
You save $0.71
$48.62
You save $8.58
$2.72
You save $0.48
6
Yamaha Motors
Spiral Spring90510-08M04-00
Required: 1
SPRING, SPIRAL
$25.54
You save $4.51
7
Yamaha Motors
With Washer Bolt90119-06M34-00
Required: 1
BOLT, WITH WASHER
In stock
Only 1 remaining
$2.46
You save $0.44
8
Yamaha Motors
Plain Washer90201-06020-00
Required: 1
WASHER, PLATE
Supersedes: 90201-065F3-00
In stock
Only 1 remaining
$8.92
You save $1.57
In stock
5+ in stock
$4.08
You save $0.72
10
Yamaha Motors
Starter Shaft677-15717-01-00
Required: 1
SHAFT, STARTER
$24.86
You save $4.39
In stock
Only 4 remaining
$10.67
You save $1.88
In stock
Only 5 remaining
$3.02
You save $0.53
13
Yamaha Motors
Drive Pawl Spring677-15705-02-00
Required: 1
SPRING, DRIVE PAWL
In stock
Only 3 remaining
$12.54
You save $2.21
14
Yamaha Motors
Starter Handle689-15755-02-00
Required: 1
HANDLE, STARTER
Supersedes: 689-15755-01-00
In stock
5+ in stock
$5.31
You save $0.94
15
Yamaha Motors
Rope Starter90580-50M01-00
Required: 1
WIRE (L1650)
Supersedes: 90580-50M00-00
In stock
5+ in stock
$13.18
You save $2.33
$4.55
You save $0.80
17
Yamaha Motors
DAMPER 26A0-15789-01-00
Required: 1
DAMPER
Supersedes: 6A0-15789-00-00
In stock
Only 3 remaining
$1.40
You save $0.25
18
Required: 1
GUIDE, ROPE
Price unavailable
19
Required: 1
SEAL, RUBBER 2
Price unavailable
$2.35
You save $0.41
21
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
22
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
23
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
24
Yamaha Motors
Bolt97080-06035-00
Required: 1
BOLT
Supersedes: 97095-06035-00
In stock
5+ in stock
$4.67
You save $0.82
25
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
26
Required: 2
STAY 1
Price unavailable
$7.64
You save $1.35
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
29
Yamaha Motors
Starter Pulley6E7-15723-00-94
Required: 1
PULLEY, STARTER
In stock
Only 1 remaining
$31.41
You save $5.54
$2.54
You save $0.45
31
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
32
Yamaha Motors
Plate Washer90201-10049-00
Required: 1
WASHER, PLATE
Supersedes: 90201-10120-00
In stock
5+ in stock
$1.61
You save $0.28
33
Yamaha Motors
Starter Stop Plunger656-15748-00-00
Required: 1
PLUNGER, STARTER STOP
In stock
Only 5 remaining
$11.43
You save $2.02
34
Yamaha Motors
Compression Spring90501-10227-00
Required: 1
SPRING, COMPRESSION
In stock
Only 1 remaining
$6.54
You save $1.16
35
Required: 1
CABLE COMP., STARTER STOP
Price unavailable
36
Required: 1
STAY 2
Price unavailable
37
Required: 1
ARM
Price unavailable
$6.71
You save $1.19
39
Yamaha Motors
Bolt with Washer90119-06M48-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06M87-00
$5.44
You save $0.96
40
Required: 1
LINK
Price unavailable
$6.08
You save $1.07
42
Yamaha Motors
Plate Washer90202-05088-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$6.54
You save $1.16
43
Required: 1
SET PIN
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
