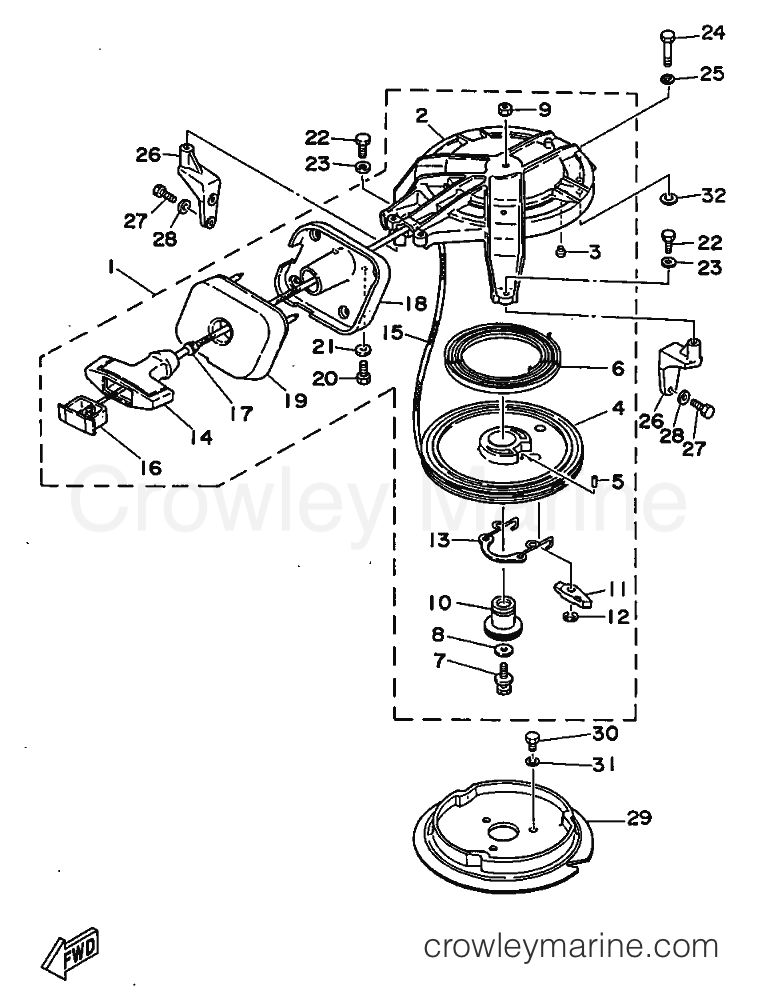

1997 International 8hp - E8D (677) [999] STARTER diagram
![Yamaha Motors E8D (677) [999] - STARTER](https://cdn.crowleymarine.com/yamaha/iSgqsrYl.png)
1
Required: 1
STARTER ASSY
Price unavailable
2
Yamaha Motors
STARTER CASE682-15711-71-00
Required: 1
. CASE, STARTER
Supersedes: 682-15711-71-94
$61.24
You save $10.81
$4.04
You save $0.71
4
Yamaha Motors
Sheave Drum677-15714-00-94
Required: 1
. DRUM, SHEAVE
$48.62
You save $8.58
5
Yamaha Motors
Spring Pin91690-40020-00
Required: 1
. PIN, SPRING
$2.72
You save $0.48
6
Yamaha Motors
Spiral Spring90510-08M04-00
Required: 1
. SPRING, SPIRAL
$25.54
You save $4.51
-50%
7
Yamaha Motors
With Washer Bolt90119-06M34-00
Required: 1
. BOLT, WITH WASHER
In stock
Only 1 remaining
$1.45
You save $1.45
8
Yamaha Motors
Plain Washer90201-06020-00
Required: 1
. WASHER, PLATE
Supersedes: 90201-065F3-00
In stock
Only 1 remaining
$8.39
You save $2.10
9
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 1
. NUT, HEXAGON
In stock
5+ in stock
$3.84
You save $0.96
10
Yamaha Motors
Starter Shaft677-15717-01-00
Required: 1
. SHAFT, STARTER
$23.40
You save $5.85
11
Yamaha Motors
Drive Pawl677-15741-01-00
Required: 1
. PAWL, DRIVE
In stock
Only 4 remaining
$10.04
You save $2.51
In stock
Only 5 remaining
$2.84
You save $0.71
13
Yamaha Motors
Drive Pawl Spring677-15705-02-00
Required: 1
. SPRING, DRIVE PAWL
In stock
Only 3 remaining
$11.80
You save $2.95
14
Yamaha Motors
Starter Handle689-15755-02-00
Required: 1
. HANDLE, STARTER
Supersedes: 689-15755-01-00
In stock
5+ in stock
$5.00
You save $1.25
15
Required: 1
.
Price unavailable
$4.28
You save $1.07
17
Yamaha Motors
DAMPER 26A0-15789-01-00
Required: 1
. DAMPER
Supersedes: 6A0-15789-00-00
In stock
Only 3 remaining
$1.32
You save $0.33
18
Required: 1
. GUIDE, ROPE
Price unavailable
19
Required: 1
. SEAL, RUBBER 2
Price unavailable
$2.21
You save $0.55
21
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
. WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
22
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.60
You save $0.90
23
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
24
Yamaha Motors
Bolt97080-06035-00
Required: 1
BOLT
Supersedes: 97095-06035-00
In stock
5+ in stock
$4.39
You save $1.10
25
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
26
Required: 2
STAY 1
Price unavailable
$7.64
You save $1.35
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
-50%
29
Yamaha Motors
Starter Pulley6E7-15723-00-94
Required: 1
PULLEY, STARTER
In stock
Only 1 remaining
$18.48
You save $18.48
$2.54
You save $0.45
31
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
32
Yamaha Motors
Plate Washer90201-10049-00
Required: 1
WASHER, PLATE
Supersedes: 90201-10120-00
In stock
5+ in stock
$1.52
You save $0.38
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
