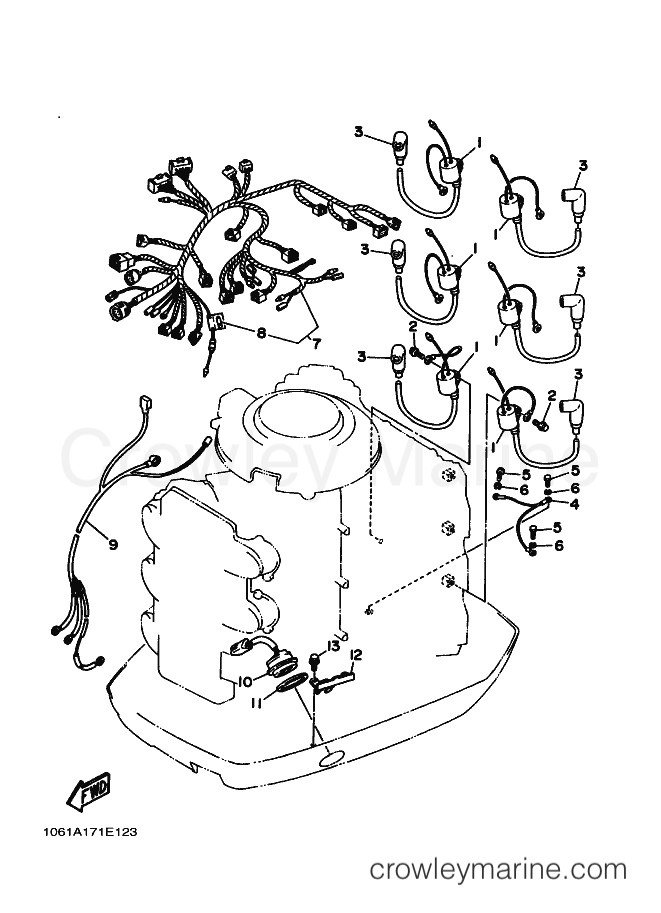

1990 International 250hp - 250ETD (61A) [030] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 250ETD (61A) [030] - ELECTRICAL 2
Change View:
IGNITION COIL ASSEMBLY
1
Yamaha Motors
IGNITION COIL ASSEMBLY61A-85570-01-00
Required: 6
IGNITION COIL ASSY
Supersedes: 61A-85570-00-00
Cross Ship
Leaves in 2-5 days
$94.95
$75.96
You save $18.99
More details
Lead Wire
4
Yamaha Motors
Lead Wire61A-82531-00-00
Required: 1
WIRE, lead
Cross Ship
Leaves in 2-5 days
$17.50
$14.88
You save $2.63
More details
Wire Harness Assembly
7
Yamaha Motors
Wire Harness Assembly61A-82590-00-00
Required: 1
WIRE HARNESS ASSY
Cross Ship
Leaves in 2-5 days
$728.70
$619.39
You save $109.31
More details
Fuse (12V/10A)
8
Yamaha Motors
Fuse (12V/10A)682-82151-01-00
Required: 1
.FUSE
Supersedes: 682-82151-00-00
Cross Ship
Leaves in 2-5 days
$2.55
$3.15
You save $-0.60
More details
BATTERY CABLE (RL45)
9
Yamaha Motors
BATTERY CABLE (RL45)61A-82105-01-00
Required: 1
WIRE HARNESS
Supersedes: 61A-82105-00-00
Cross Ship
Leaves in 2-5 days
$341.35
$290.15
You save $51.20
More details
Trim & Tilt Switch Assembly
10
Yamaha Motors
Trim & Tilt Switch Assembly61A-82563-01-00
Required: 1
TRIM & TILT SWITCH ASSY
Supersedes: 61A-82563-00-00
Cross Ship
Leaves in 2-5 days
$90.30
$76.75
You save $13.55
More details
Bracket
12
Yamaha Motors
Bracket61A-83614-00-00
Required: 1
BRACKET
Cross Ship
Leaves in 2-5 days
$25.35
$21.55
You save $3.80
More details
BOLT, HEXAGON DEEP RECESS
13
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97395-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.21
You save $0.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
