2014 Generator 7200 - EF7200DE FRAME 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

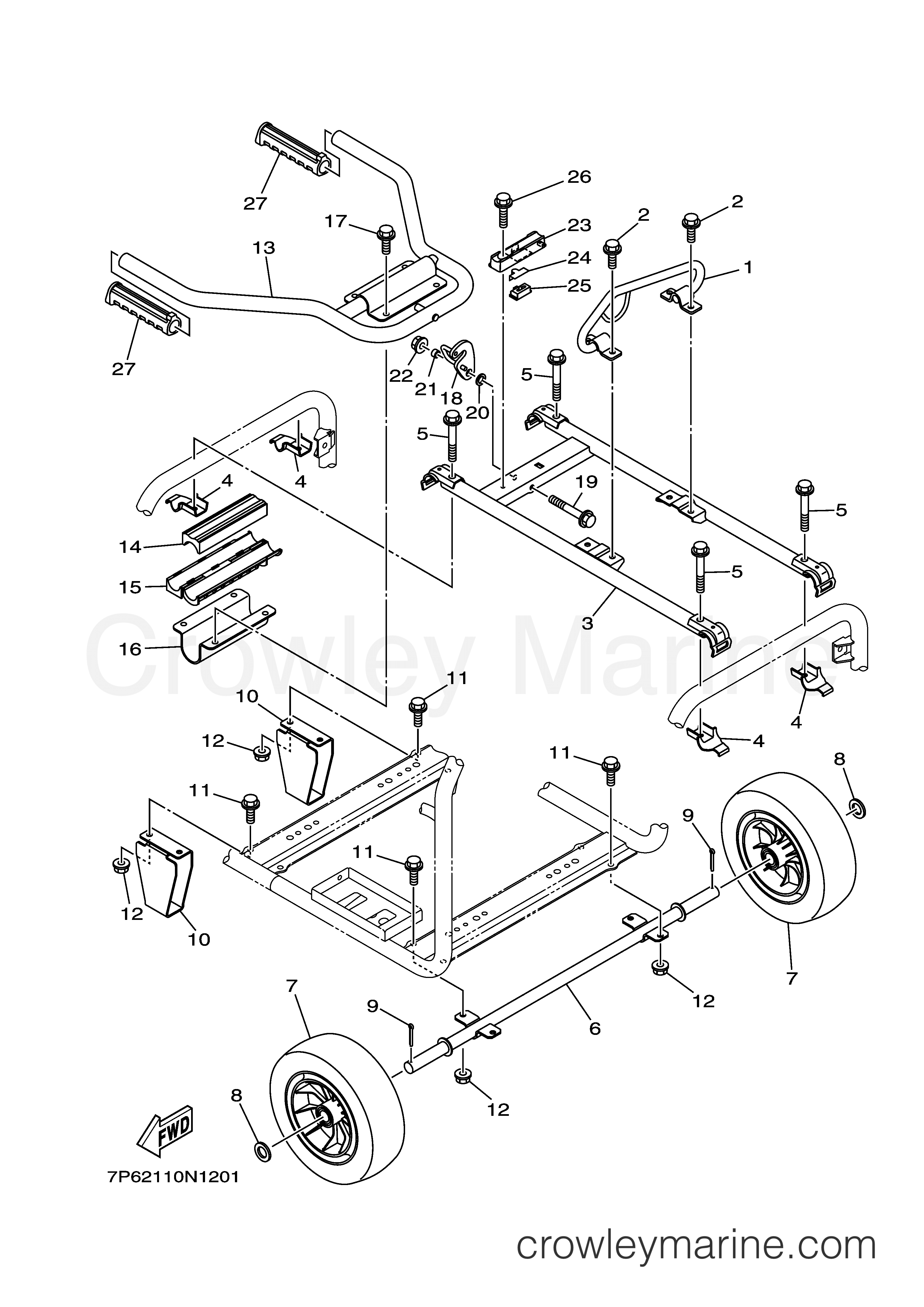

Yamaha Motors EF7200DE - FRAME 2
Change View:
1
Required: 1
HANGER, ENGINE
Price unavailable
Flange Bolt
2
Yamaha Motors
Flange Bolt95814-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95802-08016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 1
FRAME, CARRIER 1
Price unavailable
Palte 7
4
Yamaha Motors
Palte 77P6-F284K-00-00
Required: 4
PALTE 7
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
Flange Bolt
5
Yamaha Motors
Flange Bolt95814-08045-00
Required: 4
BOLT, FLANGE
Supersedes: 95802-08045-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
6
Required: 1
AXLE, WHEEL
Price unavailable
Front Wheel Assembly
7
Yamaha Motors
Front Wheel Assembly7P6-F5101-00-00
Required: 2
FRONT WHEEL ASSY
Cross Ship
Leaves in 2-5 days
$187.99
$159.79
You save $28.20
More details
WASHER
8
Yamaha Motors
WASHER92903-20600-00
Required: 2
WASHER
Supersedes: 92902-20600-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 2
PIN, COTTER
Price unavailable
10
Required: 2
STAND, MAIN
Price unavailable
Flange Bolt
11
Yamaha Motors
Flange Bolt95814-08016-00
Required: 8
BOLT, FLANGE
Supersedes: 95802-08016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
13
Required: 1
HANDLE ASSY
Price unavailable
14
Required: 1
DAMPER, LOCATING 1
Price unavailable
15
Required: 1
SLEEVE
Price unavailable
16
Required: 1
BRACKET, HANDLE 2
Price unavailable
Flange Bolt
17
Yamaha Motors
Flange Bolt95814-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95802-08016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
18
Required: 1
LEVER, LOCK
Price unavailable
Flange Bolt
19
Yamaha Motors
Flange Bolt95817-08060-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-08060-00
Cross Ship
Leaves in 2-5 days
$4.80
$4.08
You save $0.72
More details
21
Required: 1
COLLAR
Price unavailable
Self-locking Nut
22
Yamaha Motors
Self-locking Nut95602-08200-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
23
Required: 1
STOPPER
Price unavailable
24
Required: 1
PLATE, 2
Price unavailable
25
Required: 1
DAMPER
Price unavailable
Flange Bolt
26
Yamaha Motors
Flange Bolt95817-06016-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06016-00
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
27
Required: 2
GRIP, HANDLE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
