All diagrams for this model

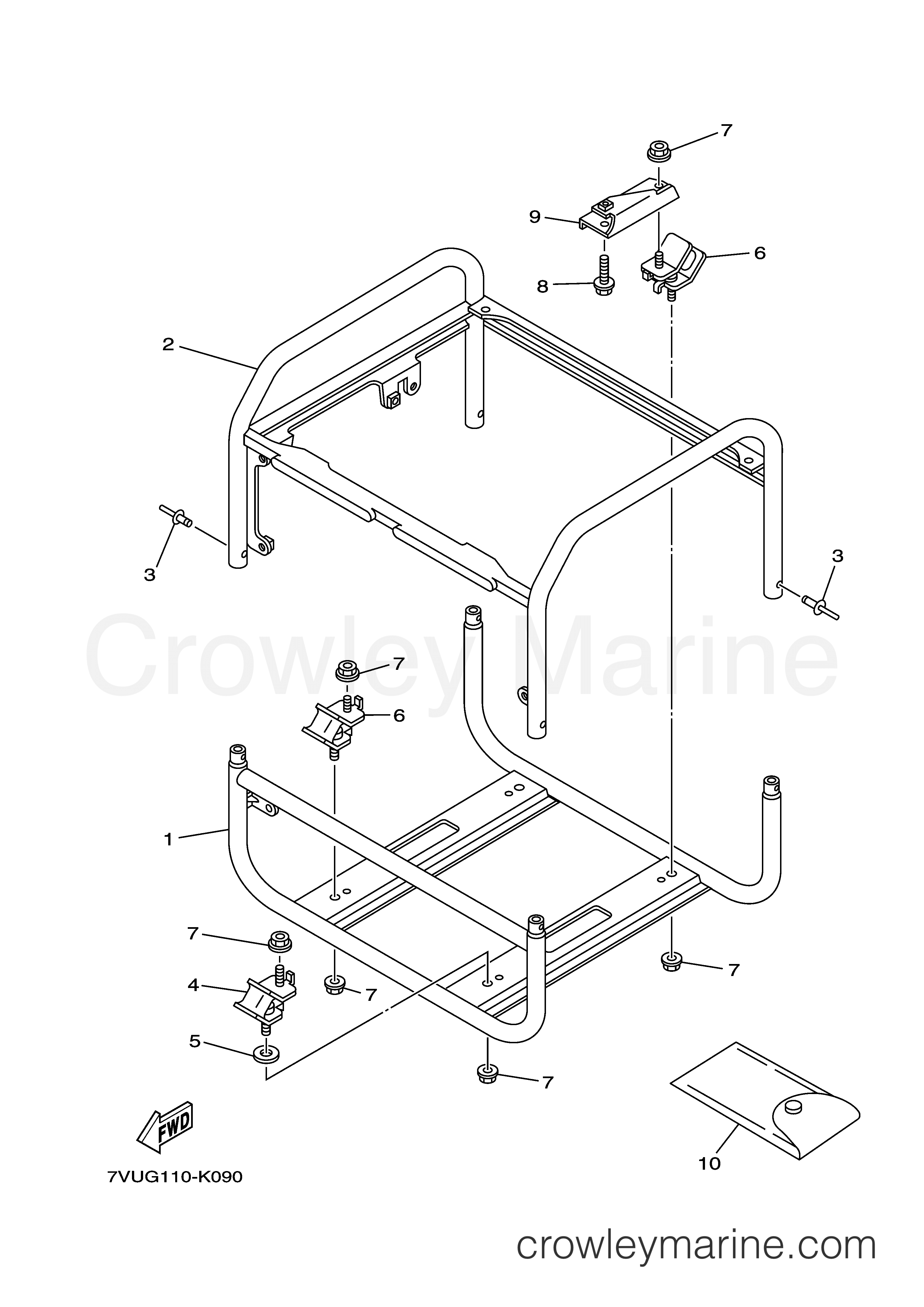

2013 Generator 2800 - EF2800IK FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EF2800IK - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
FRAME COMP. 2
Price unavailable
Blind Rivet
3
Yamaha Motors
Blind Rivet90267-48N00-00
Required: 4
RIVET, BLIND
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Mounting Insulator
4
Yamaha Motors
Mounting Insulator7VU-22891-00-00
Required: 1
INSULATOR, MOUNTING
Cross Ship
Leaves in 2-5 days
$30.99
$26.34
You save $4.65
More details
Plate Washer
5
Yamaha Motors
Plate Washer90201-086A3-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Mounting Insulator
6
Yamaha Motors
Mounting Insulator7VU-22894-00-00
Required: 3
INSULATOR, MOUNTING 2
Cross Ship
Leaves in 2-5 days
$19.99
$16.99
You save $3.00
More details
Flange Nut
7
Yamaha Motors
Flange Nut95707-08500-00
Required: 8
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.95
$1.82
You save $0.13
More details
Flange Bolt
8
Yamaha Motors
Flange Bolt95817-08030-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-08030-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Engine Bracket 2
9
Yamaha Motors
Engine Bracket 27VU-11012-11-00
Required: 1
BRACKET, ENGINE 2
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
Tool Kit
10
Yamaha Motors
Tool Kit7VU-28100-00-00
Required: 1
TOOL KIT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
