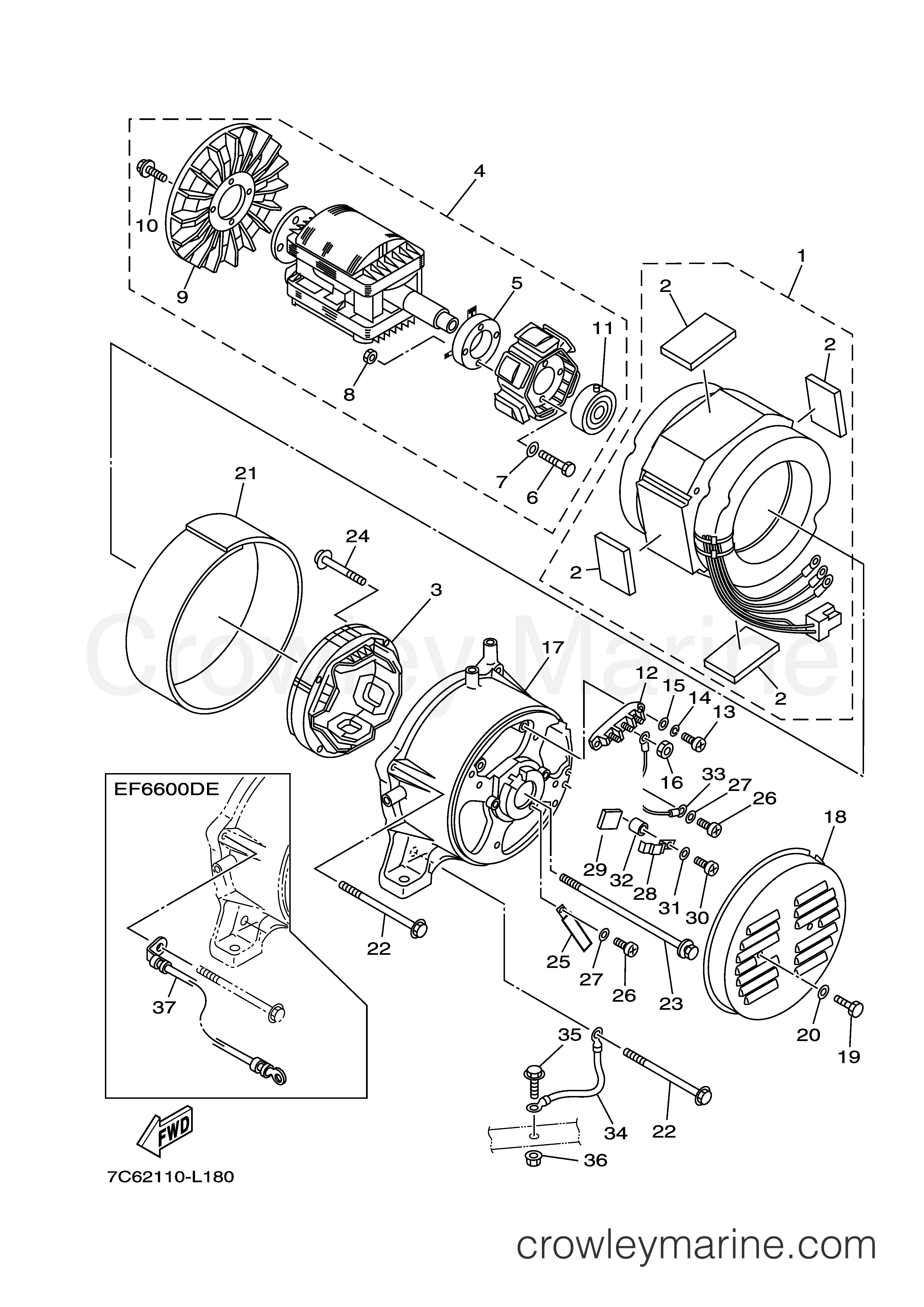

2012 Generator 6600 - EF6600DEQ GENERATOR diagram
1
Yamaha Motors
Stator Assembly Set7C6-WH715-40-00
Required: 1
STATOR ASSY SET
$1545.29
You save $272.70
2
Required: 4
.DAMPER, PLATE
Price unavailable
3
Yamaha Motors
Stator Exciter Assembly7C6-H712A-01-00
Required: 1
STATOR EXITER ASSY
Supersedes: 7C6-H712A-00-00
$487.04
You save $85.95
4
Yamaha Motors
Rotor Assembly7C6-H7160-20-00
Required: 1
ROTOR ASSY
Supersedes: 7C6-H7160-00-00
$1348.09
You save $237.90
5
Required: 1
.RECTIFIER ASSY 2
Price unavailable
6
Required: 4
.BOLT, HEXAGON
Price unavailable
7
Yamaha Motors
Plate Washer92990-05600-00
Required: 4
WASHER, PLATE
Supersedes: 92902-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
8
Yamaha Motors
Nut95380-05600-00
Required: 4
NUT
Supersedes: 95302-05600-00
In stock
Only 5 remaining
$8.07
You save $1.42
9
Required: 1
.FAN, GENERATOR
Price unavailable
10
Yamaha Motors
Flange Bolt95817-06012-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
11
Required: 1
.BEARING
Price unavailable
12
Required: 1
TERMINAL SUB ASSY 1
Price unavailable
13
Yamaha Motors
Pan Head Screw98502-05014-00
Required: 2
.SCREW, PAN HEAD
In stock
5+ in stock
$2.04
You save $0.36
14
Yamaha Motors
Spring Washer92902-05100-00
Required: 2
WASHER, SPRING
In stock
Only 2 remaining
$1.31
You save $0.23
15
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92902-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
16
Yamaha Motors
Nut95380-05600-00
Required: 3
NUT
Supersedes: 95302-05600-00
In stock
Only 5 remaining
$8.07
You save $1.42
$222.69
You save $39.30
18
Yamaha Motors
Rear End Cover7C6-H7174-00-00
Required: 1
COVER, REAR END
$43.34
You save $7.65
19
Yamaha Motors
Bolt97017-06010-00
Required: 2
BOLT
Supersedes: 97002-06010-00
$3.44
You save $0.61
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92902-06600-00
In stock
5+ in stock
$2.42
You save $0.43
21
Required: 1
COVER, STATOR
Price unavailable
22
Required: 4
BOLT, FLANGE
Price unavailable
23
Required: 1
BOLT
Price unavailable
24
Yamaha Motors
Screw With Washer90159-05091-00
Required: 4
SCREW, WITH WASHER
$3.49
You save $0.62
25
Yamaha Motors
Clamp90462-10236-00
Required: 1
CLAMP
Supersedes: 90462-05061-00
$9.77
You save $1.72
26
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$3.91
You save $0.69
27
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92902-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
28
Required: 1
HOLDER, CONNECTOR
Price unavailable
29
Required: 1
DAMPER
Price unavailable
30
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98502-05020-00
$1.49
You save $0.26
31
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER, PLATE
Supersedes: 92902-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
$4.67
You save $0.82
33
Required: 1
WIRE, LEAD 6
Price unavailable
34
Required: 1
WIRE, LEAD 4
Price unavailable
$3.53
You save $0.62
In stock
Only 2 remaining
$2.51
You save $0.44
37
Required: 1
WIRE, MINUS LEAD
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
