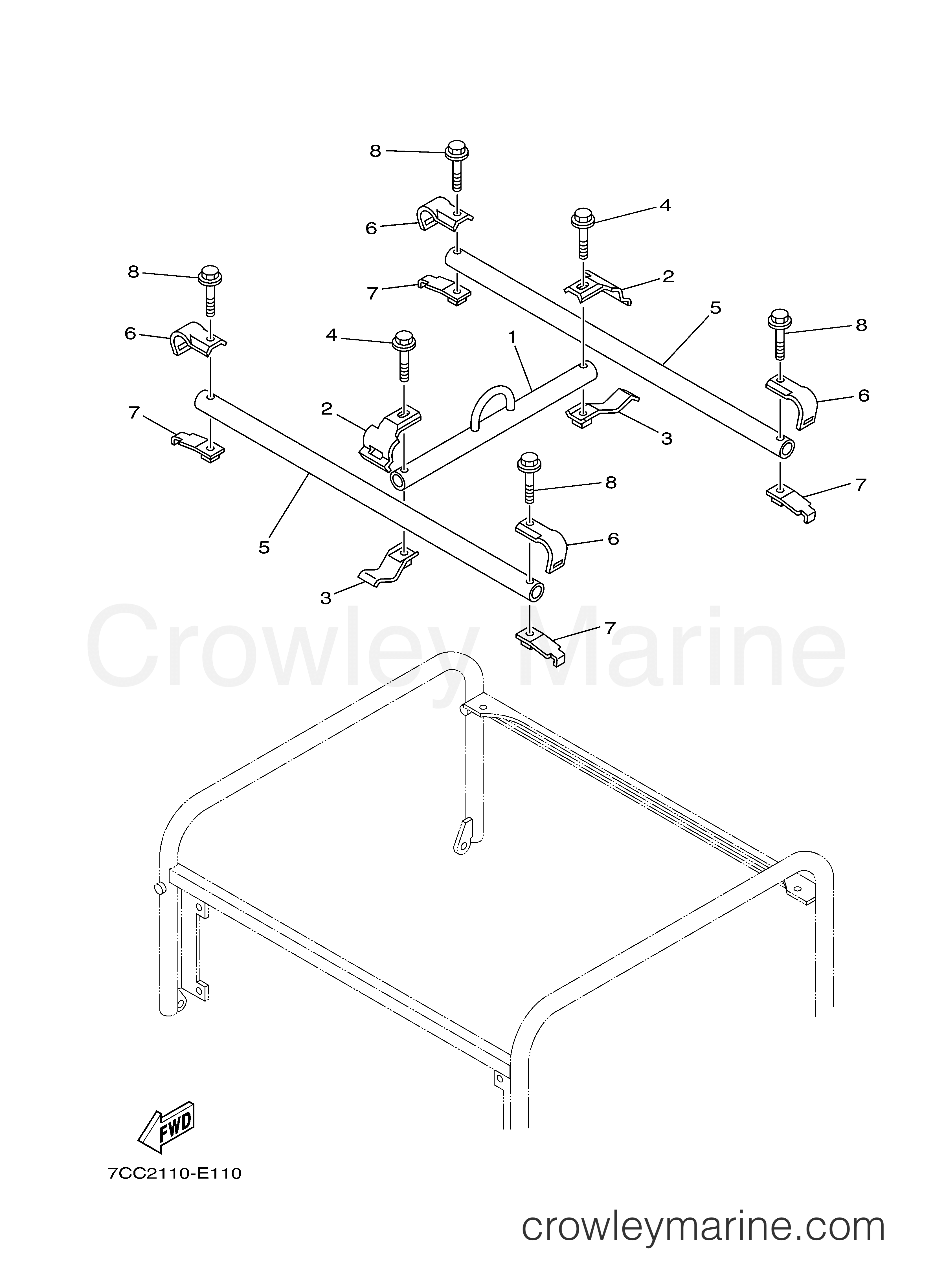

2012 Generator 5200 - EF5200DEQ FRAME 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EF5200DEQ - FRAME 2
Change View:
1
Required: 1
HANGER, ENGINE
Price unavailable
2
Required: 2
PLATE 2
Price unavailable
3
Required: 2
PLATE
Price unavailable
95811-08035-00
4
Yamaha Motors
95811-08035-0095801-08035-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-08035-00
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
5
Required: 2
PROTECTOR 1
Price unavailable
Side Cover
6
Yamaha Motors
Side Cover7C6-F2864-00-00
Required: 4
COVER, SIDE 1
Supersedes: 7CC-F2864-00-00
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
Plate
7
Yamaha Motors
Plate7C6-F284F-00-00
Required: 4
PLATE 3
Cross Ship
Leaves in 2-5 days
$24.99
$21.24
You save $3.75
More details
Flange Bolt
8
Yamaha Motors
Flange Bolt95801-06035-00
Required: 4
BOLT, FLANGE
Supersedes: 95802-06035-00
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
