All diagrams for this model

2012 Generator 7000 - EDL7000SDE CYLINDER HEAD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

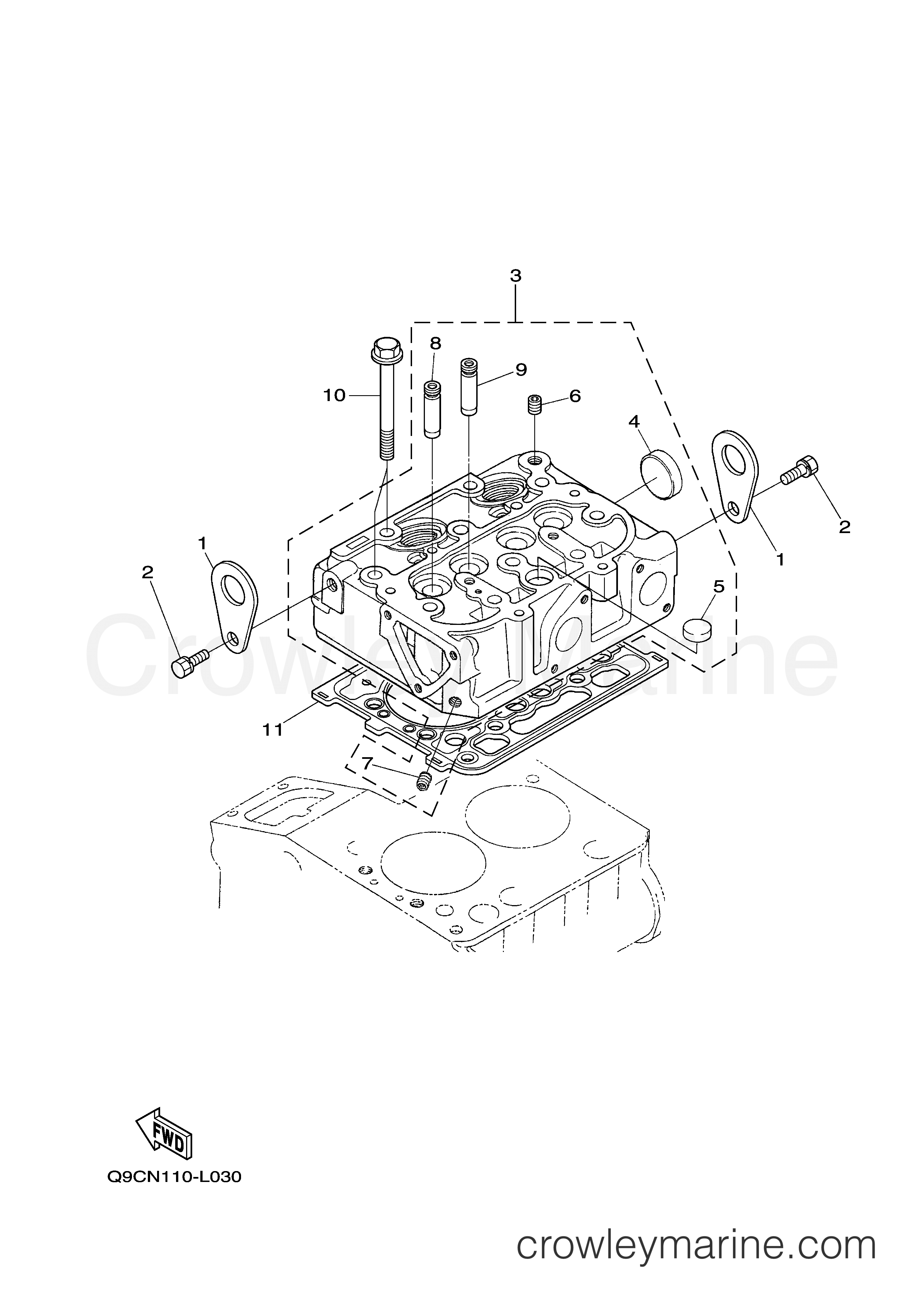

Yamaha Motors EDL7000SDE - CYLINDER HEAD
Change View:
Engine Hook
1
Yamaha Motors
Engine HookYF1-52210-17-50
Required: 2
HOOK, ENGINE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
2
Required: 2
BOLT
Price unavailable
3
Required: 1
CYLINDER HEAD COMP.
Price unavailable
Expansion Plug
4
Yamaha Motors
Expansion PlugYF1-53219-62-60
Required: 1
..PLUG, EXPANSION
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Expansion Plug
5
Yamaha Motors
Expansion PlugYF1-52610-33-70
Required: 1
..PLUG, EXPANSION
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Plug
6
Yamaha Motors
PlugYF1-58419-60-20
Required: 1
.PLUG
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Plug
7
Yamaha Motors
PlugYF1-52619-60-10
Required: 1
.PLUG
Cross Ship
Leaves in 2-5 days
$4.80
$4.08
You save $0.72
More details
Inlet Valve Guide
8
Yamaha Motors
Inlet Valve GuideYF1-58411-35-40
Required: 2
..GUIDE, INLET VALVE
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
Exhaust Valve Guide
9
Yamaha Motors
Exhaust Valve GuideYF1-58411-35-60
Required: 2
..GUIDE, EXHAUST VALVE
Cross Ship
Leaves in 2-5 days
$15.99
$13.59
You save $2.40
More details
Bolt, HEad
10
Yamaha Motors
Bolt, HEadYF1-46010-34-50
Required: 10
BOLT, HEAD
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
11
Required: 1
GASKET, CYLINDER HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
