2012 Generator 11000 - EDL11000SDE FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

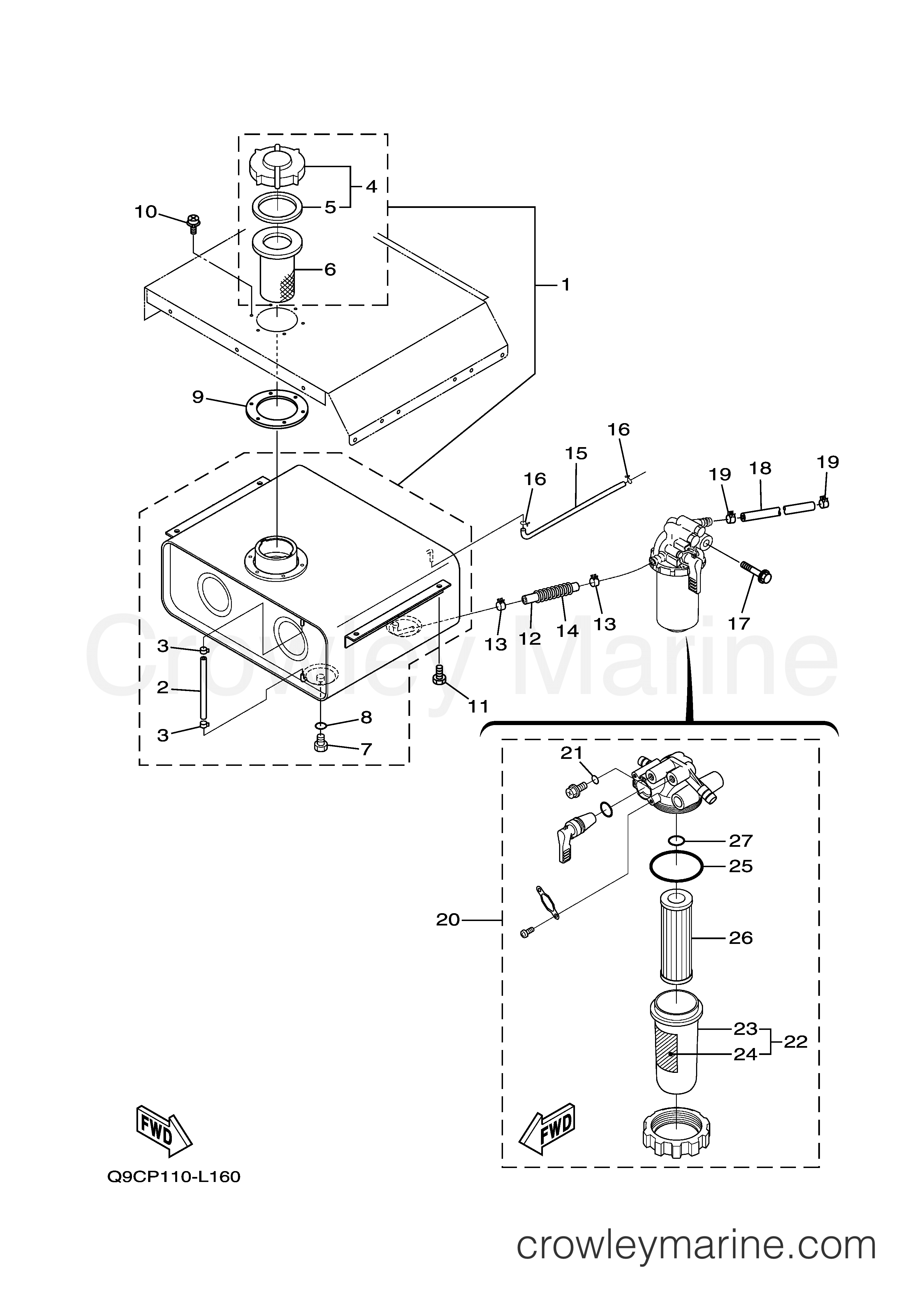

Yamaha Motors EDL11000SDE - FUEL TANK
Change View:
1
Required: 1
FUEL TANK ASSY
Price unavailable
2
Required: 1
.HOSE, GAUGE
Price unavailable
3
Required: 2
.CLIP
Price unavailable
4
Required: 1
.FUEL TANK CAP ASSY
Price unavailable
5
Required: 1
..GASKET, TANK CAP
Price unavailable
Filter
6
Yamaha Motors
FilterYF1-11514-13-50
Required: 1
.FILTER
Cross Ship
Leaves in 2-5 days
$35.99
$30.59
You save $5.40
More details
7
Required: 1
.PLUG
Price unavailable
Gasket
8
Yamaha Motors
GasketYF1-51093-36-60
Required: 1
.GASKET
Cross Ship
Leaves in 2-5 days
$4.85
$4.12
You save $0.73
More details
9
Required: 1
GASKET
Price unavailable
Screw With Washer
10
Yamaha Motors
Screw With WasherYF0-30345-05-10
Required: 6
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.30
$0.26
You save $0.05
More details
Flange Bolt (Edl6500)
11
Yamaha Motors
Flange Bolt (Edl6500)YF0-17545-08-12
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
12
Required: 1
TUBE, FUEL
Price unavailable
Pipe Clip
13
Yamaha Motors
Pipe ClipYF1-49114-27-50
Required: 2
PIPE CLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
14
Required: 1
TUBE
Price unavailable
15
Required: 1
TUBE, FUEL
Price unavailable
Pipe Clip
16
Yamaha Motors
Pipe ClipYF1-49714-27-50
Required: 2
PIPE CLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Flange Bolt
17
Yamaha Motors
Flange BoltYF0-17545-08-65
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.45
$3.78
You save $0.67
More details
18
Required: 1
TUBE, FUEL
Price unavailable
Pipe Clip
19
Yamaha Motors
Pipe ClipYF1-49114-27-50
Required: 2
PIPE CLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
20
Required: 1
FUEL FILTER ASSY
Price unavailable
O-Ring
21
Yamaha Motors
O-RingYF0-48170-00-60
Required: 2
.O RING
Cross Ship
Leaves in 2-5 days
$3.30
$2.80
You save $0.50
More details
22
Required: 1
.FILTER CUP ASSY
Price unavailable
23
Required: 1
..CUP, FILTER
Price unavailable
24
Required: 1
..LABEL, FUEL
Price unavailable
25
Required: 1
.O RING
Price unavailable
26
Required: 1
.ELEMENT ASSY
Price unavailable
27
Required: 1
.O RING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
