2012 Generator 11000 - EDL11000SDE FRAME 5 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

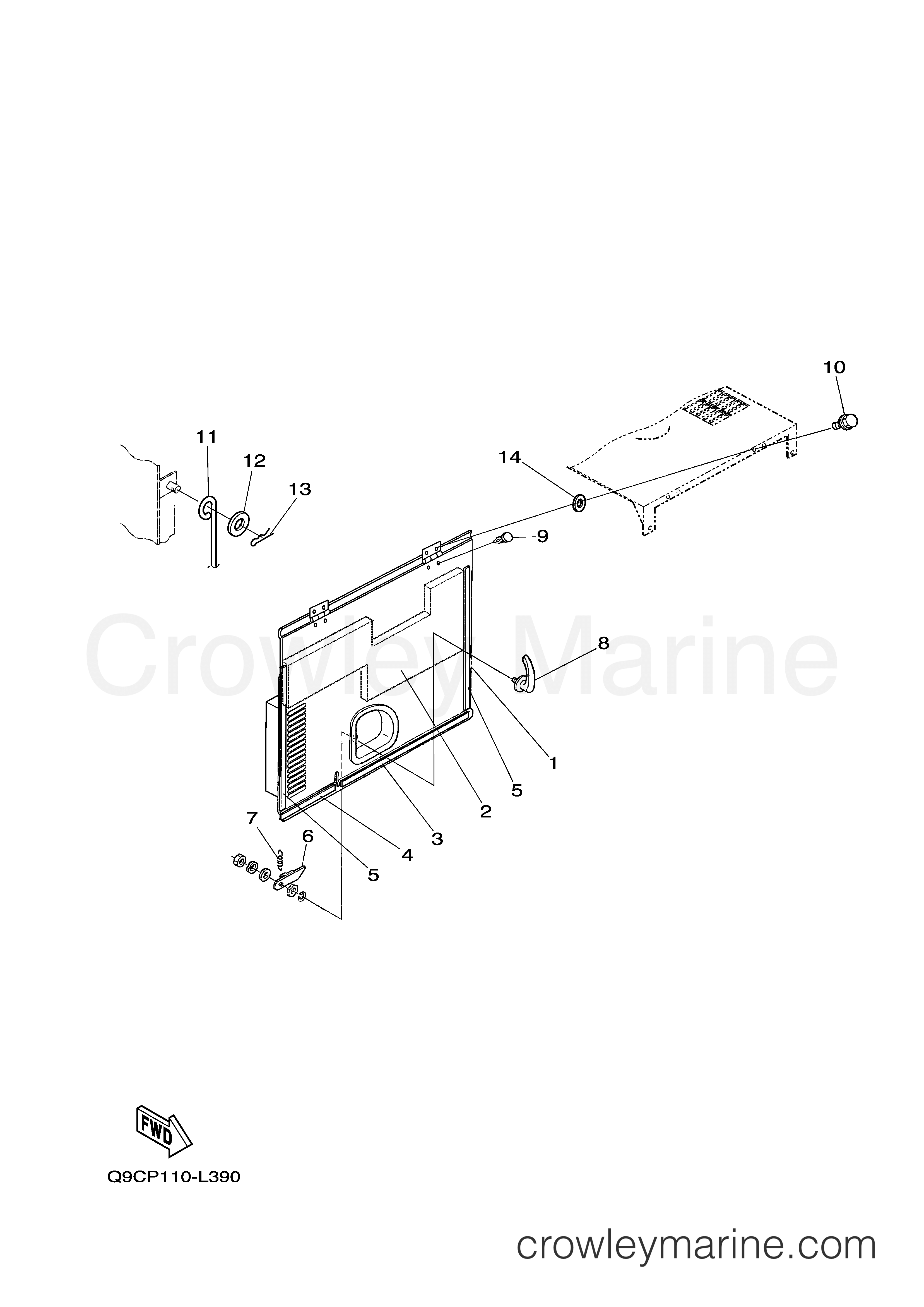

Yamaha Motors EDL11000SDE - FRAME 5
Change View:
1
Required: 1
DOOR, CHECK
Price unavailable
2
Required: 1
SPONGE, DOOR
Price unavailable
3
Required: 1
CUSHION, DOOR
Price unavailable
4
Required: 1
CUSHION, DOOR
Price unavailable
5
Required: 2
CUSHION, DOOR SIDE
Price unavailable
Clasp (Edl6500)
6
Yamaha Motors
Clasp (Edl6500)YF1-89613-00-30
Required: 1
CLASP
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Governor (Edl6500) Spring
7
Yamaha Motors
Governor (Edl6500) SpringYF1-21785-64-10
Required: 1
SPRING, GOVERNOR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
8
Required: 1
HANDLE ASSY
Price unavailable
Panel (Edl6500) Clip
9
Yamaha Motors
Panel (Edl6500) ClipYF1-89613-24-20
Required: 4
CLIP, PANEL
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
10
Required: 4
BOLT
Price unavailable
Door Stopper
11
Yamaha Motors
Door StopperYF1-89613-12-70
Required: 1
STOPPER, DOOR
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
Obsolete Yamaha Part
12
Yamaha Motors
Obsolete Yamaha PartYF0-40136-00-80
Required: 1
WASHER, PLATE
Supersedes: YF0-40135-00-80
Cross Ship
Leaves in 2-5 days
$4.00
$3.40
You save $0.60
More details
Snap Pin
13
Yamaha Motors
Snap PinYF0-55156-08-00
Required: 1
PIN, SNAP
Cross Ship
Leaves in 2-5 days
$2.05
$1.74
You save $0.31
More details
14
Required: 4
WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
