2012 Generator 11000 - EDL11000SDE FRAME 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

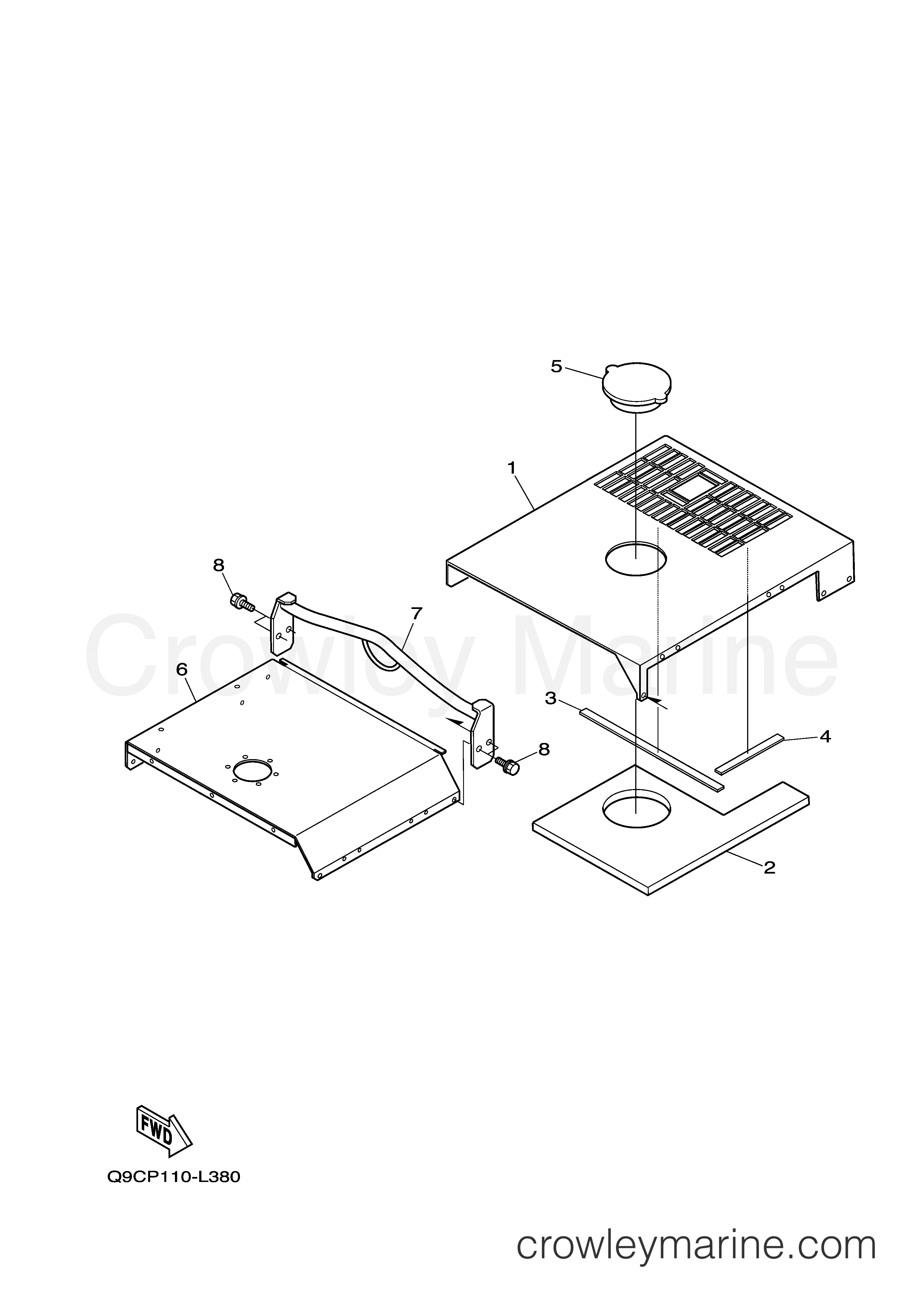

Yamaha Motors EDL11000SDE - FRAME 4
Change View:
1
Required: 1
COMP ROOF, ENGINE
Price unavailable
2
Required: 1
SPONGE, ROOF
Price unavailable
3
Required: 1
CUSHION
Price unavailable
4
Required: 1
CUSHION
Price unavailable
5
Required: 1
COVER, RADIATOR TOP
Price unavailable
6
Required: 1
COMP ROOF
Price unavailable
7
Required: 1
HANGER, ROOF
Price unavailable
8
Required: 4
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
