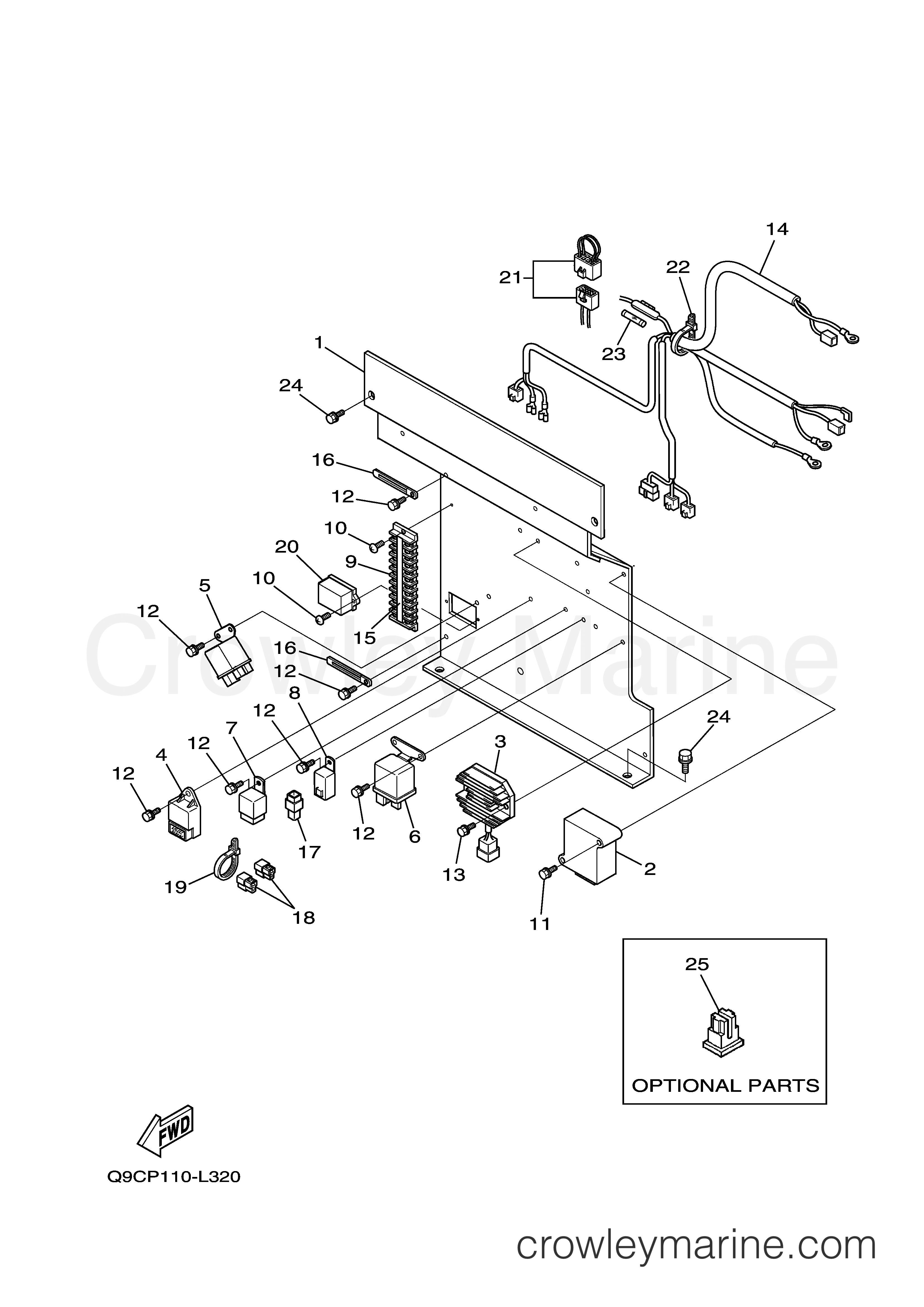

2012 Generator 11000 - EDL11000SDE CONTROL BOX 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EDL11000SDE - CONTROL BOX 2
Change View:
1
Required: 1
BRACKET
Price unavailable
Emergency Unit
2
Yamaha Motors
Emergency UnitYF1-71476-06-04
Required: 1
EMERGENCY UNIT
Cross Ship
Leaves in 2-5 days
$281.99
$239.69
You save $42.30
More details
3
Required: 1
REGULATOR COMP.
Price unavailable
Lamp Timer
4
Yamaha Motors
Lamp TimerYF1-56946-59-90
Required: 1
LAMP TIMER
Cross Ship
Leaves in 2-5 days
$162.99
$138.54
You save $24.45
More details
Assembly Relay
5
Yamaha Motors
Assembly RelayYF1-62596-02-50
Required: 1
ASSY RELAY
Cross Ship
Leaves in 2-5 days
$119.99
$101.99
You save $18.00
More details
Glow Relay Assembly
6
Yamaha Motors
Glow Relay AssemblyYF1-64156-56-00
Required: 1
RELAY, GLOW
Cross Ship
Leaves in 2-5 days
$103.99
$88.39
You save $15.60
More details
Relay Assembly
7
Yamaha Motors
Relay AssemblyYF1-74786-02-20
Required: 1
RELAY COMP. (B)
Cross Ship
Leaves in 2-5 days
$76.99
$65.44
You save $11.55
More details
8
Required: 1
RELAY
Price unavailable
9
Required: 1
AMF TERMINAL ASSY
Price unavailable
10
Required: 4
SCREW, TAPPING
Price unavailable
11
Required: 2
BOLT
Price unavailable
12
Required: 9
BOLT, W SEMS (PHILLIPS
Price unavailable
13
Required: 2
BOLT
Price unavailable
14
Required: 1
WIRE HARNESS, ENGINE
Price unavailable
15
Required: 1
MARK, AMF
Price unavailable
16
Required: 2
PLATE
Price unavailable
17
Required: 1
FUSE
Price unavailable
18
Required: 2
DIODE
Price unavailable
19
Required: 5
FASTENER
Price unavailable
20
Required: 1
ASSY CONTROLER
Price unavailable
21
Required: 1
WIRE HARNESS
Price unavailable
22
Required: 1
CLAMP, CORD
Price unavailable
23
Required: 2
FUSE
Price unavailable
Bolt
24
Yamaha Motors
BoltYF0-17545-08-16
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
25
Required: 1
FUSE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
