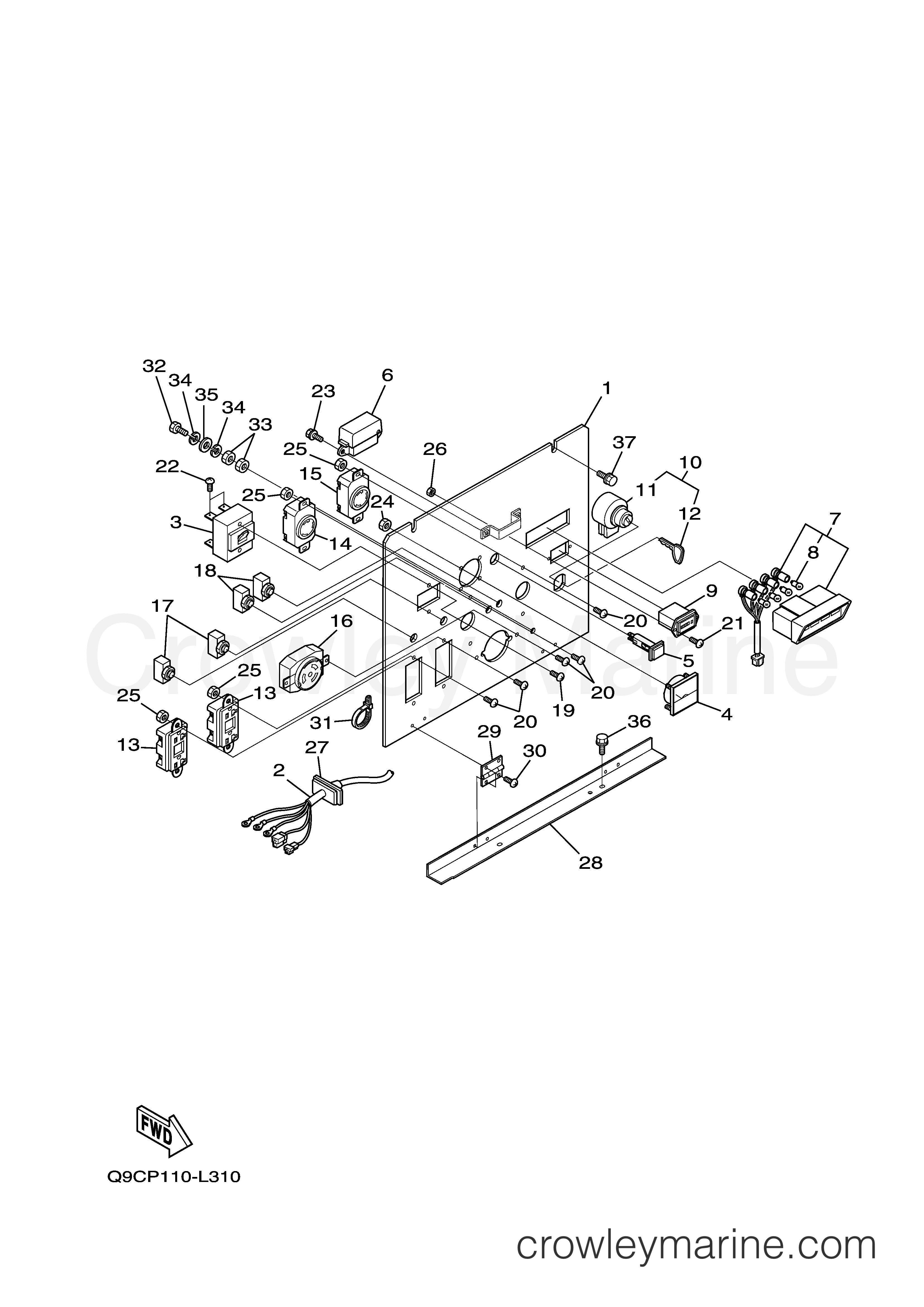

2012 Generator 11000 - EDL11000SDE CONTROL BOX 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EDL11000SDE - CONTROL BOX 1
Change View:
1
Required: 1
PLATE, PANEL
Price unavailable
2
Required: 1
WIRE HARNESS, AC
Price unavailable
3
Required: 1
BREAKER
Price unavailable
4
Required: 1
METER, VOLT
Price unavailable
5
Required: 1
ASSY LAMP, PILOT
Price unavailable
6
Required: 1
FUSE BOX ASSY
Price unavailable
Pilot Box
7
Yamaha Motors
Pilot BoxYF1-74787-02-00
Required: 1
PILOT BOX
Cross Ship
Leaves in 2-5 days
$180.99
$153.84
You save $27.15
More details
Bulb
8
Yamaha Motors
BulbYF3-41503-45-90
Required: 4
.BULB
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
9
Required: 1
METER, HOUR
Price unavailable
Starter Switch Assembly
10
Yamaha Motors
Starter Switch AssemblyYF1-52486-35-90
Required: 1
STARTER SWITCH ASSY.
Cross Ship
Leaves in 2-5 days
$143.99
$122.39
You save $21.60
More details
Starter Switch Assembly
11
Yamaha Motors
Starter Switch AssemblyYF1-52486-35-90
Required: 1
..SWITCH, STARTER
Supersedes: YF6-C0405-54-12
Cross Ship
Leaves in 2-5 days
$143.99
$122.39
You save $21.60
More details
Starter Key
12
Yamaha Motors
Starter KeyYF1-52486-37-00
Required: 1
..KEY, STARTER
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
13
Required: 2
RECEPTACLE
Price unavailable
14
Required: 1
RECEPTACLE
Price unavailable
15
Required: 1
RECEPTACLE (L-R)
Price unavailable
16
Required: 1
RECEPTACLE (CS)
Price unavailable
17
Required: 2
PROTECTOR
Price unavailable
18
Required: 2
PROTECTOR
Price unavailable
19
Required: 2
SCREW, BREAKER
Price unavailable
20
Required: 10
SCREW
Price unavailable
21
Required: 2
SCREW, ML BLACK
Price unavailable
Screw (Edl6500)
22
Yamaha Motors
Screw (Edl6500)YF1-88130-43-90
Required: 4
SCREW
Cross Ship
Leaves in 2-5 days
$4.80
$4.08
You save $0.72
More details
23
Required: 2
BOLT
Price unavailable
24
Required: 2
NUT
Price unavailable
25
Required: 8
NUT
Price unavailable
26
Required: 2
NUT
Price unavailable
Grommet
27
Yamaha Motors
GrommetYF1-88062-01-80
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.99
$8.49
You save $1.50
More details
28
Required: 1
BRACKET
Price unavailable
29
Required: 2
HINGE, PANEL
Price unavailable
30
Required: 8
SCREW, TAPPING
Price unavailable
31
Required: 2
FASTENER
Price unavailable
32
Required: 1
BOLT
Price unavailable
33
Required: 2
NUT
Price unavailable
34
Required: 2
WASHER, BS
Price unavailable
35
Required: 1
WASHER, PLAIN
Price unavailable
Bolt
36
Yamaha Motors
BoltYF0-17545-06-14
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
Bolt
37
Yamaha Motors
BoltYF0-17545-06-14
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
