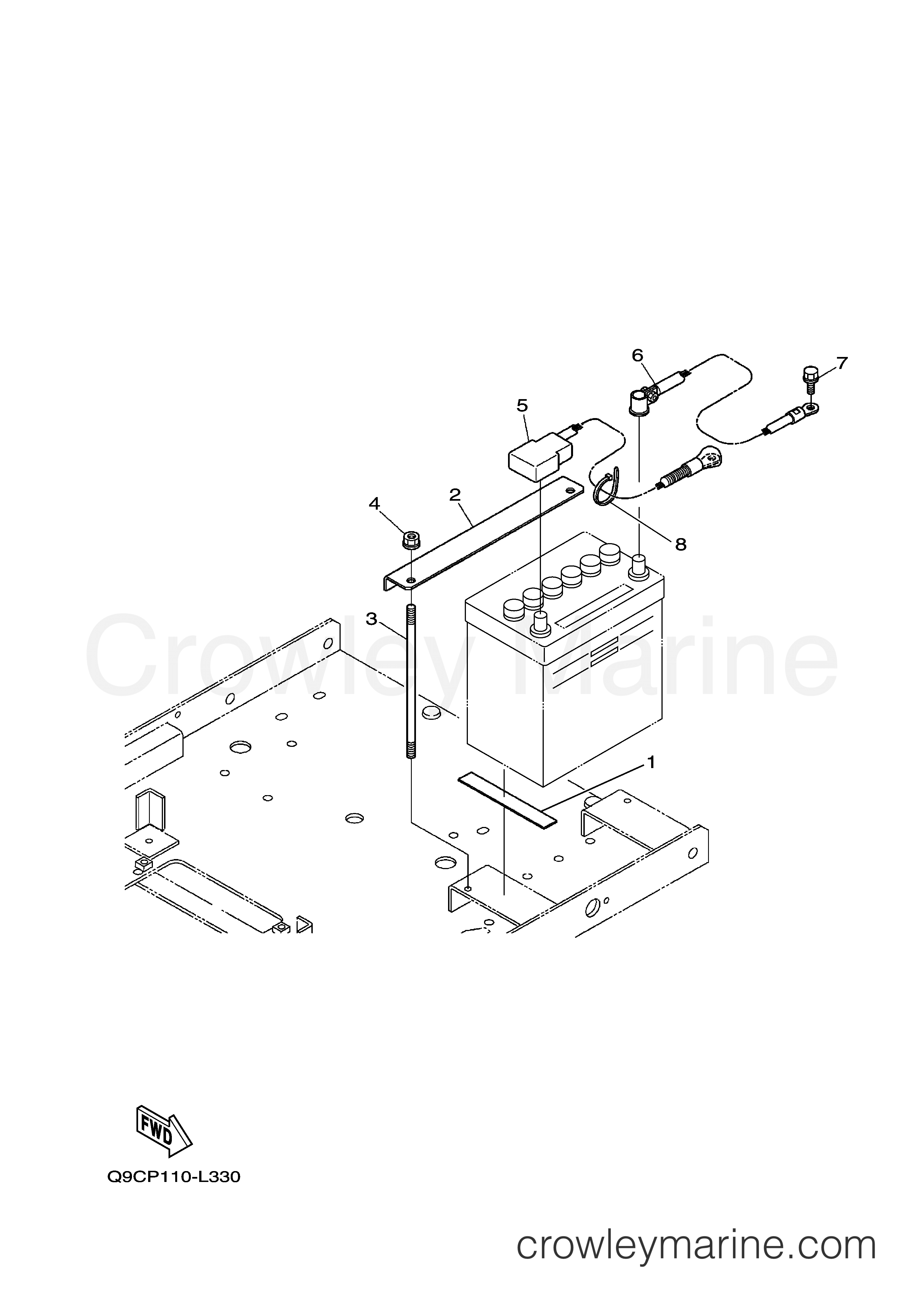

2012 Generator 11000 - EDL11000SDE BATTERY TRAY diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EDL11000SDE - BATTERY TRAY
Change View:
1
Required: 2
CUSHION (BT)
Price unavailable
2
Required: 1
SUPPORT
Price unavailable
3
Required: 2
BOLT, BATTERY
Price unavailable
Flange Nut
4
Yamaha Motors
Flange NutYF0-27515-00-60
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.55
$0.92
You save $-0.37
More details
5
Required: 1
CORD, BATTERY
Price unavailable
6
Required: 1
CORD, BATTERY (-)
Price unavailable
7
Required: 1
BOLT, FLANGE
Price unavailable
8
Required: 3
FASTENER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
