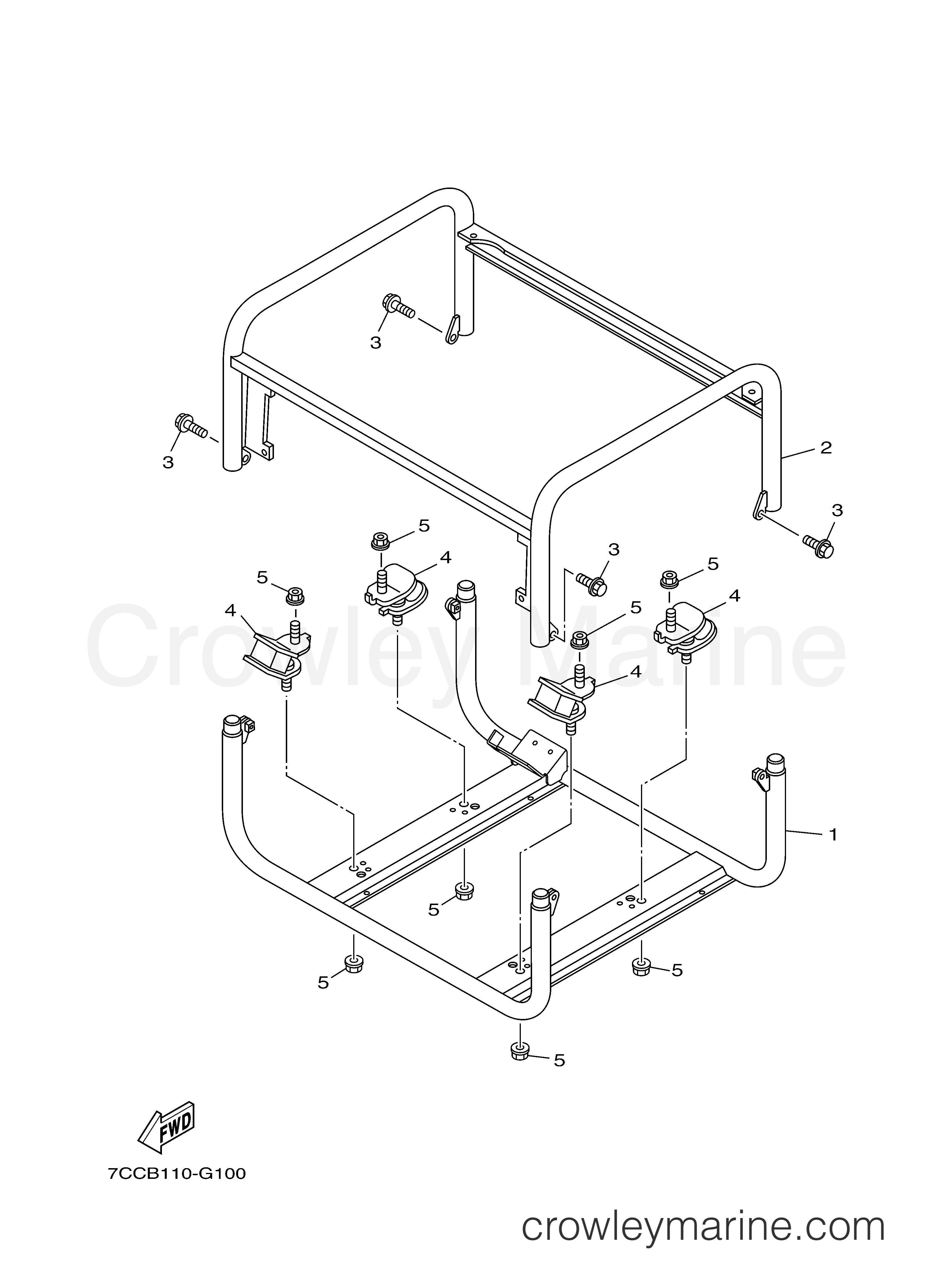

2008 Generator 5200 - EF5200DEM FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EF5200DEM - FRAME
Change View:
Frame Complete
1
Yamaha Motors
Frame Complete7C5-F2840-00-00
Required: 1
FRAME COMP.
Supersedes: 7CB-F2840-00-00
Cross Ship
Leaves in 2-5 days
$211.99
$180.19
You save $31.80
More details
Frame Complete
2
Yamaha Motors
Frame Complete7CB-F2850-10-00
Required: 1
FRAME COMP. 2
Cross Ship
Leaves in 2-5 days
$174.99
$148.74
You save $26.25
More details
95817-06010-00
3
Yamaha Motors
95817-06010-0095812-06010-00
Required: 4
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
INSULATOR, MOUNTING
4
Yamaha Motors
INSULATOR, MOUNTING7C6-F2891-00-00
Required: 4
INSULATOR, MOUNTING
Supersedes: 7CC-F2891-00-00
Cross Ship
Leaves in 2-5 days
$58.99
$50.14
You save $8.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
