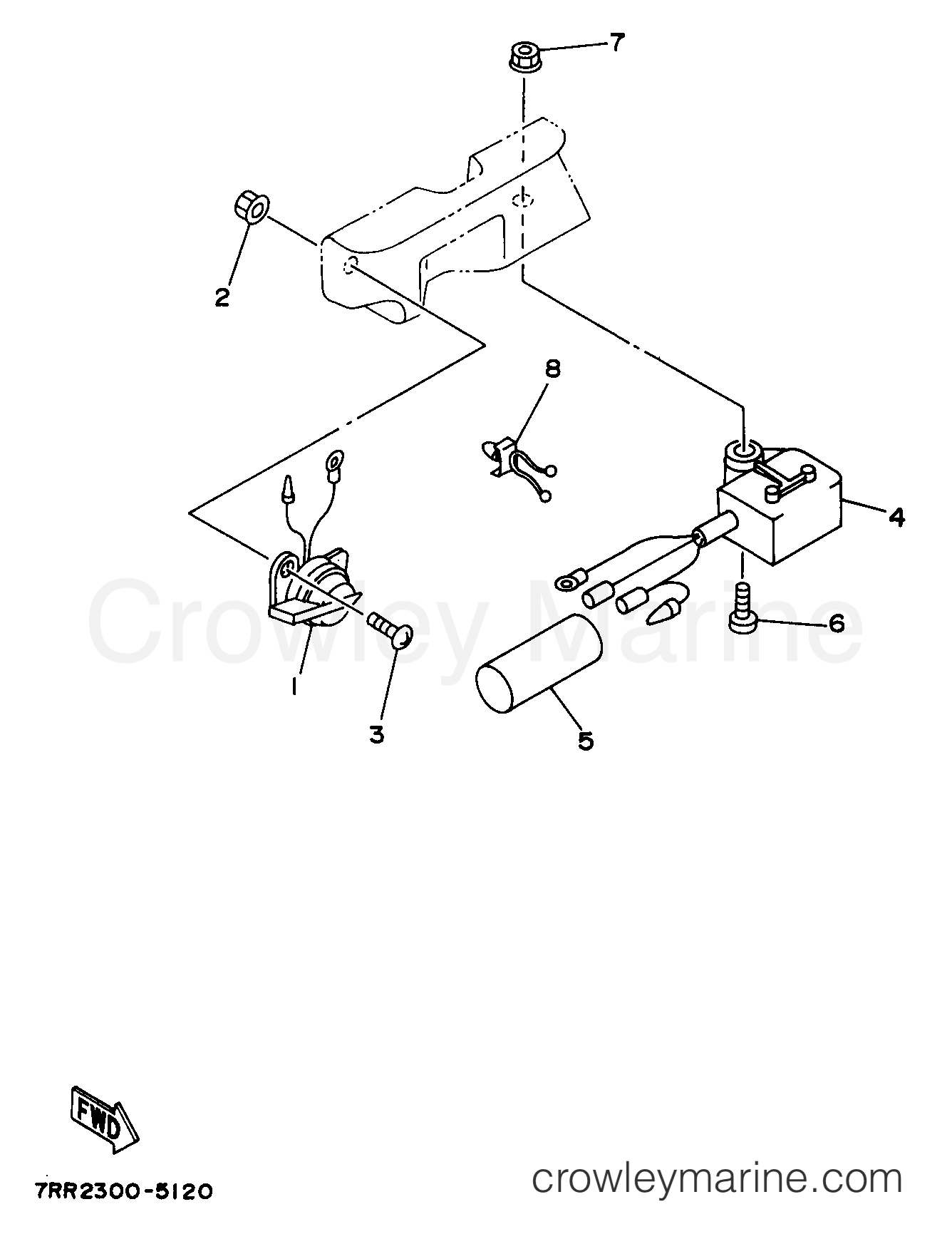

2007 Generator 1600 - EF1600A ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Engine Stop Switch Assembly7CN-H2550-00-00

Required: 1

ENGINE STOP SWITCH ASSY

Supersedes: 7NN-82550-00-00

In stock

Only 1 remaining

~~$17.99~~

$15.29

You save $2.70

More details

Yamaha Motors

Flange Nut95780-06500-00

Required: 1

NUT, FLANGE

Supersedes: 95704-06500-00

In stock

Only 2 remaining

~~$2.95~~

$2.51

You save $0.44

More details

Yamaha Motors

Pan Head Screw98507-06014-00

Required: 1

SCREW, PAN HEAD

In stock

Only 1 remaining

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

Oil Warning Unit7NN-85690-10-00

Required: 1

OIL WARNING UNIT

~~$68.99~~

$58.64

You save $10.35

TUBE

~~$0.95~~

$0.81

You save $0.14

More details

Yamaha Motors

Pan Head Screw98517-06020-00

Required: 1

SCREW, PAN HEAD

In stock

Only 5 remaining

~~$2.35~~

$2.00

You save $0.35

More details

Yamaha Motors

Flange Nut95780-06500-00

Required: 1

NUT, FLANGE

Supersedes: 95704-06500-00

In stock

Only 2 remaining

~~$2.95~~

$2.51

You save $0.44

CLAMP

In stock

Only 1 remaining

~~$4.05~~

$3.44

You save $0.61

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders

2007 Generator 1600 - EF1600A ELECTRICAL 2 diagram
