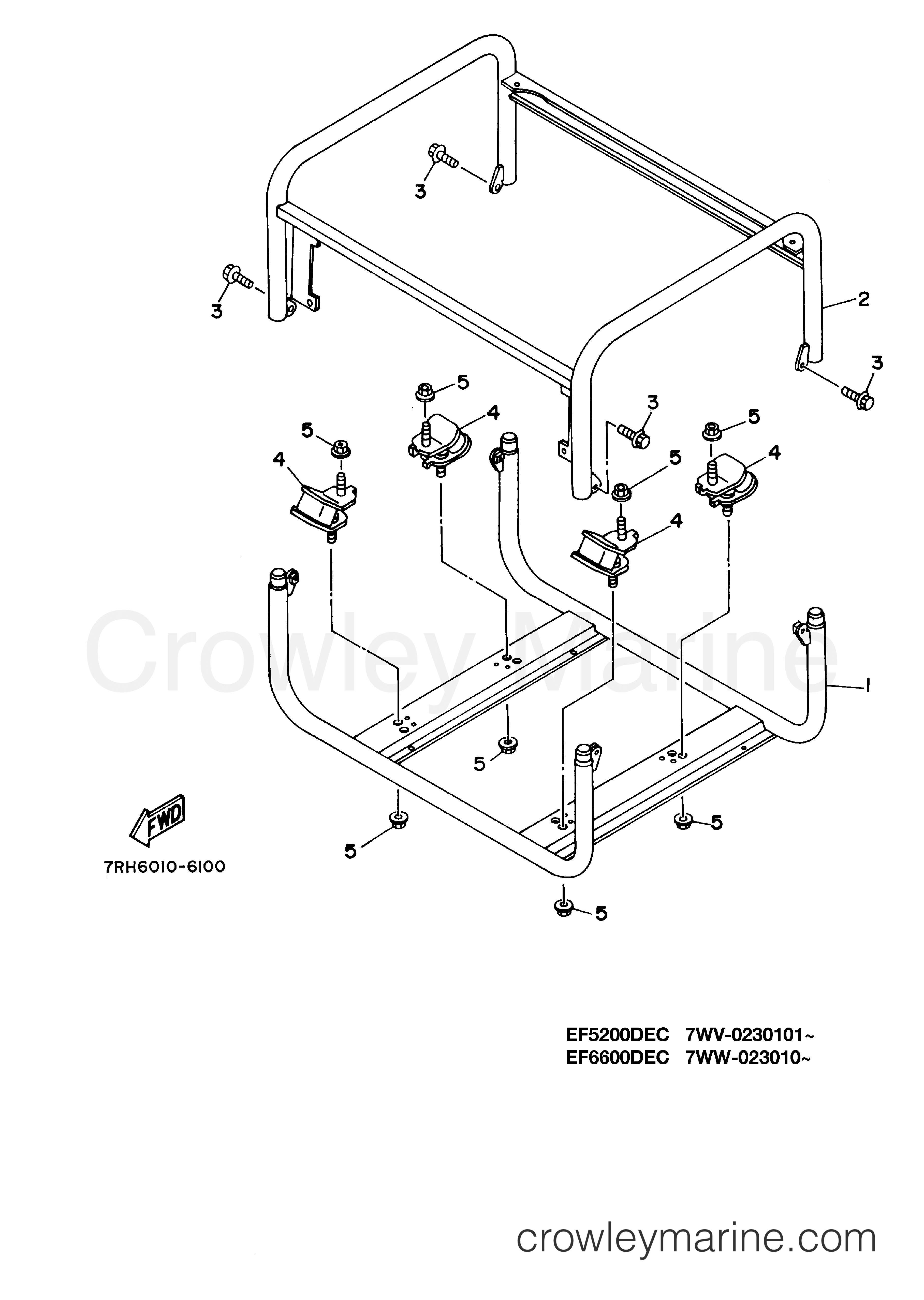

2001 Generator 5200 - EF5200DEY FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Frame Complete7RH-22840-10-00

Required: 1

FRAME COMP.

~~$184.99~~

$157.24

You save $27.75

More details

Yamaha Motors

Frame Complete7RH-22840-00-00

Required: 1

FRAME COMP.

~~$158.99~~

$135.14

You save $23.85

More details

Yamaha Motors

FRAME COMP. 27RH-22850-11-00

Required: 1

FRAME COMP. 2

~~$231.99~~

$197.19

You save $34.80

More details

Yamaha Motors

Frame Complete7RH-22850-12-00

Required: 1

FRAME COMP. 2

~~$334.99~~

$284.74

You save $50.25

More details

Yamaha Motors

Flange Bolt95817-06010-00

Required: 4

BOLT, FLANGE

Supersedes: 95807-06010-00

In stock

Only 4 remaining

~~$5.49~~

$4.67

You save $0.82

More details

Yamaha Motors

Mounting Insulator7RH-22891-00-00

Required: 4

INSULATOR, MOUNTING

~~$26.99~~

$22.94

You save $4.05

More details

Yamaha Motors

Flange Nut95707-10500-00

Required: 8

NUT, FLANGE

In stock

Only 3 remaining

~~$2.15~~

$1.83

You save $0.32

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
