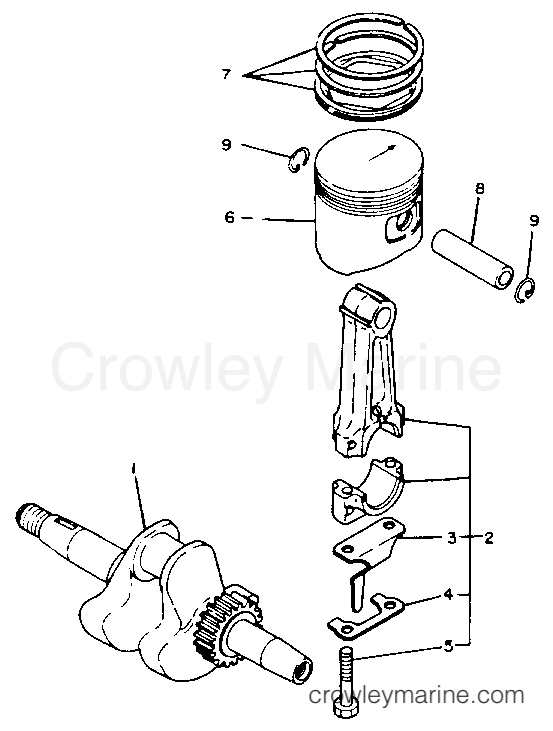

1998 Generator 600 - EF600 CRANKSHAFT PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EF600 - CRANKSHAFT PISTON
Change View:
Crankshaft Assembly
1
Yamaha Motors
Crankshaft Assembly 7X9-11400-00-00
Required: 1
CRANKSHAFT ASSEMBLY
Cross Ship
Leaves in 2-5 days
$205.99
$175.09
You save $30.90
More details
Connecting Rod Assembly
2
Yamaha Motors
Connecting Rod Assembly7X9-11650-00-00
Required: 1
CONNECTING ROD ASSEMBLY
Cross Ship
Leaves in 2-5 days
$24.99
$21.24
You save $3.75
More details
Piston Std
6
Yamaha Motors
Piston Std7X9-11631-09-96
Required: 1
PISTON STD. (STD) (7X9-11631-01-96)
Cross Ship
Leaves in 2-5 days
$94.99
$80.74
You save $14.25
More details
Piston
6
Yamaha Motors
Piston7X9-11635-01-00
Required: 1
PISTON 1 O/S 0.25 (1ST O/S 0.25MM)
Cross Ship
Leaves in 2-5 days
$86.99
$73.94
You save $13.05
More details
Piston
6
Yamaha Motors
Piston7X9-11636-01-00
Required: 1
PISTON 2 O/S 0.50 (2ND O/S 0.50MM)
Cross Ship
Leaves in 2-5 days
$86.99
$73.94
You save $13.05
More details
7X9-11610-03-00
7
Yamaha Motors
7X9-11610-03-007X9-11610-02-00
Required: 1
PISTON RINGSET STD (STD) (7X9-11610-00-00)
Supersedes: 7X9-11610-01-00
Cross Ship
Leaves in 2-5 days
$40.99
$34.84
You save $6.15
More details
Obsolete Yamaha Part
7
Yamaha Motors
Obsolete Yamaha Part7X9-11610-13-00
Required: 1
PISTON RINGSET 1ST (1ST O/S)
Supersedes: 7X9-11610-11-00
Cross Ship
Leaves in 2-5 days
$48.99
$41.64
You save $7.35
More details
Piston Ring Set 2ND
7
Yamaha Motors
Piston Ring Set 2ND7X9-11610-23-00
Required: 1
PISTON RINGSET 2ND (2ND O/S)
Supersedes: 7X9-11610-21-00
Cross Ship
Leaves in 2-5 days
$48.99
$41.64
You save $7.35
More details
Piston Pin
8
Yamaha Motors
Piston Pin7X9-11633-00-00
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
