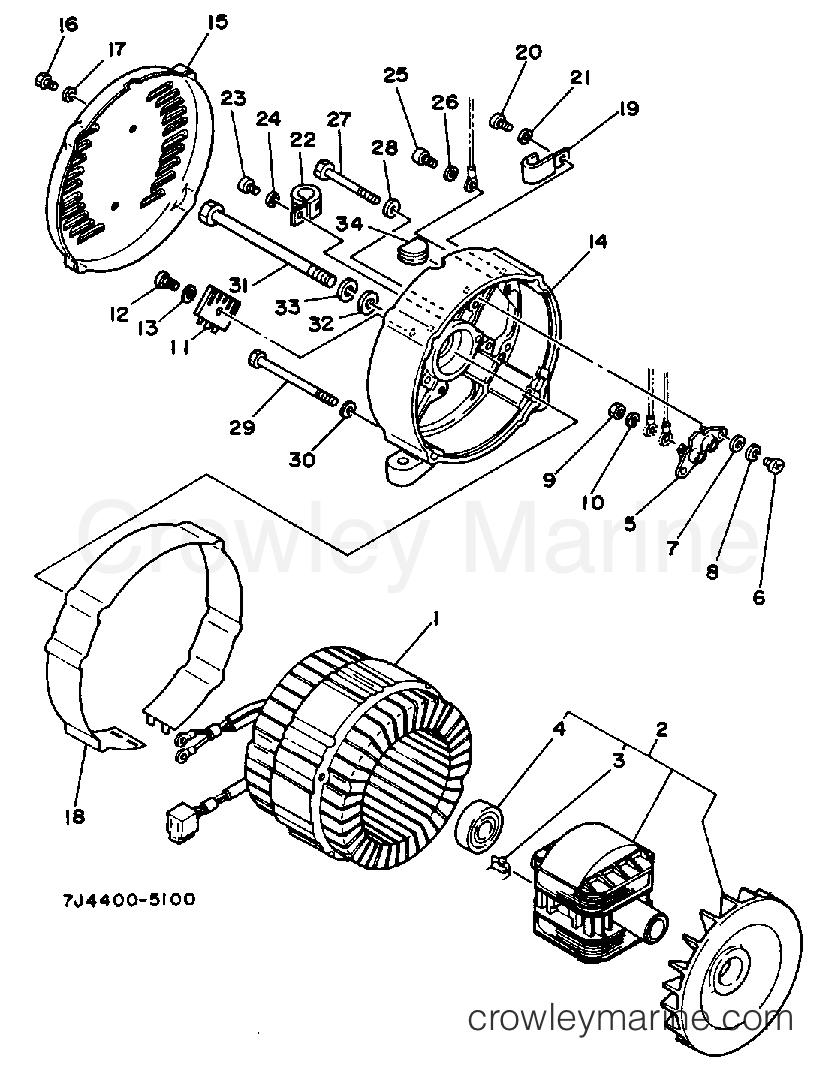

1998 Generator 2800 - EF2800 GENERATOR (800101~) diagram
1
Yamaha Motors
Stator Assembly7J4-87150-02-00
Required: 1
STATOR ASSEMBLY
$621.34
You save $109.65
2
Yamaha Motors
Rotor Assembly7HF-87160-00-00
Required: 1
ROTOR ASSEMBLY
$435.19
You save $76.80
3
Yamaha Motors
Rectifier Assembly75J-87115-01-00
Required: 4
.RECIFIER ASSEMBLY
Supersedes: 75J-87115-00-00
$11.47
You save $2.02
$19.54
You save $3.45
5
Yamaha Motors
Terminal Sub Assembly7NJ-87220-00-00
Required: 1
TERMINAL ASSEMBLYSUB-ASSEMBLY 1
Supersedes: 7H9-87220-00-00
$19.54
You save $3.45
6
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.91
You save $0.69
7
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
8
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
$8.07
You save $1.42
10
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
In stock
Only 1 remaining
$36.54
You save $6.45
12
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.91
You save $0.69
13
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
$101.14
You save $17.85
15
Yamaha Motors
READ END COVER7J3-87174-00-86
Required: 1
COVER, REAR END
$20.39
You save $3.60
16
Yamaha Motors
Bolt97017-06010-00
Required: 2
BOLT
Supersedes: 97011-06010-00
$3.44
You save $0.61
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.42
You save $0.43
18
Yamaha Motors
Unavailable In Price Book[77-X8715-30-00
Required: 1
UNAVAILABLE IN PRICE BOOK
No longer availableSearch Nationwide Inventory
Price unavailable
19
Yamaha Motors
Clamp90465-06376-00
Required: 1
CLAMP
Supersedes: 90465-08146-00
$8.92
You save $1.57
20
Yamaha Motors
Screw97885-05010-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 98580-05010-00
In stock
Only 2 remaining
$2.59
You save $0.46
21
Yamaha Motors
Screw97885-05010-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 98580-05010-00
In stock
Only 2 remaining
$2.59
You save $0.46
21
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
22
Yamaha Motors
Clamp90462-10236-00
Required: 1
CLAMP
Supersedes: 90462-05061-00
$9.77
You save $1.72
24
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
25
Yamaha Motors
Screw97885-05010-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 98580-05010-00
In stock
Only 2 remaining
$2.59
You save $0.46
26
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
27
Yamaha Motors
HEXAGON BOLT97027-06075-00
Required: 2
BOLT, HEXAGON
Supersedes: 97021-06075-00
$2.38
You save $0.42
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.42
You save $0.43
29
Yamaha Motors
Unavailable In Price Book[97-32206-14-00
Required: 4
UNAVAILABLE IN PRICE BOOK
No longer availableSearch Nationwide Inventory
Price unavailable
30
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
31
Yamaha Motors
Hexagon Bolt97022-10180-00
Required: 1
BOLT, HEXAGON
$4.67
You save $0.82
32
Yamaha Motors
Plate Washer90201-100F7-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57
33
Yamaha Motors
Spring Washer92990-10100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.49
$2.89
You save $0.51
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
