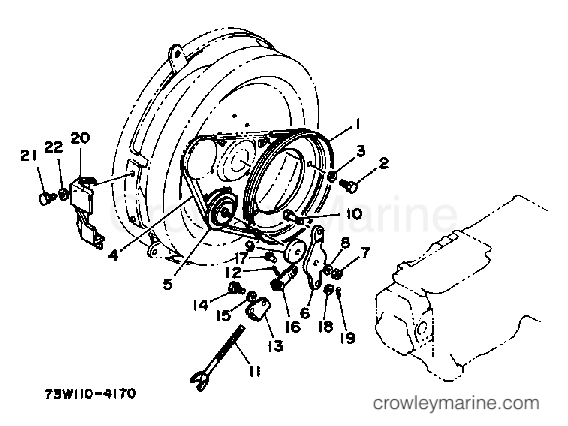

1998 Generator 5000 - EDY5000DVE TENSION diagram

1
Yamaha Motors
Cooling Fan PulleyYF1-49417-42-81
Required: 1
PULLEY, COOLING FAN
$50.99
You save $9.00
$2.25
You save $0.40

3
Yamaha Motors
Spring Washer92907-08100-00
Required: 3
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42

4
Yamaha Motors
Fan Belt, (FM37.6) (FM37.6)YF1-49119-70-12
Required: 1
BELT, FAN (FM37.6) (FM37.6)
$45.89
You save $8.10
$17.84
You save $3.15

5
Yamaha Motors
Tension PulleyYF1-49117-43-20
Required: 1
PULLEY, TENSION
$18.69
You save $3.30

6
Yamaha Motors
Transom Pulley SupportYF1-49217-44-10
Required: 1
SUPPORT, TNSN PLY
$16.14
You save $2.85

6
Yamaha Motors
Tension PulleyYF1-49117-43-20
Required: 1
PULLEY, TENSION
$18.69
You save $3.30
In stock
Only 1 remaining
$7.22
You save $1.27

8
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42
$3.65
You save $0.65
$2.98
You save $0.52
$15.72
You save $2.77
No longer availableSearch Nationwide Inventory
Price unavailable

13
Yamaha Motors
Tension Bolt GuideYF1-49117-49-50
Required: 1
GUIDE, TENSION BOLT
$8.49
You save $1.50

13
Yamaha Motors
Tension Bolt GuideYF1-49217-49-50
Required: 1
GUIDE, TENSION BOLT
$12.32
You save $2.17
No longer availableSearch Nationwide Inventory
Price unavailable

15
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42

16
Yamaha Motors
Tension Pulley ArmYF1-49117-43-60
Required: 1
ARM, TENSION PULLEY
$14.87
You save $2.62
No longer availableSearch Nationwide Inventory
Price unavailable

18
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
$2.08
You save $0.37
$9.12
You save $1.61
$8.63
You save $1.52
$0.34
You save $0.06

22
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING (YF0-45125-00-60)
Supersedes: YK0-45125-00-60
In stock
5+ in stock
$2.93
You save $0.52
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
