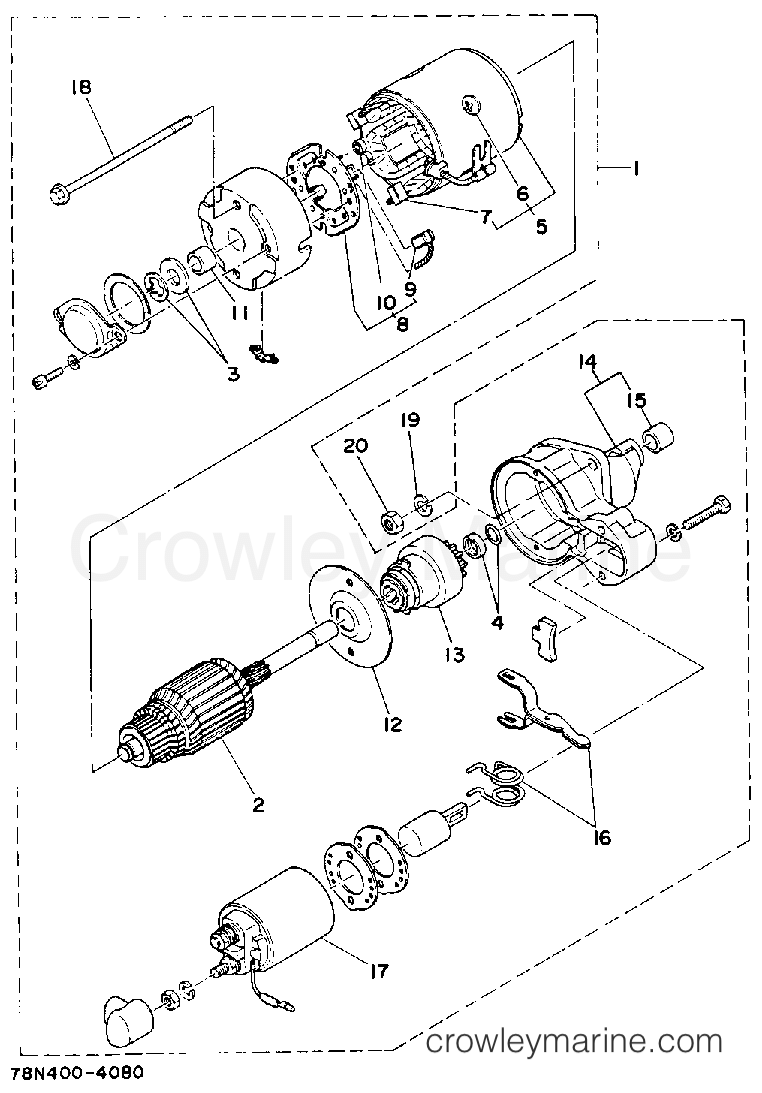

1998 Generator 5000 - EDA5000DVE STARTING MOTOR diagram

1
Yamaha Motors
Starting Motor AssemblyYA2-10705-02-10
Required: 1
STARTING MOTOR ASSEMBLY
$947.74
You save $167.25

2
Yamaha Motors
ARMATURE ASSEMBLY.YA2-10705-32-08
Required: 1
.ARMATURE ASSEMBLY
$184.44
You save $32.55

3
Yamaha Motors
Thrust Washer KitYA2-10705-33-08
Required: 1
.THRUST WASHER KIT
$5.52
You save $0.97

4
Yamaha Motors
Pinion Stopper SetYA2-10705-34-08
Required: 1
.PINION STOPPER SET
$10.19
You save $1.80

5
Yamaha Motors
Field Coil AssemblyYA2-10705-35-08
Required: 1
.FIELD COIL ASSEMBLY
$131.74
You save $23.25

6
Yamaha Motors
Pole Core ScrewYA2-10705-08-08
Required: 4
..SCREW, POLE CORE
$1.78
You save $0.32

7
Yamaha Motors
Brush (+) (+)YA2-10705-39-08
Required: 2
..BRUSH (+) (+)
$20.39
You save $3.60

8
Yamaha Motors
Brush Holder AssemblyYA2-10705-38-08
Required: 1
.BRUSH HOLDER ASSEMBLY
$75.64
You save $13.35

9
Yamaha Motors
Brush (-) (-)YA2-10705-40-08
Required: 2
..BRUSH (-) (-)
$21.24
You save $3.75

10
Yamaha Motors
Brush SpringYA2-10705-41-08
Required: 4
..SPRING, BRUSH
$8.92
You save $1.57

11
Yamaha Motors
Rear Cover MetalYA2-10705-42-08
Required: 1
.REAR COVER METAL
$23.79
You save $4.20
$7.64
You save $1.35

13
Yamaha Motors
Pinion AssemblyYA2-10705-44-08
Required: 1
.PINION ASSEMBLY
$273.69
You save $48.30

14
Yamaha Motors
Gear Case AssemblyYA2-10705-45-08
Required: 1
.GEAR CASE ASSEMBLY
$324.69
You save $57.30

15
Yamaha Motors
Gear Case MetalYA2-10705-47-08
Required: 1
..GEAR CASE METAL
$16.57
You save $2.92

16
Yamaha Motors
Shift Lever KitYA2-10705-46-08
Required: 1
.SHIFT LEVER KIT
$45.04
You save $7.95

17
Yamaha Motors
Magnetic SwitchYA2-10705-48-08
Required: 1
.MAGNETIC SWITCH
$295.79
You save $52.20

18
Yamaha Motors
Through BoltYA2-10705-49-08
Required: 2
.BOLT, THROUGH
$8.07
You save $1.42
$1.15
You save $0.20
In stock
Only 1 remaining
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
