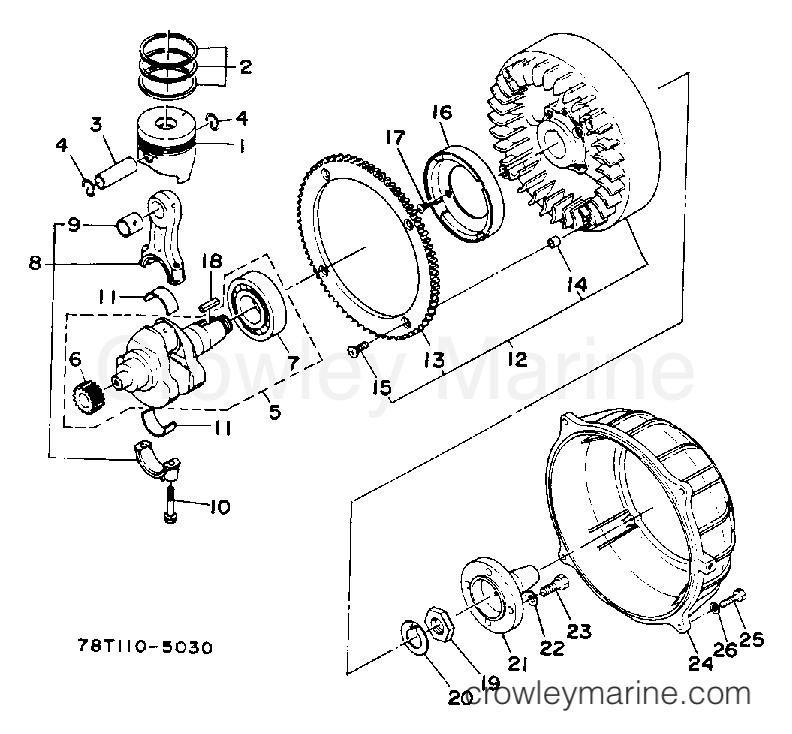

1998 Generator 5000 - EDA5000DVE CRANKSHAFT PISTON diagram
1
Yamaha Motors
Obsolete Yamaha PartYA2-31234-01-43
Required: 1
PISTON (STD) (STD)
Supersedes: YA2-31234-01-13
$122.39
You save $21.60
1
Yamaha Motors
PistonYA2-31234-02-13
Required: 1
PISTON (O/S 0.25) (O/S 0.25MM)
$84.14
You save $14.85
1
Yamaha Motors
Obsolete Yamaha PartYA2-31234-03-43
Required: 1
PISTON (O/S 0.50) (O/S 0.50MM)
Supersedes: YA2-31234-03-13
$220.62
You save $38.93
2
Yamaha Motors
Obsolete Yamaha PartYA2-29235-01-27
Required: 1
PISTON RINGSET STD (STD)
Supersedes: YA2-29235-01-17
$75.64
You save $13.35
2
Yamaha Motors
Obsolete Yamaha PartYA2-29235-03-27
Required: 1
PISTON RINGSET .50 (O/S 0.50)
Supersedes: YA2-29235-03-17
$105.39
You save $18.60
2
Yamaha Motors
Piston Ring Set (O/S)YA2-29235-02-27
Required: 1
PISTON RINGSET .25 (0.25)
Supersedes: YA2-29235-02-17
$84.14
You save $14.85
$19.54
You save $3.45
$2.63
You save $0.47
5
Yamaha Motors
Obsolete Yamaha PartYA2-62201-02-01
Required: 1
CRANKSHAFT ASSEMBLY.
Supersedes: YA2-31201-01-01
$754.79
You save $133.20
6
Yamaha Motors
Crankshaft GearYA2-28223-01-03
Required: 1
.GEAR, CRANKSHFT
$57.79
You save $10.20
7
Yamaha Motors
Ball BearingYA0-60040-00-30
Required: 1
.BALL BEARING
$59.49
You save $10.50
8
Yamaha Motors
CONNECTING ROD Assembly99999-03335-00
Required: 1
CONNECTING ROD ASSEMBLY
Supersedes: YA2-31225-01-00
$560.99
You save $99.00
9
Yamaha Motors
Small End Bush YA2-28229-01-13
Required: 1
.BUSH, SMALL END
$7.64
You save $1.35
$3.70
You save $0.65
11
Yamaha Motors
U/S.25 (U/S 0.25MM) BearingYA2-28228-02-13
Required: 2
BEAR, LG.END U/S.25 (U/S 0.25MM)
$23.79
You save $4.20
11
Yamaha Motors
U/S.50 (U/S 0.50MM) BearingYA2-28228-03-13
Required: 2
BEAR, LG.END U/S.50 (U/S 0.50MM)
$28.89
You save $5.10
11
Yamaha Motors
Large Bearing, StandardYA2-28228-01-13
Required: 2
BEARING, LG.END STD (STD)
$22.09
You save $3.90
12
Yamaha Motors
Flywheel AssemblyYA2-31224-02-11
Required: 1
FLYWHEEL ASSEMBLY.
$190.39
You save $33.60
13
Yamaha Motors
Unavailable In Price BookYA2-28701-03-00
Required: 1
.UNAVAILABLE IN PRICE BOOK
No longer availableSearch Nationwide Inventory
Price unavailable
$4.57
You save $0.81
$2.00
You save $0.35
$115.59
You save $20.40
$2.16
You save $0.38
$4.67
You save $0.82
$16.57
You save $2.92
$3.70
You save $0.65
$54.13
You save $9.55
$1.23
You save $0.22
No longer availableSearch Nationwide Inventory
Price unavailable
24
Yamaha Motors
ADPATERYA2-28178-01-13
Required: 4
ADAPTER (GEN.) (GENERATOR)
$62.89
You save $11.10
$2.34
You save $0.41
$1.15
You save $0.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
