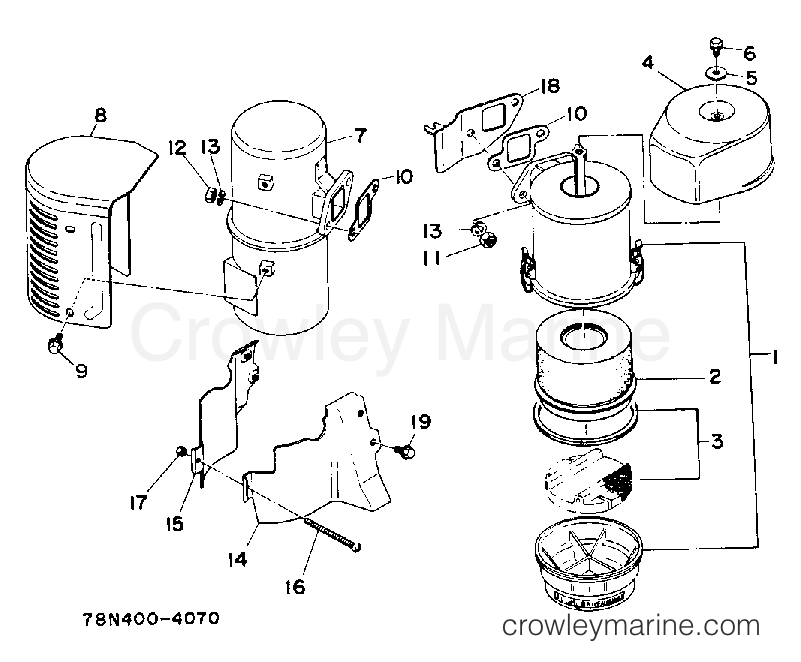

1998 Generator 5000 - EDA5000DVE AIR CLEANER MUFFLER diagram

1
Yamaha Motors
AIR CLEANER ASSYYA2-31326-05-00
Required: 1
AIR CLEANER ASSEMBLY
Supersedes: YA2-31326-01-00
$152.99
You save $27.00

2
Yamaha Motors
Element AssemblyYA2-28326-00-08
Required: 1
ELEMENT ASSEMBLY
$33.99
You save $6.00
$12.32
You save $2.17

4
Yamaha Motors
Cap (Air Cleaner)YA2-31350-09-03
Required: 1
CAP (AIR CLNR.) (AIR CLEANER)
$16.57
You save $2.92
$2.51
You save $0.44

6
Yamaha Motors
Bolt & Washer AssemblyYA9-80050-60-10
Required: 1
BOLT & WASHER ASSEMBLY.
$1.91
You save $0.34

7
Yamaha Motors
MUFFLER ASSEMBLY.YA2-28301-01-11
Required: 1
MUFFLER ASSEMBLY.
$84.99
You save $15.00

8
Yamaha Motors
Muffler Cover AssemblyYA2-28342-01-01
Required: 1
MUFFLER COVER ASSEMBLY
$23.79
You save $4.20
$2.76
You save $0.49

10
Yamaha Motors
Obsolete Yamaha PartYA2-28350-23-03
Required: 2
GASKET, MUFFLER (MUFFLER)
Supersedes: YA2-28350-06-03
$7.22
You save $1.27
In stock
Only 1 remaining
$7.22
You save $1.27
$3.74
You save $0.66
$1.15
You save $0.20

14
Yamaha Motors
BAFFLE, CYLINDER.1YA2-31526-01-02
Required: 1
BAFFLE, CYLINDER.1
$6.79
You save $1.20

15
Yamaha Motors
Baffle Cylinder(YA2-31527-01-03)
Required: 1
BAFFLE, CYLINDER.2
No longer availableSearch Nationwide Inventory
Price unavailable

16
Yamaha Motors
Pan Head Screw(YA0-14005-00-40)
Required: 1
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
Price unavailable
In stock
Only 5 remaining
$8.07
You save $1.42

18
Yamaha Motors
Baffle CylinderYA2-29528-01-02
Required: 1
BAFFLE, CYLINDER.3
$16.57
You save $2.92

19
Yamaha Motors
Flange Bolt (M6X12Mm)YA0-11006-00-20
Required: 2
FLANGE BOLT (M6X12MM)
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
