All diagrams for this model

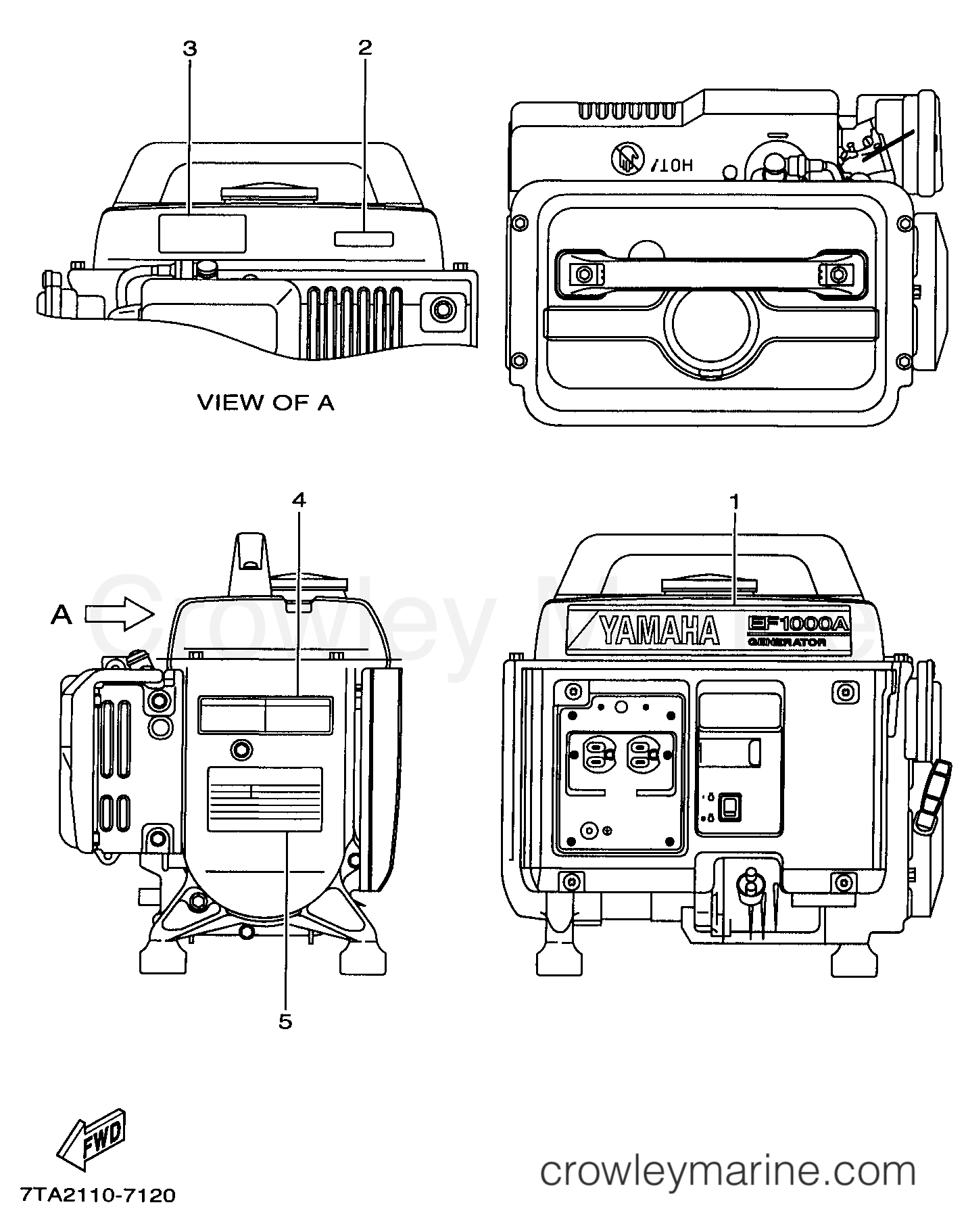

1997 Generator 1000 - EF1000AX LABELS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EF1000AX - LABELS
Change View:
EMBLEM 1 (YAMAHA EF2000IS)
1
Yamaha Motors
EMBLEM 1 (YAMAHA EF2000IS)7TA-24161-11-00
Required: 1
EMBLEM 1
Supersedes: 7TA-24161-10-00
Cross Ship
Leaves in 2-5 days
$8.99
$7.64
You save $1.35
More details
Caution (Hot Exhaust) Label
2
Yamaha Motors
Caution (Hot Exhaust) Label7Y0-2415A-10-00
Required: 1
LABEL, CAUTION (HOT EXHAUST)
Cross Ship
Leaves in 2-5 days
$3.10
$2.81
You save $0.29
More details
EPA Plate 2 (California)
3
Yamaha Motors
EPA Plate 2 (California)7FL-2179R-01-00
Required: 1
PLATE, EPA 2 (CALIFORNIA)
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Emblem (Warning)
4
Yamaha Motors
Emblem (Warning)7TA-24162-10-00
Required: 1
EMBLEM 2 (WARNING)
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
Caution (Warning) Label
5
Yamaha Motors
Caution (Warning) Label73H-2415A-00-00
Required: 1
LABEL, CAUTION (WARNING)
Cross Ship
Leaves in 2-5 days
$4.25
$3.61
You save $0.64
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
