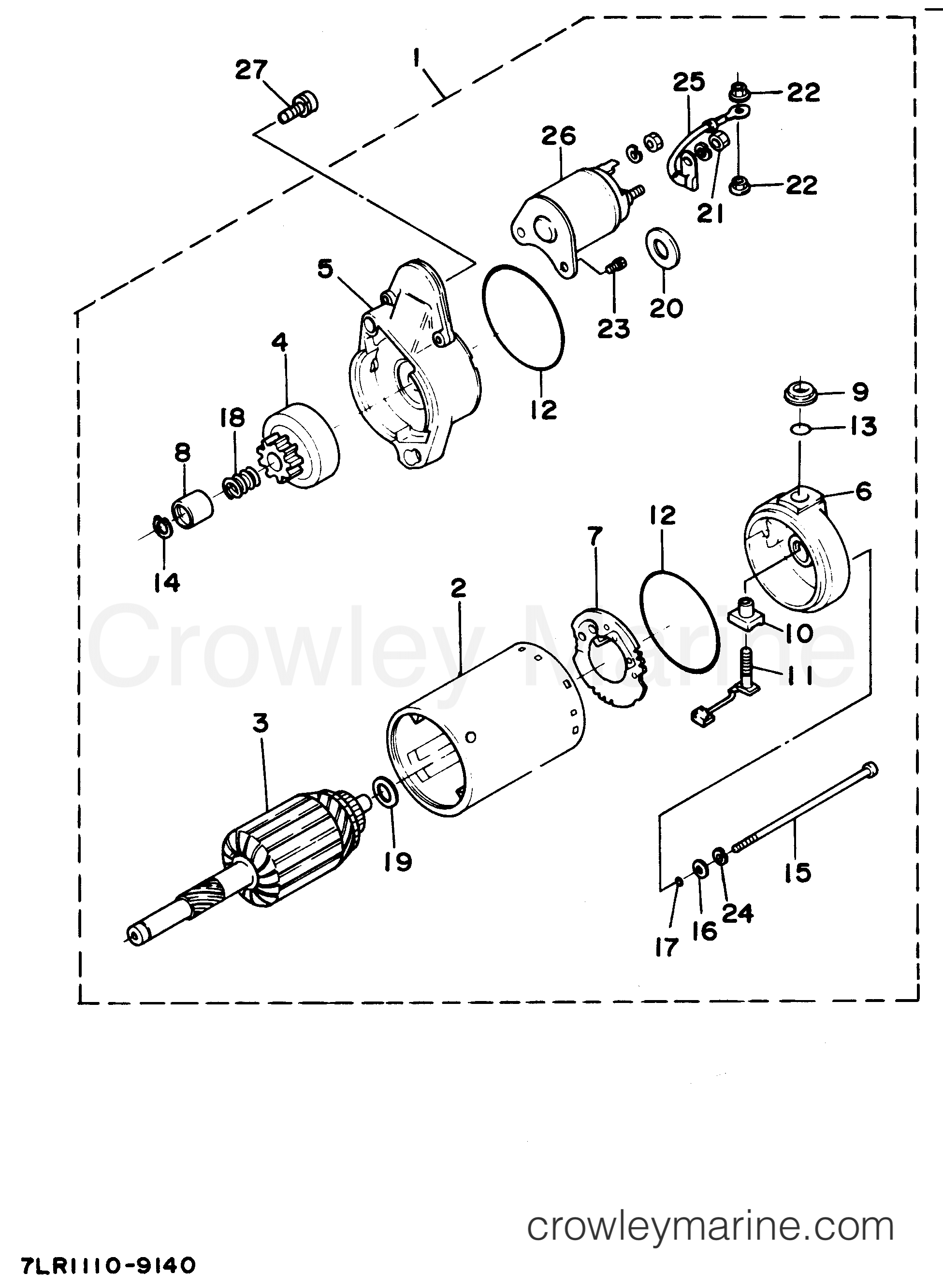

1996 Generator 3800 - EF3800E 7LR STARTING MOTOR (EF3800E) diagram
1
Yamaha Motors
Starter AssemblyYF1-33856-30-13
Required: 1
STARTER ASSEMBLY, CELL (YF1-33856-30-10)
$773.49
You save $136.50
$312.79
You save $55.20
3
Yamaha Motors
ARMATURE ASSEMBLYYF1-22346-30-70
Required: 1
.ARMATURE ASSEMBLY
$246.49
You save $43.50
4
Yamaha Motors
CLUTCH ASSEMBLY, SUB.YF1-22346-30-40
Required: 1
.CLUTCH ASSEMBLY, SUB
$120.69
You save $21.30
5
Yamaha Motors
Housing AssemblyYF1-39686-30-30
Required: 1
.HOUSING ASSEMBLY
$208.24
You save $36.75
6
Yamaha Motors
Frame Assembly[YF-12234-63-45
Required: 1
.FRAME ASSEMBLY
No longer availableSearch Nationwide Inventory
Price unavailable
7
Yamaha Motors
HolderYF1-22346-33-80
Required: 1
.HOLDER ASSEMBLY
$56.94
You save $10.05
8
Yamaha Motors
Pinion Stop NutYF1-22346-34-60
Required: 1
.NUT, PINION STOP
$11.47
You save $2.02
$5.52
You save $0.97
$11.04
You save $1.95
11
Yamaha Motors
Bush SubassemblyYF1-22346-33-62
Required: 1
.BUSH ASSEMBLY, SUB
$10.62
You save $1.87
$8.49
You save $1.50
$2.76
You save $0.49
$1.61
You save $0.28
15
Yamaha Motors
Through boltYF1-22346-33-20
Required: 2
.BOLT, THROUGH
$8.07
You save $1.42
$2.42
You save $0.43
$3.10
You save $0.55
$3.23
You save $0.57
$2.13
You save $0.38
$2.42
You save $0.43
21
Yamaha Motors
NutYF1-41829-20-31
Required: 1
.NUT (YF1-22349-20-10)
$3.23
You save $0.57
$4.21
You save $0.74
$1.57
You save $0.28
24
Yamaha Motors
Spring Washer YF1-22349-41-10
Required: 2
.WASHER, SPRING
$2.13
You save $0.38
25
Yamaha Motors
STARTER WIRE YF1-39686-37-50
Required: 1
.WIRE, STARTER
$24.64
You save $4.35
26
Yamaha Motors
CONTRACTOR ASSEMBLYYF1-22646-30-80
Required: 1
.CONTRACTOR ASSEMBLY
$276.24
You save $48.75
$1.83
You save $0.32
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
