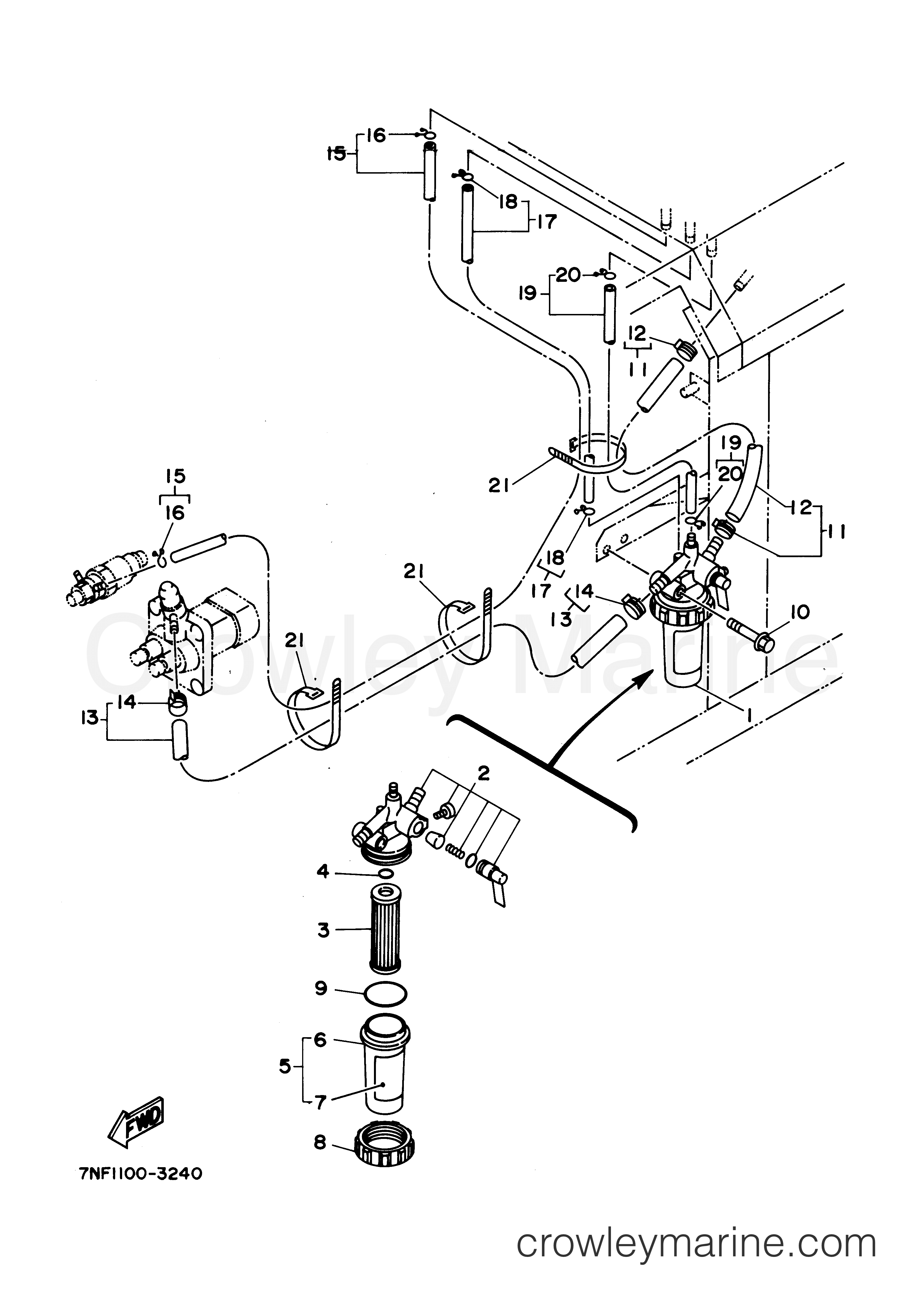

1995 Generator 6500 - EDL6500S2 FUEL FILTER diagram

1
Yamaha Motors
Obsolete Yamaha PartYF1-49714-30-10
Required: 1
FUEL FILTER ASSY
Supersedes: YF1-79094-30-14
$130.04
You save $22.95

2
Yamaha Motors
Obsolete Yamaha PartYF1-49714-30-10
Required: 1
BODY COMP, FILTER (EDL6500)
Supersedes: YF1-49114-35-13
$130.04
You save $22.95

3
Yamaha Motors
Obsolete Yamaha PartYF1-T0214-35-60
Required: 1
ELEMENT ASSY
Supersedes: YF1-52314-35-60
$27.19
You save $4.80

4
Yamaha Motors
Obsolete Yamaha PartYF0-48160-01-00
Required: 1
O-RING, FILTER
Supersedes: YF1-43014-35-71
$2.63
You save $0.47

5
Yamaha Motors
Filter Cup (EDL6500)YF1-79094-30-73
Required: 1
CUP COMP, FILTER (EDL6500)
$18.69
You save $3.30

6
Yamaha Motors
FILTER CAP ASSEMBLYYF1-T0214-35-80
Required: 1
.CAP, FILTER
Supersedes: YF1-53934-35-81
$33.99
You save $6.00

7
Yamaha Motors
Fuel Filter Edl LabelYF1-91648-84-30
Required: 1
.LABEL, FUEL FILTER (EDL6500)
$2.98
You save $0.52

8
Yamaha Motors
Ring RetainerYF1-T0214-35-90
Required: 1
RING,RETAINING
Supersedes: YF1-43014-35-90
$31.44
You save $5.55
$3.27
You save $0.58

10
Yamaha Motors
Flange BoltYF0-17545-08-40
Required: 1
.BOLT, FLANGE
$4.67
You save $0.82

11
Yamaha Motors
Tf Fuel (Edl6500) Pipe AssemblyYF1-89614-25-00
Required: 1
PIPE ASSY, TF FUEL (EDL6500)
$33.99
You save $6.00
$4.67
You save $0.82

13
Yamaha Motors
Pipe AssemblyYF1-89614-25-50
Required: 1
PIPE ASSY, FP FUEL (EDL6500)
$22.94
You save $4.05
$4.67
You save $0.82

15
Yamaha Motors
Return Pipe AssemblyYF1-89614-27-00
Required: 1
PIPE ASSY, RETURN (EDL6500)
$43.34
You save $7.65
$4.67
You save $0.82

17
Yamaha Motors
S Air Vent Edl6500 Pipe AssemblyYF1-89614-27-50
Required: 1
PIPE ASSY, S AIR VENT EDL6500
$27.19
You save $4.80
$4.67
You save $0.82

19
Yamaha Motors
L Air Vent (Edl6500 Pipe AssemblyYF1-89614-28-00
Required: 1
PIPE ASSY, L AIR VENT (EDL6500
$26.34
You save $4.65
$4.67
You save $0.82

21
Yamaha Motors
Binder (Edl6500)YF1-84116-05-70
Required: 3
BINDER (EDL6500)
$3.57
You save $0.63
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
