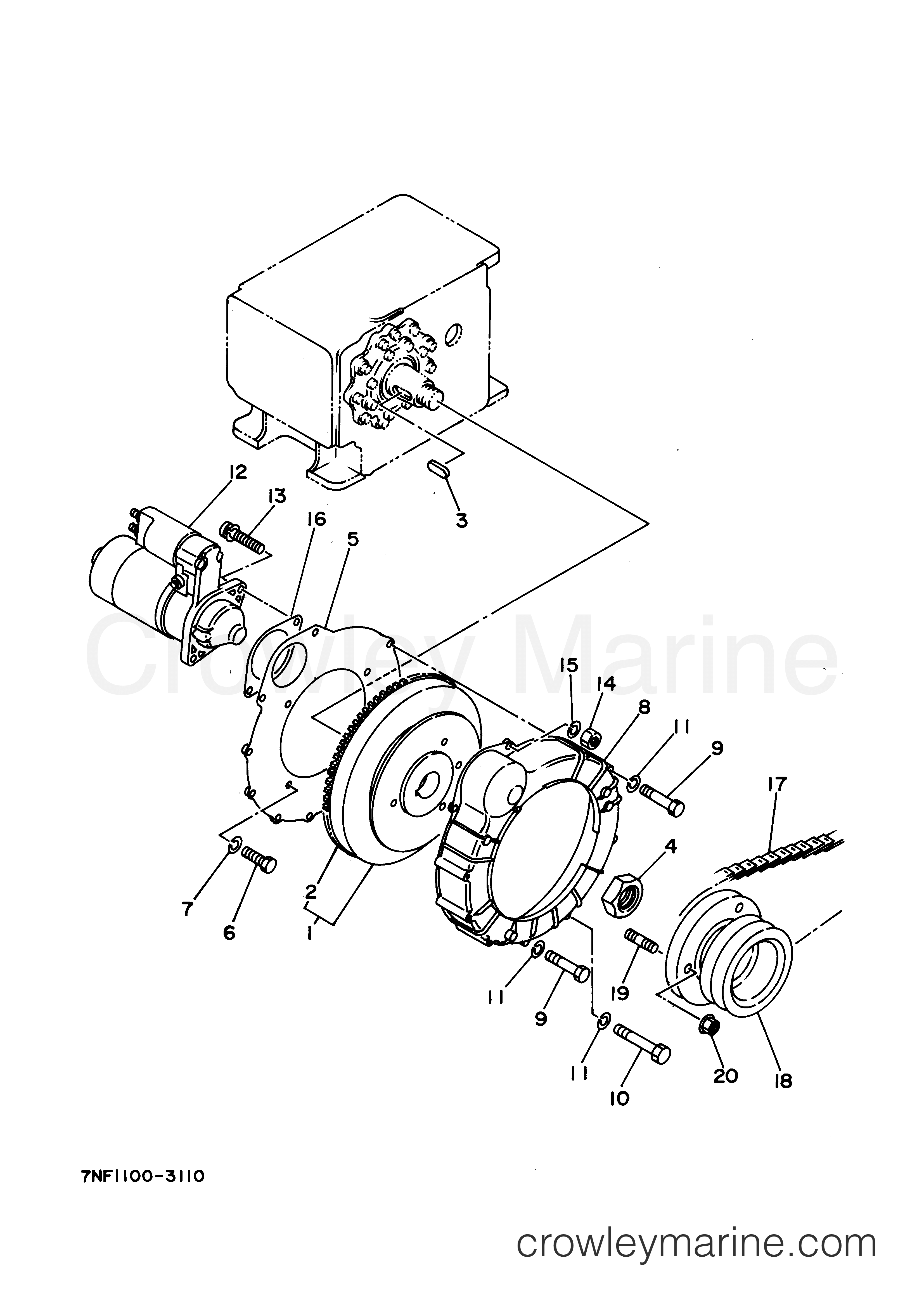

1995 Generator 6500 - EDL6500S2 FLYWHEEL HOUSING diagram

1
Yamaha Motors
Flywheel Comp (Edl6500)YF1-52712-50-10
Required: 1
FLYWHEEL COMP (EDL6500)
$821.94
You save $145.05

2
Yamaha Motors
Ring Gear (Edl6500)YF1-52626-38-20
Required: 1
.GEAR, RING (EDL6500)
$123.24
You save $21.75

3
Yamaha Motors
Feather (Edl6500) KeyYF0-57120-07-25
Required: 1
KEY, FEATHER (EDL6500)
$3.02
You save $0.53

4
Yamaha Motors
Flywheel NutYF1-52712-33-50
Required: 1
NUT, FLYWHEEL (EDL6500)
$46.74
You save $8.25

5
Yamaha Motors
Rear End Plate (Edl6500)YF1-52710-46-20
Required: 1
PLATE, REAR END (EDL6500)
$86.69
You save $15.30
$2.38
You save $0.42

7
Yamaha Motors
Spring Washer92907-08100-00
Required: 4
WASHER, SPRING
Supersedes: YF0-45125-00-80
$8.07
You save $1.42

8
Yamaha Motors
Flywheel CoverYF1-G1222-53-11
Required: 1
COVER, FLYWHEEL (7NF)
$73.64
You save $12.99

9
Yamaha Motors
Bolt (Edl6500)YF0-10535-06-65
Required: 2
BOLT (EDL6500)
$1.78
You save $0.32

10
Yamaha Motors
Bolt (Edl6500)YF0-10535-06-60
Required: 6
BOLT (EDL6500)
$1.61
You save $0.28

11
Yamaha Motors
Spring Washer YK0-45125-00-60
Required: 8
WASHER, SPRING
Supersedes: YF0-45125-00-60
$2.93
You save $0.52

12
Yamaha Motors
Starter Assembly (Edl6500)YF1-57416-30-10
Required: 1
STARTER ASSY (EDL6500)
$1225.69
You save $216.30

13
Yamaha Motors
Bolt (Edl6500)YF0-11535-08-40
Required: 2
BOLT (EDL6500)
$1.02
You save $0.18
$0.94
You save $0.17

15
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: YF0-45125-00-80
$8.07
You save $1.42

16
Yamaha Motors
ShimYF1-52716-35-80
Required: 1
SHIM (EDL6500)
$14.02
You save $2.47

17
Yamaha Motors
Endless No105 BeltYF1-43849-70-10
Required: 1
BELT, ENDLESS NO105 (EDL6500)
$169.99
You save $30.00

18
Yamaha Motors
V 150 (Edl6500) PulleyYF1-43868-40-20
Required: 1
PULLEY, V 150 (EDL6500)
$234.59
You save $41.40

18
Yamaha Motors
V 150 (Edl6500) PulleyYF1-43848-40-20
Required: 1
PULLEY, V 150 (EDL6500)
$237.14
You save $41.85

19
Yamaha Motors
Obsolete Yamaha PartYF0-15176-10-30
Required: 3
STUD (EDL6500)
Supersedes: YF0-15175-10-30
$2.08
You save $0.37
$0.64
You save $0.11
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
