All diagrams for this model

1995 Generator 6500 - EDL6500S2 ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

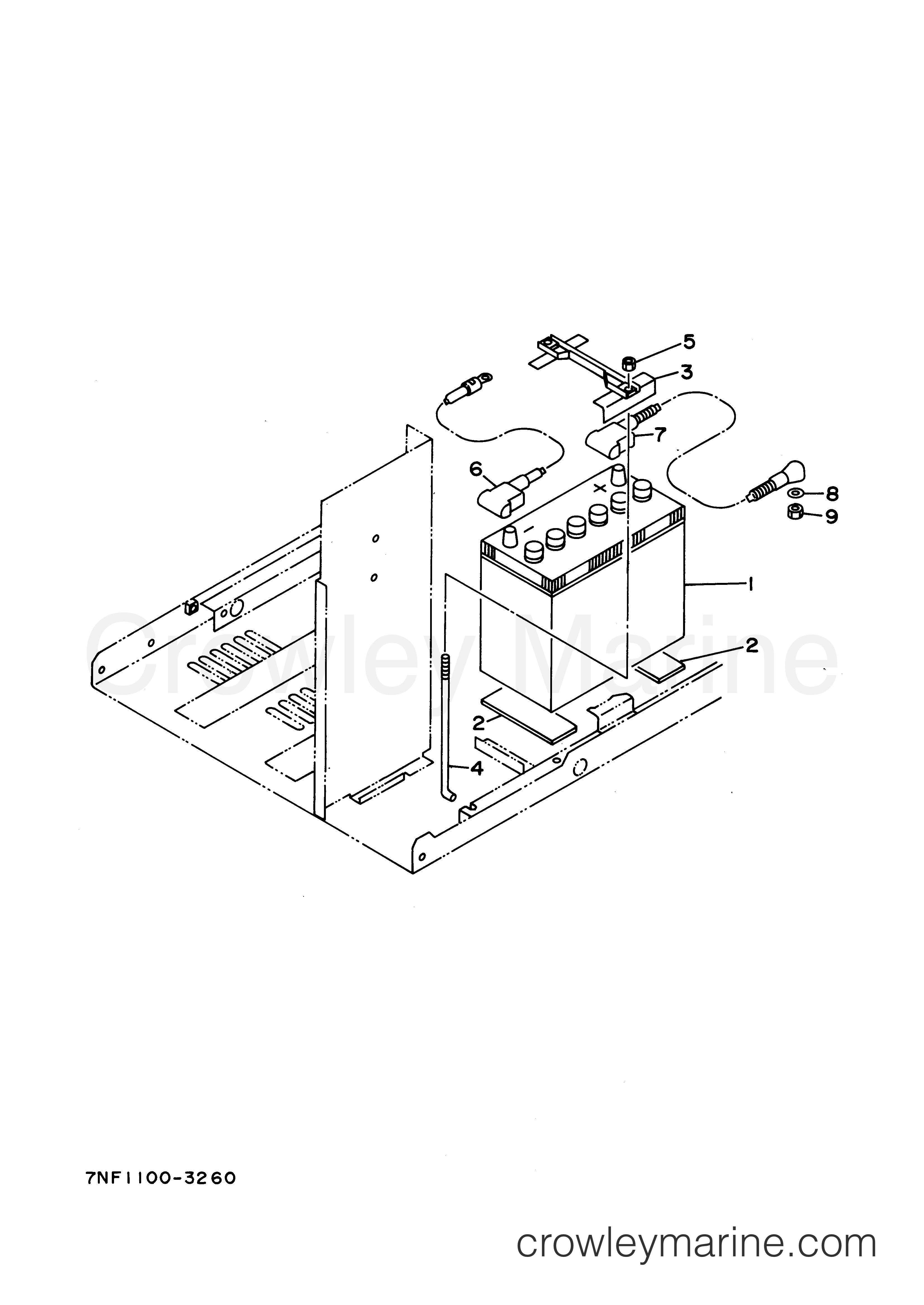

Yamaha Motors EDL6500S2 - ELECTRICAL 2
Change View:
DRY BATTERY (46B24R) (EDL6500)
1
Yamaha Motors
DRY BATTERY (46B24R) (EDL6500)YF1-69333-31-00
Required: 1
BATTERY, DRY (46B24R) (EDL6500
Cross Ship
Leaves in 2-5 days
$310.99
$264.34
You save $46.65
More details
Battery Cushion (Edl6500)
2
Yamaha Motors
Battery Cushion (Edl6500)YF1-89013-12-00
Required: 2
CUSHION, BATTERY (EDL6500)
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Battery Retainer (EDL6500)
3
Yamaha Motors
Battery Retainer (EDL6500)YF1-89613-32-70
Required: 1
RETAINER, BATTERY (EDL6500)
Cross Ship
Leaves in 2-5 days
$44.99
$38.24
You save $6.75
More details
BATTERY (EDL6500) BOLT
4
Yamaha Motors
BATTERY (EDL6500) BOLTYF1-89613-32-90
Required: 1
BOLT, BATTERY (EDL6500)
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
Earth (Edl6500) Cord
6
Yamaha Motors
Earth (Edl6500) CordYF1-89614-17-20
Required: 1
CORD, EARTH (EDL6500)
Cross Ship
Leaves in 2-5 days
$77.99
$66.29
You save $11.70
More details
BATTERY CHORD ()
7
Yamaha Motors
BATTERY CHORD ()YF1-89616-55-60
Required: 1
CORD, BATTERY (EDL6500)
Cross Ship
Leaves in 2-5 days
$55.92
$47.53
You save $8.39
More details
Spring Washer
8
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
Supersedes: YF0-45125-00-80
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Nut
9
Yamaha Motors
NutYF0-20565-00-80
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$0.40
$0.92
You save $-0.52
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
