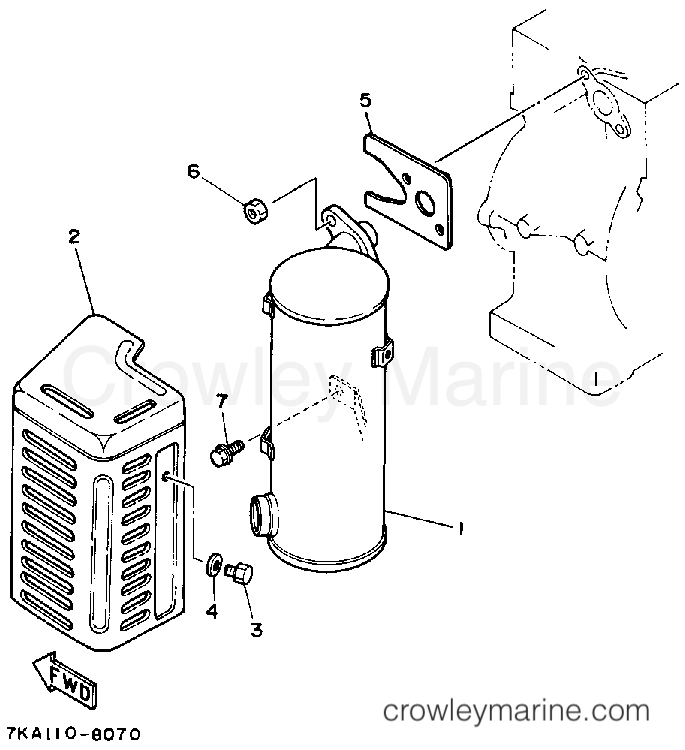

1988 Generator 624 - YS624TM EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Muffler7KA-14711-00-00

Required: 1

MUFFLER 1

~~$162.99~~

$138.54

You save $24.45

More details

Yamaha Motors

Muffler Protector 17KA-14718-00-00

Required: 1

PROTECTOR, MUFF 1

~~$57.99~~

$49.29

You save $8.70

BOLT (97006-06010-00)

Supersedes: 97026-06010-00

~~$4.05~~

$3.44

You save $0.61

More details

Yamaha Motors

Plate Washer92907-06600-00

Required: 3

WASHER

Supersedes: 92906-06600-00

In stock

5+ in stock

~~$1.00~~

$0.85

You save $0.15

More details

Yamaha Motors

Exaust Pipe Gasket79T-14613-20-00

Required: 1

GASKET, EXAUST PIPE

~~$7.49~~

$6.37

You save $1.12

NUT

In stock

Only 1 remaining

~~$8.49~~

$7.22

You save $1.27

More details

Yamaha Motors

Flange Bolt95812-06012-00

Required: 1

BOLT, FLANGE

Supersedes: 95811-06012-00

~~$1.15~~

$0.98

You save $0.17

More details
