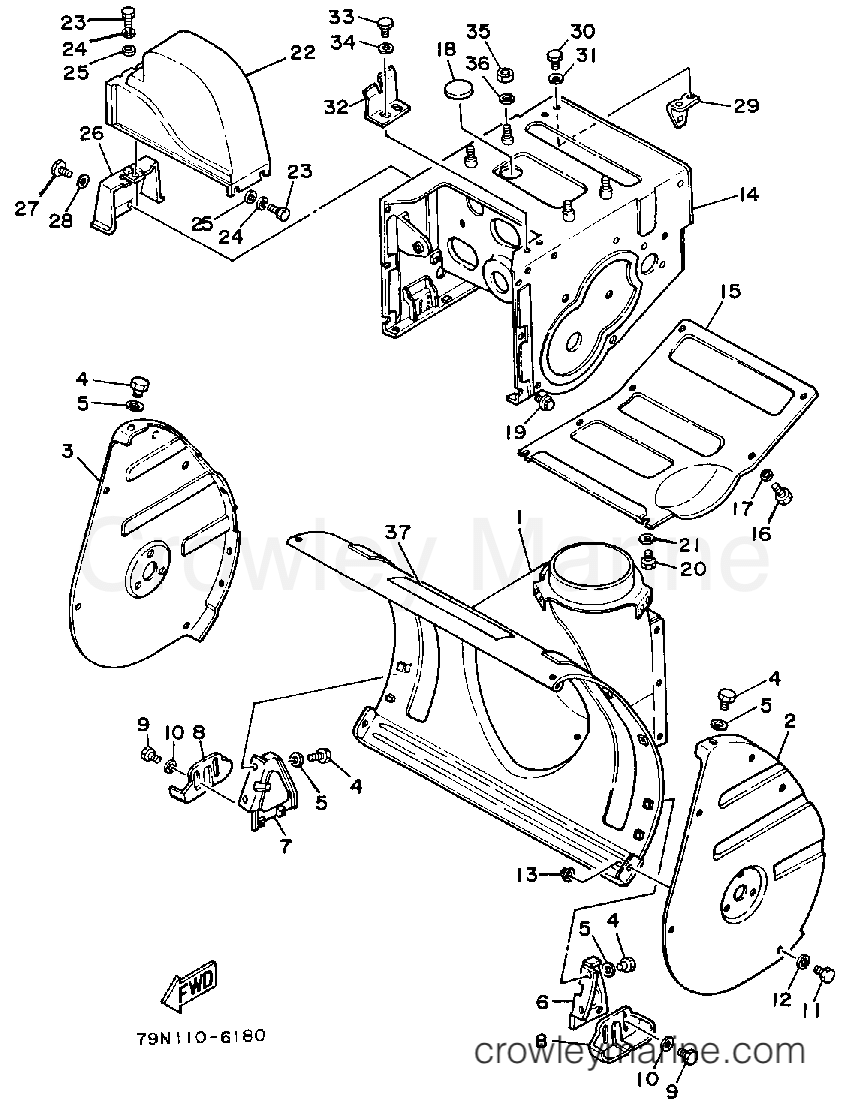

1987 Generator 624 - YS624T BODY (~79N-700100) diagram
1
Yamaha Motors
Auger Housing79N-51511-01-86
Required: 1
HOUSING, AUGER
$288.14
You save $50.85
2
Yamaha Motors
Panel (Auger Side 1)79N-51512-00-86
Required: 1
PANEL, AUGER SIDE 1
$46.79
You save $8.26
3
Yamaha Motors
Panel (Auger Side 2)79N-51513-00-86
Required: 1
PANEL, AUGER SIDE 2
$34.84
You save $6.15
4
Yamaha Motors
.BOLT97313-06012-00
Required: 8
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32
5
Yamaha Motors
Plate Washer92990-06600-00
Required: 8
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 1 remaining
$10.62
You save $1.87
$14.87
You save $2.62
In stock
Only 1 remaining
$38.24
You save $6.75
9
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 6
BOLT, HEXAGON
Supersedes: 97313-06016-00
$2.35
You save $0.41
10
Yamaha Motors
Plate Washer92990-06600-00
Required: 6
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
11
Yamaha Motors
Flange Bolt95817-08016-00
Required: 2
BOLT, FLANGE
Supersedes: 95811-08016-00
$4.67
You save $0.82
12
Yamaha Motors
Flange Nut95704-08500-00
Required: 2
NUT, FLANGE (95702-08500-00)
Supersedes: 95701-08500-00
In stock
Only 5 remaining
$8.07
You save $1.42
13
Yamaha Motors
Washer Plate 8AT90201-081R9-00
Required: 2
WASHER, PLATE
Supersedes: 90201-08753-00
$8.92
You save $1.57
$103.69
You save $18.30
$23.79
You save $4.20
$20.03
You save $3.54
16
Yamaha Motors
.BOLT97313-06012-00
Required: 5
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 5
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
$5.52
You save $0.97
19
Yamaha Motors
Flange Bolt95817-08012-00
Required: 6
BOLT, FLANGE (95801-08012-00)
Supersedes: 95811-08012-00
In stock
Only 1 remaining
$4.67
You save $0.82
20
Yamaha Motors
.BOLT97313-06012-00
Required: 2
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32
21
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
$116.44
You save $20.55
23
Yamaha Motors
.BOLT97313-06012-00
Required: 3
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32
24
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
25
Yamaha Motors
Plain Washer90201-06020-00
Required: 3
WASHER, PLATE
Supersedes: 90201-065F3-00
In stock
Only 1 remaining
$8.92
You save $1.57
$8.07
You save $1.42
27
Yamaha Motors
Bolt97017-06010-00
Required: 2
BOLT
Supersedes: 97011-06010-00
$3.44
You save $0.61
28
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
$6.37
You save $1.12
30
Yamaha Motors
.BOLT97313-06012-00
Required: 2
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32
31
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
$6.37
You save $1.12
33
Yamaha Motors
.BOLT97313-06012-00
Required: 2
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32
34
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
35
Yamaha Motors
Flange Nut95704-08500-00
Required: 4
NUT, FLANGE (95702-08500-00)
Supersedes: 95701-08500-00
In stock
Only 5 remaining
$8.07
You save $1.42
36
Yamaha Motors
Warning Label7LY-51781-20-00
Required: 1
LABEL, WARNING 1
$19.54
You save $3.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
