All diagrams for this model

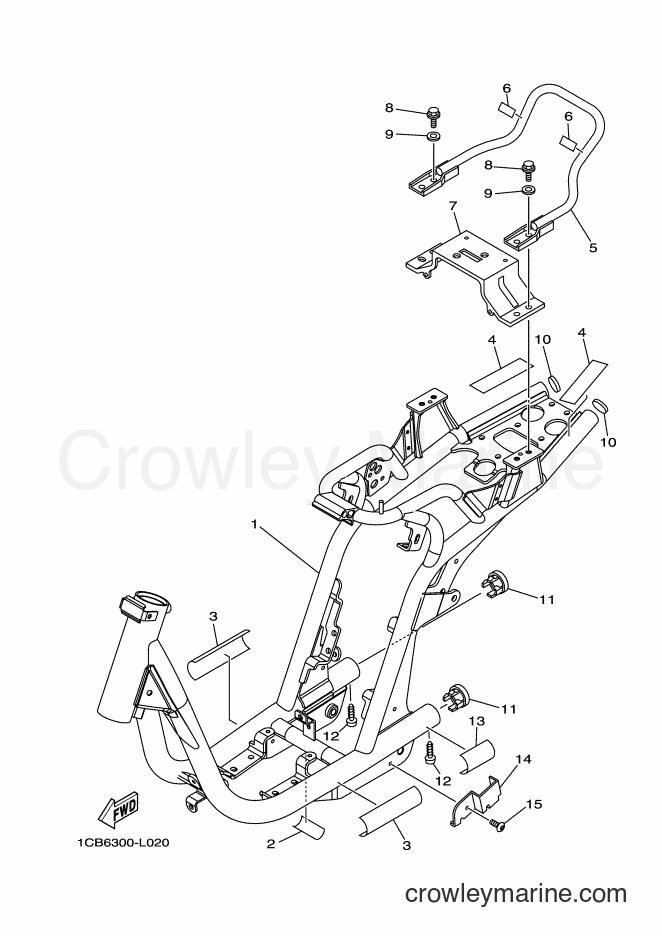

2012 Electric Scooter ED06 - ED06 (1CB7) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors ED06 (1CB7) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
Seal 1
2
Yamaha Motors
Seal 13SP-21732-00-00
Required: 1
SEAL 1
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
3
Required: 2
SEAL
Price unavailable
4
Required: 2
DAMPER, PLATE
Price unavailable
5
Required: 1
HANDLE, STANDING
Price unavailable
6
Required: 2
SEAL 1
Price unavailable
7
Required: 1
BRACKET, SEAT LOCK
Price unavailable
Socket Bolt
8
Yamaha Motors
Socket Bolt91317-08025-00
Required: 4
BOLT
Supersedes: 91312-08025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 2
COVER 2
Price unavailable
11
Required: 2
CAP
Price unavailable
Tapping Screw
12
Yamaha Motors
Tapping Screw97707-30512-00
Required: 2
SCREW, TAPPING
Supersedes: 97707-30112-00
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
13
Required: 1
LABEL
Price unavailable
13
Required: 1
LABEL
Price unavailable
14
Required: 1
COVER, THRUST 2
Price unavailable
15
Required: 1
SCREW
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
