All diagrams for this model

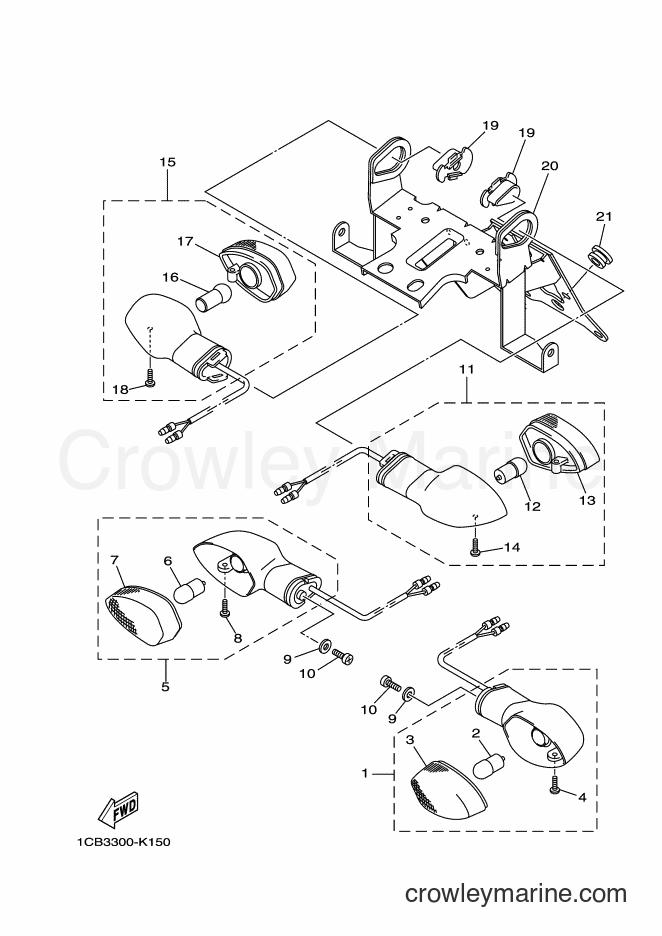

2012 Electric Scooter ED06 - ED06 (1CB7) [010] FLASHER LIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors ED06 (1CB7) [010] - FLASHER LIGHT
Change View:
1
Required: 1
FRONT FLASHER LIGHT ASSY 1
Price unavailable
2
Required: 1
. BULB, FLASHER (12V-10W)
Price unavailable
3
Required: 1
. LENS COMP 1
Price unavailable
4
Required: 1
. SCREW, LENS FITTING
Price unavailable
5
Required: 1
FRONT FLASHER LIGHT ASSY 2
Price unavailable
6
Required: 1
. BULB, FLASHER (12V-10W)
Price unavailable
7
Required: 1
. LENS COMP 2
Price unavailable
8
Required: 1
. SCREW, LENS FITTING
Price unavailable
Plate Washer
9
Yamaha Motors
Plate Washer90201-05725-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Socket Bolt
10
Yamaha Motors
Socket Bolt98907-05016-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
REAR FLASHER LIGHT ASSY 1
Price unavailable
12
Required: 1
. BULB, FLASHER (12V-10W)
Price unavailable
13
Required: 1
. LENS COMP 2
Price unavailable
14
Required: 1
. SCREW, LENS FITTING
Price unavailable
15
Required: 1
REAR FLASHER LIGHT ASSY 2
Price unavailable
16
Required: 1
. BULB, FLASHER (12V-10W)
Price unavailable
17
Required: 1
. LENS COMP 1
Price unavailable
18
Required: 1
. SCREW, LENS FITTING
Price unavailable
FLASHER STAY 1
19
Yamaha Motors
FLASHER STAY 15PW-83318-00-00
Required: 2
STAY, FLASHER 1
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
20
Required: 1
BRACKET, LICENSE
Price unavailable
Grommet
21
Yamaha Motors
Grommet90480-12M25-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
