All diagrams for this model

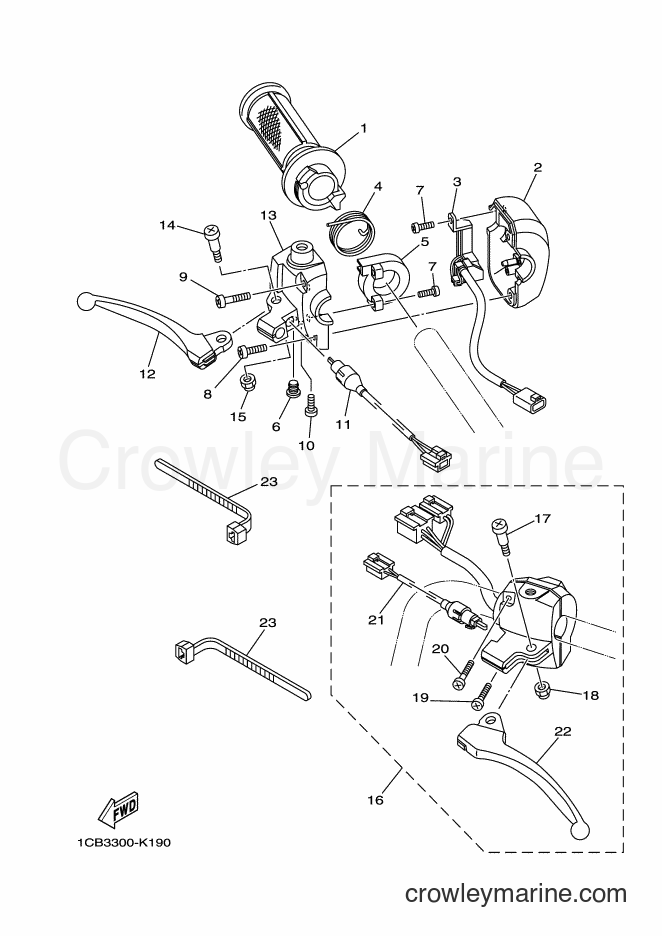

2012 Electric Scooter ED06 - ED06 (1CB4) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors ED06 (1CB4) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
GRIP ASSY
Price unavailable
2
Required: 1
HOLDER, LEVER UPPER 1
Price unavailable
3
Required: 1
HOLDER COMP.
Price unavailable
4
Required: 1
SPRING, BRUSH
Price unavailable
5
Required: 1
HOLDER, SPRING
Price unavailable
Plug
6
Yamaha Motors
Plug90338-10150-00
Required: 1
PLUG
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Socket Bolt
7
Yamaha Motors
Socket Bolt98907-03010-00
Required: 5
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$0.20
$0.26
You save $-0.06
More details
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-05020-00
Cross Ship
Leaves in 2-5 days
$1.75
$3.15
You save $-1.40
More details
Pan Head Screw
9
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-05030-00
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
11
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
12
Required: 1
LEVER 2
Price unavailable
13
Required: 1
HOLDER, LEVER LOWER 1
Price unavailable
SPECIAL SHAPE SCREW
14
Yamaha Motors
SPECIAL SHAPE SCREW90149-06175-00
Required: 1
SCREW
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
FLANGE NUT (4GB)
15
Yamaha Motors
FLANGE NUT (4GB)95707-05300-00
Required: 1
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
16
Required: 1
LEVER HOLDER ASSY (LEFT)
Price unavailable
SPECIAL SHAPE SCREW
17
Yamaha Motors
SPECIAL SHAPE SCREW90149-06175-00
Required: 1
. SCREW
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
FLANGE NUT (4GB)
18
Yamaha Motors
FLANGE NUT (4GB)95707-05300-00
Required: 1
. NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
Pan Head Screw
19
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98507-05020-00
Cross Ship
Leaves in 2-5 days
$1.75
$3.15
You save $-1.40
More details
Pan Head Screw
20
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98507-05030-00
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
21
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
22
Required: 1
. LEVER 1
Price unavailable
Clamp
23
Yamaha Motors
Clamp90464-25004-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
