All diagrams for this model

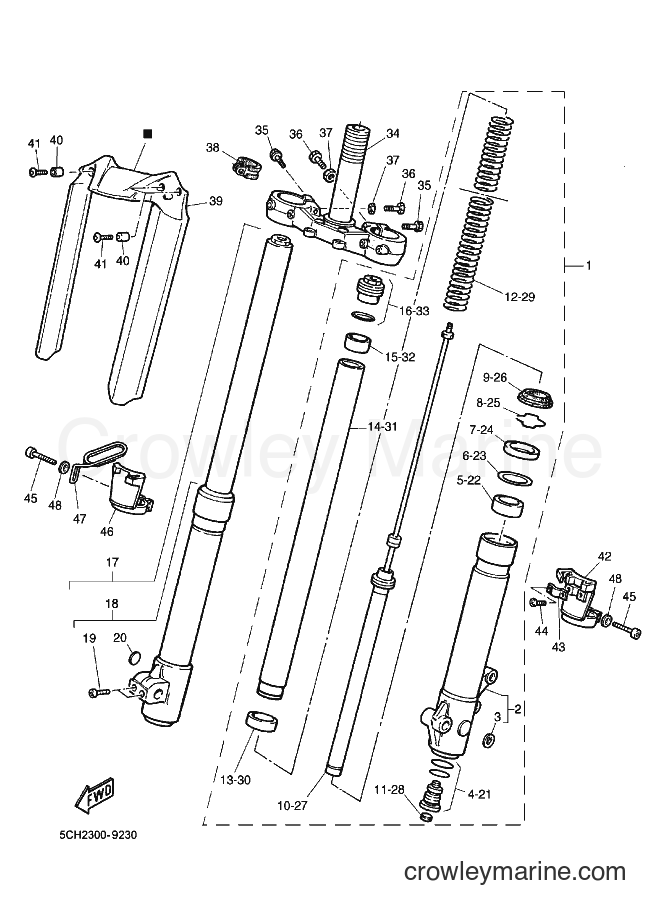

2000 Dirt Bike TT600R - TT600R (5CH3) [010] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TT600R (5CH3) [010] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
3
Required: 1
. EMBLEM
Price unavailable
4
Required: 1
. VALVE COMP.
Price unavailable
6
Required: 1
. WASHER, OIL SEAL
Price unavailable
7
Required: 1
. OIL SEAL
Price unavailable
8
Required: 1
. RING, SNAP
Price unavailable
9
Required: 1
. SEAL, DUST
Price unavailable
10
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
11
Required: 1
. PLUG
Price unavailable
12
Required: 1
. SPRING, FRONT FORK
Price unavailable
13
Required: 1
. METAL, SLIDE 2
Price unavailable
14
Required: 1
. INNER TUBE COMP.1
Price unavailable
15
Required: 1
. SPACER
Price unavailable
16
Required: 1
. BOLT, CAP
Price unavailable
17
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
18
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
19
Required: 2
. BOLT
Price unavailable
20
Required: 1
. EMBLEM
Price unavailable
21
Required: 1
. VALVE COMP.
Price unavailable
22
Required: 1
. METAL, SLIDE 1
Price unavailable
23
Required: 1
. WASHER, OIL SEAL
Price unavailable
24
Required: 1
. OIL SEAL
Price unavailable
25
Required: 1
. RING, SNAP
Price unavailable
26
Required: 1
. SEAL, DUST
Price unavailable
27
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
28
Required: 1
. PLUG
Price unavailable
29
Required: 1
. SPRING, FRONT FORK
Price unavailable
30
Required: 1
. METAL, SLIDE 2
Price unavailable
31
Required: 1
. INNER TUBE COMP.1
Price unavailable
32
Required: 1
. SPACER
Price unavailable
33
Required: 1
. BOLT, CAP
Price unavailable
34
Required: 1
UNDER BRACKET COMP.
Price unavailable
35
Required: 4
BOLT, FLANGE
Price unavailable
Bolt
36
Yamaha Motors
Bolt97017-08016-00
Required: 2
BOLT
Supersedes: 9701L-08016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Nut
37
Yamaha Motors
Nut95337-08600-00
Required: 2
NUT
Supersedes: 9531L-08600-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
38
Required: 1
GUIDE, CABLE
Price unavailable
39
Required: 1
PROTECTOR
Price unavailable
40
Required: 4
COLLAR
Price unavailable
41
Required: 4
SCREW, PAN HEAD
Price unavailable
42
Required: 1
PROTECTER GUIDE COMP., 1
Price unavailable
43
Required: 1
COVER, HOSE
Price unavailable
44
Required: 2
SCREW, PAN HEAD
Price unavailable
45
Required: 4
BOLT
Price unavailable
46
Required: 1
PROTECTER GUIDE COMP., 2
Price unavailable
47
Required: 1
HOLDER, CABLE 1
Price unavailable
48
Required: 4
WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
